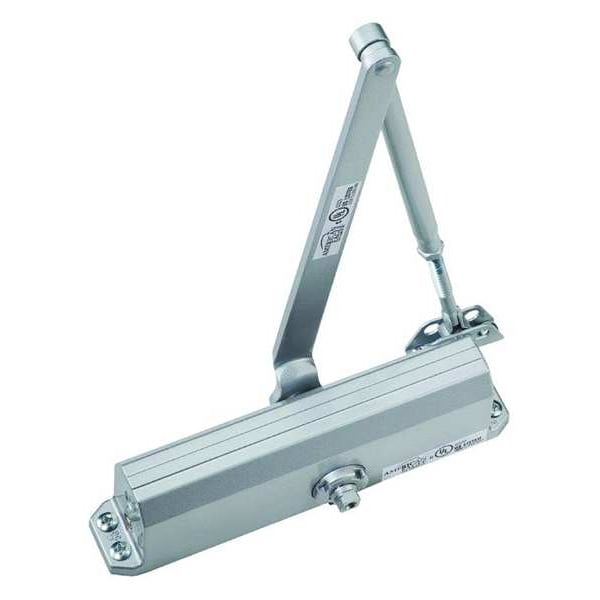

Manual, Hydraulic, PDQ 3100, Light Commercial Closer, Light Duty Interior and Exterior, Gray
| Item | Light Commercial Closer |
|---|---|
| Closer Mounting Style | Parallel, Regular, Top Frame |
| Closer Performance | Light Duty |
| Closer Series | PDQ 3100 |
| Closer Type | Non Hold Open |
| Color | Gray |
| Finish | Aluminum Painted |
| Hand Orientation | Non-Handed |
| Housing Depth | 2 in |
| Housing Height | 1-7/8 in |
| Housing Length | 9-3/4 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual |
| Material | Aluminum |
| Max. Door Opening | 180 Degrees |
| Arm Material | Cast Iron |
| Standards | UL 228 Listed; ANSI/UL 10C; ANSI/BHMA A156.4-2006; Grade 1; ADA; ICC/ANSI 117.1 |
| ADA Compliant | Yes |
| Mounting Hardware | Included |
| Ligature Resistant | No |
| Arm Type | Parallel |
| Category Type | Parallel Arm |
| Series | 3100 |
| Door Handing | Non-Handed |
| For Use With | Commercial Doors |
| Mounting Style | Surface Mounted |
| Closer Cycles | 2,000,000 |
| Exterior Door Width - Maximum | 36 in |
| Stop Type | Compression |
| Fire Rating | 3 hr |
| Includes Hardware | Hardware Included |
| Performance Grade | 3 |
| ANSI/BHMA Finish | Aluminum Painted |
| Compatible Brand | LCN |
| Interior/Exterior Use | Interior, Exterior |
| Spring Type | Adjustable |
| Door Opening - Maximum | 180 deg |
| Compatible Series | 1260 |
| Spring Size - Minimum | 3 |
| Interior Door Width - Maximum | 42 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Product Type | Door Closer |
| Compatible Manufacturer Model Number | Not Applicable |
| Spring Size - Maximum | 4 |
| Operation Style | Manual |
| Height Between Mounting Holes | 3/4 in |
| Length Between Mounting Holes | 9-1/16 in |
| Country of Origin (subject to change) | Korea, Republic of |
| Package Quantity | 1 |
