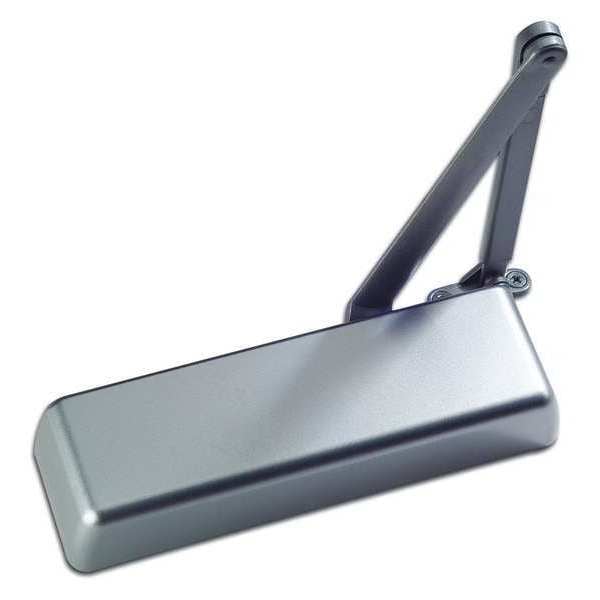

Manual, Hydraulic, PDQ 7100, Institutional Full Featured Closer, Heavy Duty Interior and Exterior
| Item | Institutional Full Featured Closer |
|---|---|
| Closer Mounting Style | Parallel, Regular, Top Frame |
| Closer Performance | Heavy Duty |
| Closer Series | PDQ 7100 |
| Closer Type | Non Hold Open |
| Color | Gray |
| Finish | Natural |
| Hand Orientation | Non-Handed |
| Housing Depth | 2-1/4 in |
| Housing Height | 3-1/2 in |
| Housing Length | 12-1/4 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual |
| Material | Cast Iron |
| Standards | UL 228 Listed; ANSI/UL 10C; ANSI/BHMA A156.4-2006; Grade 1; ADA; ICC/ANSI 117.1 |
| Spring Size | Adjustable BF - 6 |
| Max. Door Opening | 180 Degrees |
| Ligature Resistant | No |
| Arm Material | Forged and Stamped Steel |
| Mounting Hardware | Included |
| ADA Compliant | Yes |
| Arm Type | Parallel |
| Category Type | Parallel Arm |
| Door Handing | Non-Handed |
| Series | 7100 |
| For Use With | Commercial Doors |
| Mounting Style | Surface Mounted |
| Compatible Series | 4040 |
| Stop Type | Compression |
| Operation Style | Manual |
| Interior Door Width - Maximum | 54 in |
| Spring Type | Adjustable |
| Interior/Exterior Use | Interior, Exterior |
| Includes Hardware | Hardware Included |
| Fire Rating | 3 hr |
| Exterior Door Width - Maximum | 48 in |
| Compatible Brand | LCN |
| Closer Cycles | 2,000,000 |
| Height Between Mounting Holes | 2-1/4 in |
| Length Between Mounting Holes | 1 in, 3 in |
| ANSI/BHMA Finish | Aluminum Painted |
| Product Type | Door Closer |
| Door Opening - Maximum | 180 deg |
| Compatible Manufacturer Model Number | Not Applicable |
| Ligature-Resistant | Not Ligature-Resistant |
| Spring Size - Minimum | 1 |
| Performance Grade | 1 |
| Spring Size - Maximum | 6 |
| Country of Origin (subject to change) | Korea, Republic of |
| Package Quantity | 1 |
