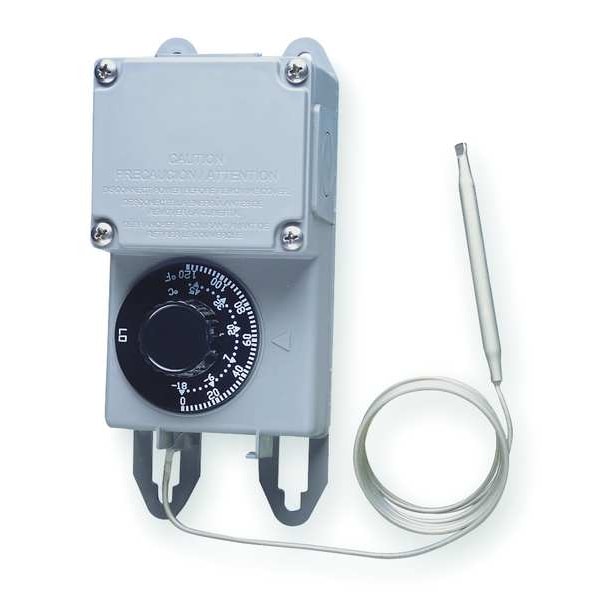

Line Volt Mechanical Tstat, Open on Rise, Indoor/Outdoor, 0 Degrees to 120 Degrees F, SPDT
| Switch Action | Open on Rise |
|---|---|
| Voltage | 120 to 277V AC |
| Sensor Type | Hydraulic Capillary Bulb (Stainless Steel) |
| Differential | 3 Degrees F |
| Thermostat Control Range | 0 to 120 deg F |
| Mounting Location | Indoor, Outdoor |
| Switch Type | SPDT |
| Color | Gray |
| Width | 3-1/16 in |
| Height | 6-3/8 in |
| Number of Switches | 1 |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Contact Rating Resistive @ 120V | 25 A |
| Temp. Sensitivity | +/-6 deg F |
| Contact Rating Resistive @ 277V | 20 A |
| Mounting Type | Surface |
| Item | Line Volt Mechanical Tstat |
| Enclosure Type | Rain Tight NEMA 4X |
| Capillary Length | 60 in |
| Depth | 2-3/8 in |
| Sensing Bulb Length | 2-5/16 in |
| Control Range | 0 to 120 deg F |
| Thermostat Programmable | No |
| Remote Sensing Capability | Yes |
| Inductive Amps @ 240V | 12 A |
| Locked Rotor Amps @ 120V | 80 A |
| Locked Rotor Amps @ 240V | 60 A |
| Resistive Amps @ 208VAC | 25 A |
| Thermostat Heating/Cooling | Heating, Cooling |
| Pilot Duty Contacts (VA) | 125 VA |
| Full Load Amps @ 240VAC | 12 A |
| Contact Rating Resistive @ 240V | 25 A |
| Thermostat Switch Type | SPDT |
| Inductive Amps @ 120V | 16 A |
| Standards | CSA Certified, NEC 547, UL Listed |
| Sensing Bulb Dia. | 5/16 in |
| Thermostat Voltage | 24, 120 to 277V AC |
| Full Load Amps @ 120VAC | 15 A |
| Remote Sensing Bulb Included | Yes |
| Mounting | Wall |
| Application | Heat or Cool |
| For Use With | Agricultural, Commercial and Industrial Applications |
| Thermostat Type | Weatherproof Single-Stage Controls |
| Control Type | Exposed Dial |
| Features | Rain Tight NEMA 4X Enclosure |
| Contact Rating | 120 to 277V AC |
| Compatible System Type | Dampers, Fans, Heat Trace, Heaters |
| Capillary Length/Bulb Diameter | 5 ft Capillary, 2 5/16 in x 5/16 in Bulb |
| Enclosure Color | Gray |
| Minimum Operating Temperature | -30 deg F |
| Minimum Control Temperature | 0 deg F |
| Overall Depth | 2-1/2 in |
| Switch Type/Action | Open, SPDT on Rise |
| Bulb Diameter | 3/8 in |
| Sensor Location | Remote |
| Temperature Sensitivity | +/-6 deg F |
| Stages | 1H, 1C |
| Overall Height | 6-3/8 in |
| Maximum Operating Temperature | 140 deg F |
| Enclosure Material | Plastic |
| Number of Cooling Stages | 1 |
| Number of Poles | 1 |
| Pilot Duty Rating | 125 VA @ 120 to 277V AC |
| Full Load Amps @ 120V AC | 15 A |
| Changeover Type | Automatic |
| Number of Heating Stages | 1 |
| Differential Type | Fixed |
| Overall Width | 3-1/8 in |
| Temperature Scale | Fahrenheit |
| Temperature Control Range | 0 to 120 deg F |
| Bulb Length | 2-3/8 in |
| Enclosure NEMA Rating | 4X |
| Resistive Amps @ 208V AC | 25 A |
| Full Load Amps @ 240V AC | 12 A |
| Maximum Control Temperature | 120 deg F |
| Temperature Differential | 3 Degrees F |
| Operating Temperature Range | -30 to 140 deg F |
| Country of Origin (subject to change) | Korea, Republic of |
| Package Quantity | 1 |
