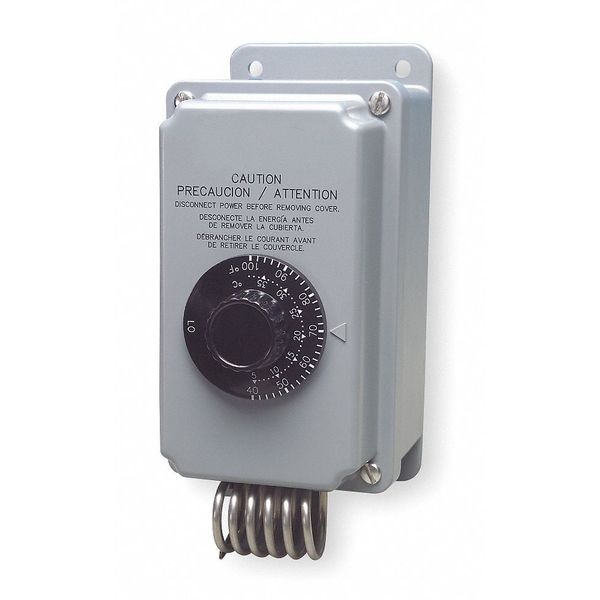

Line Volt Mechanical Tstat, Open/Close on Rise, Indoor/Outdoor, 40 Degrees to 100 Degrees F, SPDT
| Switch Action | Open/Close on Rise |
|---|---|
| Voltage | 120 to 277V AC |
| Sensor Type | Hydraulic Air Coil |
| Differential | 3 Degrees F |
| Thermostat Control Range | 40 to 100 deg F |
| Mounting Location | Indoor, Outdoor |
| Switch Type | (2) SPDT |
| Color | Gray |
| Width | 3-1/2 in |
| Height | 7-1/3 in |
| Item | Line Volt Mechanical Tstat |
| Thermostat Voltage | 24, 120 to 277V AC |
| Number of Switches | 2 |
| Contact Rating Resistive @ 120V | 25 A |
| Remote Sensing Capability | No |
| Contact Rating Resistive @ 240V | 25 A |
| Locked Rotor Amps @ 240V | 60 A |
| Sensing Bulb Dia. | 1-1/4 in |
| Full Load Amps @ 240VAC | 12 A |
| Temp. Sensitivity | +/-3 deg F |
| Thermostat Programmable | No |
| Pilot Duty Contacts (VA) | 125 VA |
| Standards | CSA Certified, NEC 547, UL Listed |
| Remote Sensing Bulb Included | No |
| Mounting Type | Surface |
| Contact Rating Resistive @ 277V | 25 A |
| Enclosure Type | Rain Tight NEMA 4X, (2) Piece Molded Plastic |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Depth | 4-7/8 in |
| Control Range | 40 to 100 deg F |
| Resistive Amps @ 208VAC | 25 A |
| Includes | Oversized Enclosures to Accommodate Internally Mounted Relays or Terminal Blocks |
| Locked Rotor Amps @ 120V | 80 A |
| Full Load Amps @ 120VAC | 16 A |
| Thermostat Heating/Cooling | Heating, Cooling |
| Thermostat Switch Type | SPDT |
| Thermostat Type | Line Voltage |
| Application | Heat or Cool |
| Switch Type/Action | Open, Close, SPDT on Rise |
| Number of Cooling Stages | 2 |
| Sensor Diameter | 1-1/4 in |
| Maximum Control Temperature | 100 deg F |
| Enclosure Color | Gray |
| Temperature Differential | 3 Degrees F |
| Enclosure Material | Plastic |
| Full Load Amps @ 240V AC | 12 A |
| Overall Width | 3-1/2 in |
| Enclosure NEMA Rating | 4X |
| Number of Poles | 1 |
| Overall Depth | 5 in |
| Full Load Amps @ 120V AC | 16 A |
| Minimum Operating Temperature | 40 deg F |
| Number of Heating Stages | 2 |
| Minimum Control Temperature | 40 deg F |
| Overall Height | 7-5/16 in |
| Operating Temperature Range | 40 to 100 deg F |
| Temperature Scale | Fahrenheit, Celsius |
| Differential Type | Fixed |
| Stages | 2C, 2H |
| Pilot Duty Rating | 125VA @ 120 to 277V AC |
| Maximum Operating Temperature | 100 deg F |
| Temperature Sensitivity | +/-3 deg F |
| Changeover Type | Automatic |
| Temperature Control Range | 40 to 100 deg F |
| Resistive Amps @ 208V AC | 25 A |
| Country of Origin (subject to change) | Korea, Republic of |
| Package Quantity | 1 |
