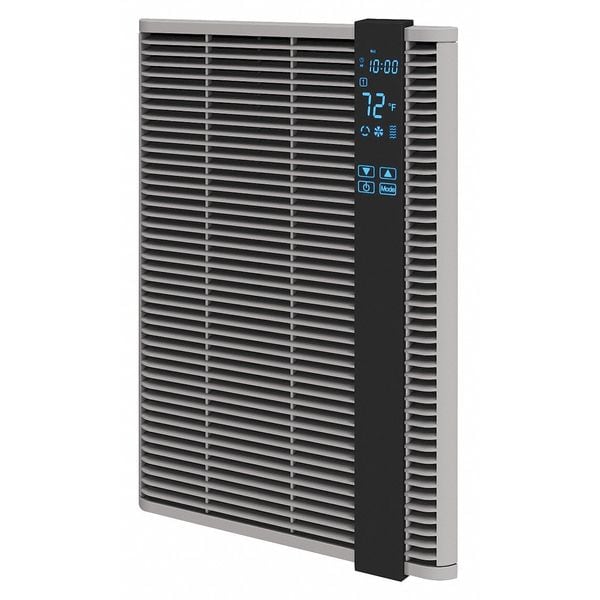

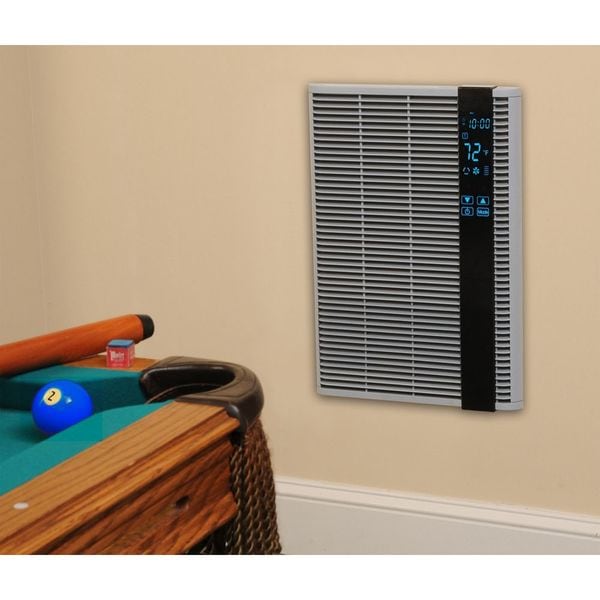

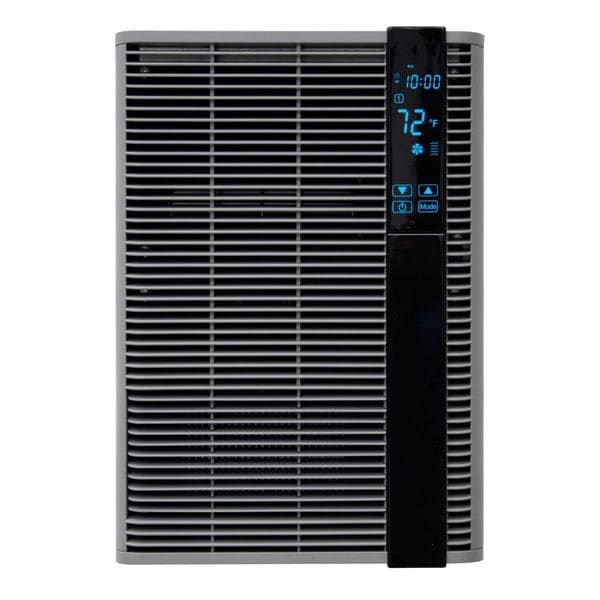

Recessed Electric Wall-Mount Heater, Recessed, 250 to 2000 W, 240V AC, Gray
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Electric Heater Item | Electric Wall Heater |
| Electric Heater Type | Programmable Touchscreen |
| Watts | 250 to 2000 |
| BtuH | 853 to 6826 |
| Heater Voltage | 240 V AC |
| Electric Heater Phase | 1 |
| Wall Opening Width | 12" |
| Color | Gray |
| Amps AC | 1.0 to 8.3 |
| Wall Opening Depth | 3-3/4" |
| Housing Width | 12 in |
| Wall Opening Height | 17-3/8 in |
| Item | Recessed Electric Wall-Mount Heater |
| Manufacturers Warranty Length | 1 yr |
| Air Temp. Rise | 15 deg F |
| Mounting Type | Recessed |
| Grille Height | 19-9/16 in |
| Grille Material | Plastic Composite |
| Features | Built In Fan Delay,Built In Power Disconnect Switch, Convenient Remote Control, Contemporary, Clean Design with Night Light, Designed for Easy Installation, The Heater May Be Wired with Standard Building Wire 60 Degrees C, 5/2 Day Programmable Thermostat with LED Touchscreen Display |
| Hz | 60 |
| Grille Depth | 1 in |
| Grille Width | 13-11/16 in |
| Housing Height | 17-7/16 in |
| Standards | cETLus Listed |
| Housing Depth | 3-3/4 in |
| Finish | Glossy |
| Voltage | 240V AC |
| Air Flow | 100 cfm |
| Phase | 1 |
| Grille Color | White, Gray |
| Setback Control | Yes |
| Voltage, Phase | 240V AC, 1-phase |
| Wattage Output | 250 W/2000 W |
| Frequency | 60 Hz |
| Building Management System Compatible | Yes |
| Heater Mounting Position | Horizontal Burn |

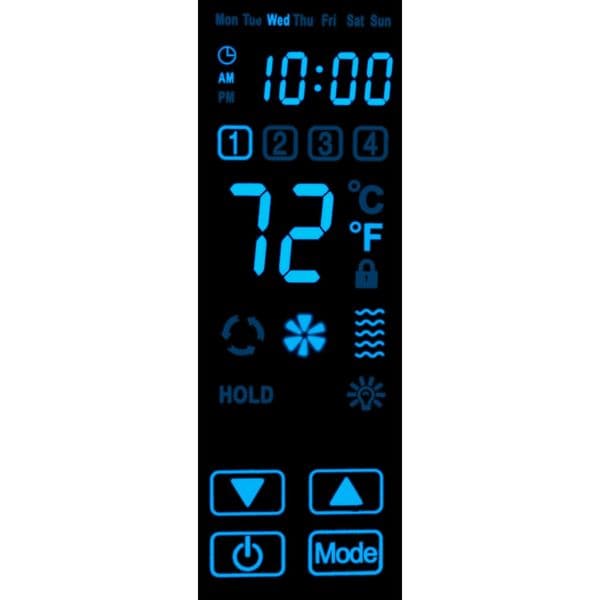

| Control Type | Touch Screen |
| Heating Capacity | 853/6,826 BtuH |
| Thermostat Contact Type | Double Pole |
| Rough-In Height | 17-3/8 in |
| Automatic Fan Delay (On/Off) | Yes |
| Thermostat Included | Unit-Mounted |
| Filter Included | No |
| Programming Capability | 5-2 |
| Rough-In Dimensions - H x W x D | 17-3/8 in x 12 in x 3-3/4 in |
| Rough-In Width | 12 in |
| Wattage Field Convertible | Yes |
| Minimum Mounting Distance from Ceiling | 36 in |
| Minimum Mounting Height from Floor | 12 in |
| Thermal Overheat Protection | Manual Reset |
| Housing Material | Steel |
| Hold Function | Yes |
| Amperage | 1 A to 8.3 A |
| Rough-In Depth | 3-3/4 in |
| Disconnect Switch | Yes |
| Smart Connectivity | No Connectivity |
| Heating Method | Fan Forced |

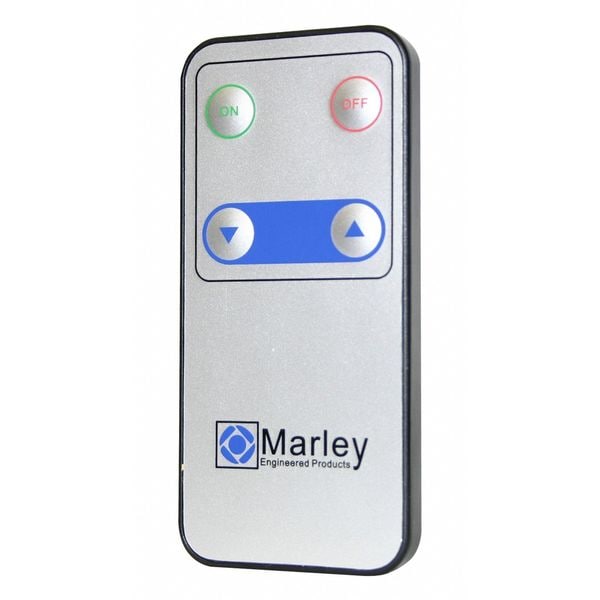

| Remote Control Functions | On/Off Control, Temp |
| Tamper Resistant | Yes |
| Fan Only Operation | Yes |
| Grille Finish | Glossy |
| Includes | Back Box, Grille |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
