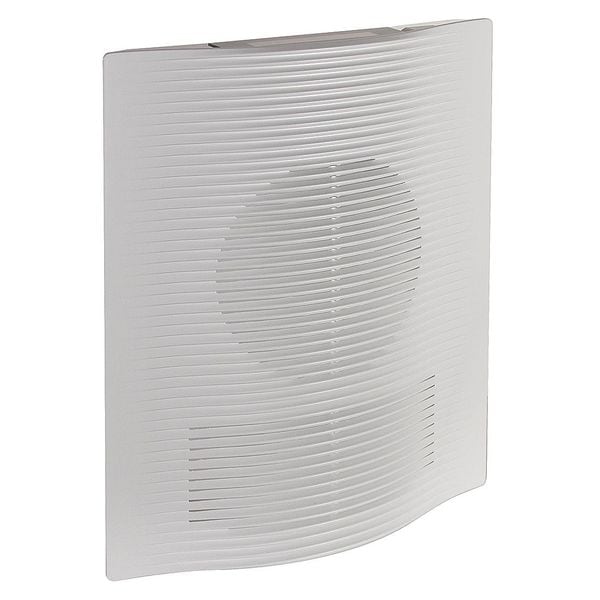

Recessed Electric Wall-Mount Heater, Recessed or Surface, 1800 to 4800 W, 208V AC, White
| Electric Heater Item | Electric Wall Heater |
|---|---|
| Electric Heater Type | Programmable Touchscreen |
| Watts | 1800 to 4800 |
| BtuH | 16,378 |
| Heater Voltage | 208 V AC |
| Electric Heater Phase | 1 |
| Wall Opening Width | 14-19/64" |
| Color | White |
| Amps AC | 23.1 |
| Wall Opening Depth | 3-7/8" |
| Item | Recessed Electric Wall-Mount Heater |
| Standards | cETL, UL standard 2021 |
| Air Temp. Rise | 147 deg F |
| Housing Width | 14-3/16 in |
| Grille Width | 15-7/8 in |
| Manufacturers Warranty Length | 1 yr (On Unit), 5 yr (On Element) |
| Housing Depth | 3-3/4 in |
| Features | Save Energy with Zone Heating, 2 and 5 Day Programmability, Heater Remote, Connects to Building Management Systems |
| Grille Height | 19-3/4 in |
| Hz | 60 |
| Wall Opening Height | 18-15/64 in |
| Mounting Type | Recessed or Surface |
| Finish | Powder Paint |
| Housing Height | 18-3/16 in |
| Grille Material | Cast Aluminum |
| Grille Depth | 2-3/4 in |
| Voltage | 208V AC |
| Air Flow | 100 cfm |
| Phase | 1 |
| Heating Method | Fan Forced |
| Smart Connectivity | No Connectivity |
| Thermostat Included | Unit-Mounted |
| Wattage Output | 1800 W/4800 W |
| Thermal Overheat Protection | Automatic Reset |
| Rough-In Height | 18-3/16 in |
| Remote Control Functions | On/Off Control, Temp |
| Housing Material | Aluminum Die Cast |
| Rough-In Depth | 3-7/8 in |
| Grille Color | White |
| Filter Included | No |

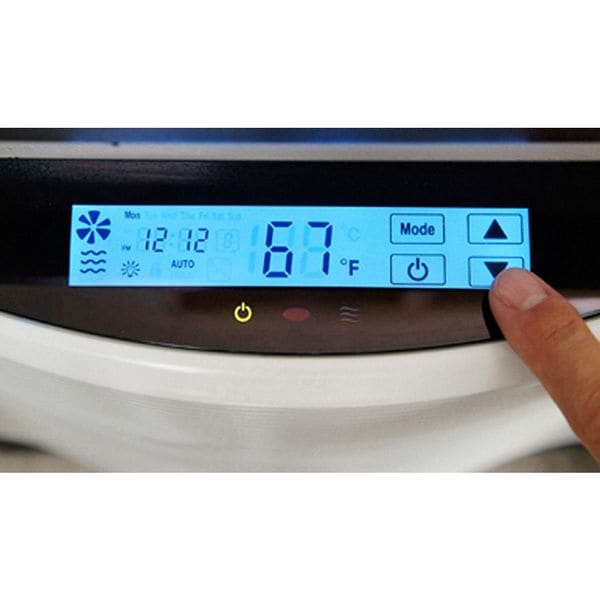

| Control Type | Touch Screen |
| Wattage Field Convertible | Yes |
| Automatic Fan Delay (On/Off) | Yes |
| Setback Control | Yes |
| Fan Only Operation | No |
| Grille Finish | Powder Coated |
| Heater Mounting Position | Horizontal Burn |
| Rough-In Width | 14-1/4 in |
| Building Management System Compatible | Yes |
| Minimum Mounting Distance from Ceiling | 36 in |
| Heating Capacity | 16,378 BtuH |
| Programming Capability | 5-2 |
| Disconnect Switch | Yes |
| Thermostat Contact Type | Double Pole |
| Tamper Resistant | Yes |
| Includes | Fan only Mode, Night Light and Remote Control, Security Lockout |
| Frequency | 60 Hz |
| Rough-In Dimensions - H x W x D | 18-3/16 in x 14-1/4 in x 3-7/8 in |
| Voltage, Phase | 208V AC, 1-phase |
| Minimum Mounting Height from Floor | 12 in |
| Amperage | 8.7 A to 23.1 A |
| Occupancy Sensor | No |
| Hold Function | Yes |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
