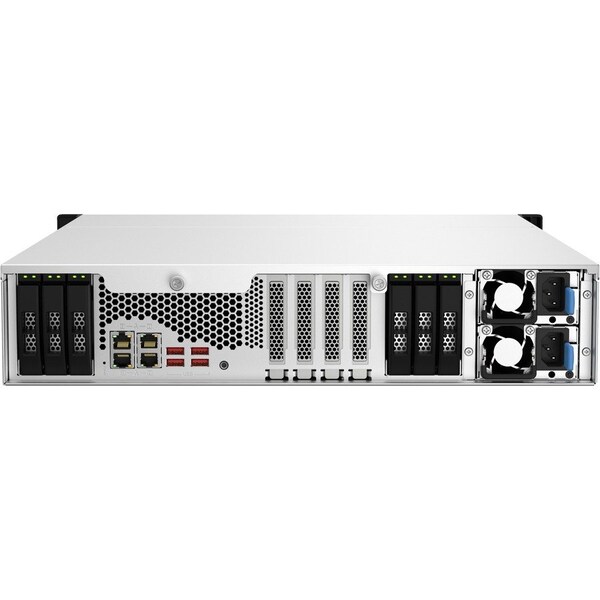

18-BAY 2U RACKMOUNT NAS, INTEL XEON E-2334.COMES WITH 5YR WARRANTY
| Height | 3-1/2 in |
|---|---|
| Number of Network (RJ-45) Ports | 4 |
| Maximum Power Supply Wattage | 550 W |
| Number of Solid State Drive Supported | 18 |
| Controller Type | Serial ATA, 600 |
| Rack Height | 2U |
| Width | 19 in |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| RAID Supported | Yes |
| Standard Memory | 16 GB |
| Operating System | QuTS hero h5.0.0/QTS 5.0.1 |
| Number of Total Expansion Bays | 18 |
| Number of Hard Drives Supported | 18 |
| Number of USB 3.2 Gen 2 Ports | 4 |
| Package Contents | TS-h1887XU-RP-E2334-16G SAN/NAS Storage System, (1) Ethernet Cable, (2) Power Cord, 4(8) Flat Head Screw (for 3.5" HDD), 6(4) Flat Head Screw (for 2.5" HDD), Quick Installation Guide (QIG) |
| Number of 2.5" Bays | 6 |
| Processor Core | Quad-core |
| Total Number of Expansion Slots | 3 |
| Depth | 24.8 in |
| Memory Technology | DDR4 SDRAM |
| Total Number of USB Ports | 4 |
| Number of 3.5" Bays | 12 |
| Processor Model | E-2334 |
| Processor Type | Xeon |
| Number of Processors Installed | 1 |
| Expansion Slot Type | PCI |
| Number of Power Supplies Installed | 2 |
| Network (RJ-45) | Yes |
| Processor Speed | 3.4 GHz |
| Ethernet Technology | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| HDMI | Yes |
| Flash Memory Capacity | 5 GB |
| Item | SAN/NAS Storage System |
| Series | TS-hx87XU |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
