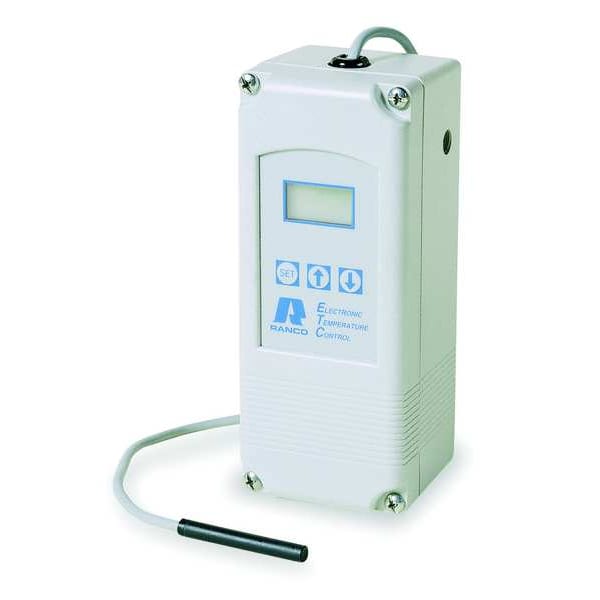

Temperature Control, Close on Rise, Open on Rise, -30 Degrees to 220 Degrees F, SPDT, 24VAC
| Switch Action | Close on Rise, Open on Rise |
|---|---|
| Voltage | 24VAC |
| Sensor Type | Thermistor |
| Differential | 1 Degrees to 30 Degrees F |
| Display Type | Digital |
| Number of Relay Inputs | 1 |
| Switch Type | 2 SPDT |
| Color | Gray |
| Width | 2-3/4 in |
| Height | 6-1/2 in |
| Sensing Bulb Length | 2 in |
| Sensing Bulb Dia. | 1/4 in |
| Voltage Range | 24V AC |
| Number of Relay Outputs | 2 |
| Full Load Amps @ 240VAC | 2.9A (NC), 4.9A (NO) |
| Depth | 2-1/2 in |
| For Use With | Cooling, Heating, Refrigeration |
| Standards | Class 4813 02, CSA Certified LR68340, UL File E94419, UL Guide No. XAPX |
| Full Load Amps @ 120VAC | 5.8A (NC), 9.8A (NO) |
| Control Range | -30 to 220 deg F |
| Enclosure Type | NEMA 1 |
| Thermostat Switch Type | SPDT |
| Item | Temperature Control |
| Contact Rating Resistive @ 120V | 9.8 A |
| Number of Switches | 2 |
| Application | Cooling Control, Heating Control |
| Contact Rating Resistive @ 240V | 4.9 A |
| Input Voltage | 24V AC |
| Number of Stages | Dual |
| Includes | 8 ft Foot Cable |
| Mounting | Vertical or Horizontal |
| Type | Electronic Temperature Control |
| Display | LCD |
| Capillary Length | 96 in |
| Overall Depth | 2-1/2 in |
| Horsepower @ 120V AC | 0.5 HP |
| NEMA Rating | 1 |
| Resistive Load Current @ 120V | 58.8 A |
| Variable Output Voltage | Yes |
| Full Load Current @ 240V AC | 4 A |
| Overall Height | 6-1/2 in |
| Resistive Load Current @ 240V | 29.4 A |
| Number of Sensor Inputs | 1 |
| Number of SPDT Outputs | 1 |
| Power Consumption | 100 MVA |
| Maximum Temperature Differential Setting | 30 deg F |
| Horsepower @ 240V AC | 0.5 HP |
| Product Type | Temperature Control |
| Minimum Control Temperature | -30 deg F |
| Housing Color | Gray |
| Sensing Bulb Diameter | 1/4 in |
| Compatible with Series | Universal |
| Ambient Humidity | 0% to 95% RH |
| IP Rating | IP67 |
| Overall Width | 2-3/4 in |
| Contact Form | SPDT |
| Maximum Control Temperature | 220 deg F |
| Minimum Temperature Differential Setting | 1 Degrees F |
| Temperature Control Function | Cool, Heat |
| Full Load Current @ 120V AC | 9.8 A |
| Number of Sensors Included | 1 |
| Housing Material | Polyethilene |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
