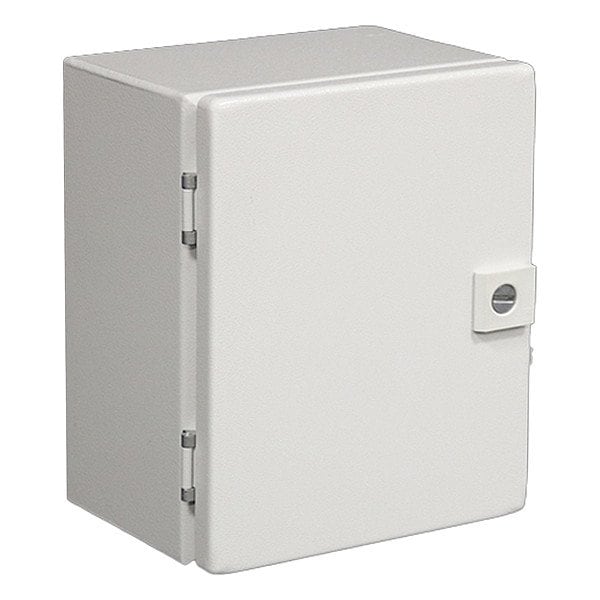

1/4-Turn Latch Electrical Enclosure, 300 mm H, 125 mm D, 250 mm W, 4, Steel
| Item | Electrical Enclosure |
|---|---|
| Nominal Width | 250 mm |
| Nominal Height | 300 mm |
| Nominal Depth | 125 mm |
| NEMA Enclosure Rating | 4 |
| Enclosure Material | Steel |
| Closure Method | Latch |
| Cover Closure Type | Hinged |
| Color | Light Gray |
| Finish | Powder Coated |
| Cover Style | Solid |
| IP Rating | IP66 |
| Standards | UL Listed |
| Overall Height | 11.8 in |
| Includes | 180 Degrees Hinge, Door, Mounting Panel |
| Product Type | Box |
| Overall Width | 9.84 in |
| Panel Height | 11 in |
| Overall Depth | 4.92 in |
| Environment - MERCH | Washdown |
| Panel Width | 9 in |
| Gasket Material | Polyurethane |
| Body Material Thickness | 0.06 in |
| Cover Material Thickness | 0.06 in |
| Package Quantity | 1 |
