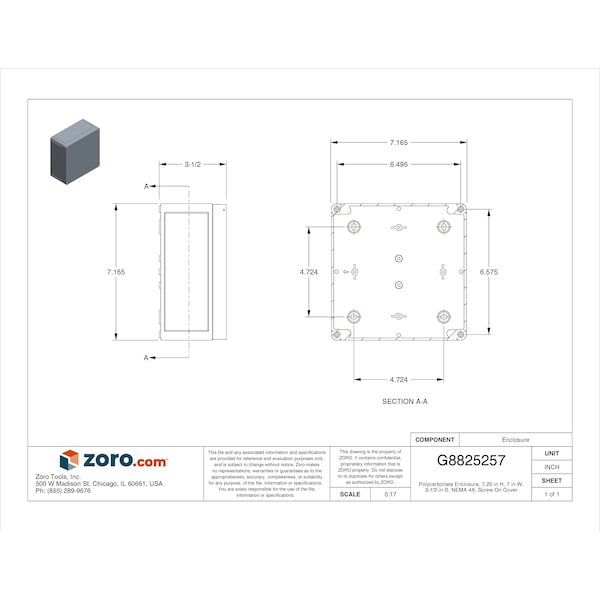

Polycarbonate Electrical Enclosures, 7.20 in H, 3-1/2 in D, 7 in W, NEMA 4X, Screw On
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 7 in |
| Nominal Height | 7.2 in |
| Nominal Depth | 3-1/2 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | Polycarbonate |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Knockouts | No |
| Metallic / Non-Metallic | Non-Metallic |
| Color | Light Gray |
| Finish | Powder Coated |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Series | PK |
| Standards | DNV-GI, ETIM 7.0 EC000261, UL/cUL Listed |
| IP Rating | IP66 |
| Includes | Cover, Cover Screws, Wall Mounting Screws |
| Enclosure Material | Polycarbonate |
| Usable Opening Depth | 2.48 in |
| Protection category IP to EN 60 529 | IP 66 |
| IK code | IK08 |
| Compatible Panel Model Number | Not Applicable |
| Cover Style | Solid |
| Gasket Material | Polyurethane |
| NEMA Enclosure Rating | 4X |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Hazardous Location Specification | Not Applicable |
| Cover Closure Type | Screw On |
| Includes Knockouts | Knockouts Not Included |
| Package Quantity | 1 |
