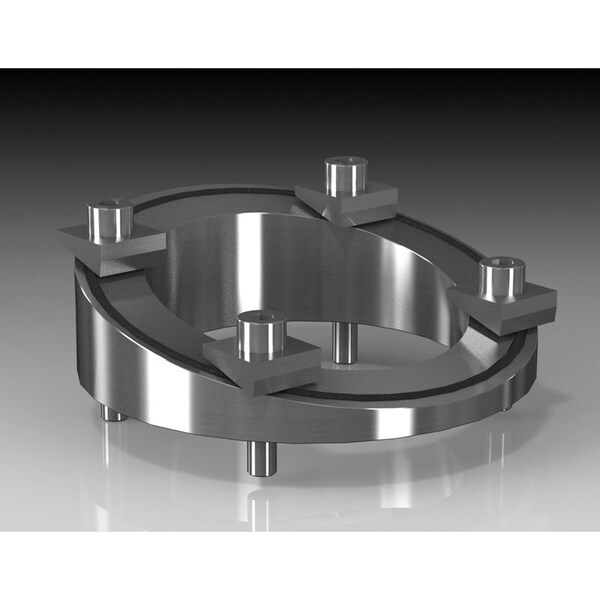

Angle Adaptor, 1.57 in. H x 5.12 in. W x 5.14 in. L, 304 Stainless Steel
| Item | Angle Adaptor |
|---|---|
| For Use With | SCE HMI enclosures |
| Dimension | 1.57 in. H x 5.12 in. W x 5.14 in. L |
| Height | 1.57 in |
| Width | 5.12 in |
| Material | 304 Stainless Steel |
| Finish | Brushed |
| Description | S.S. Angle Adaptor 14 Degree |
| Application | Designed for use with the SCE HMI; enclosures, allows operators to; easily move or position an HMI to an; ergonomic and comfortable working; position. Heavy duty and reliable; construction. Suspension Systems; can be assembled in a multitude of; configurations that allow for machine; mount, wall mount, top mount, and; floor mount options. |
| Depth | 5.14 in |
| Notes | Nema 4X |
| Construction | 304 Stainless Steel couplings; 304 Stainless Steel tubes; Rotating couplings have adjustable tensioner brakes to control movement while in use; O-Ring Gaskets at all connections maintain oil and water tight seal; Stainless Steel Hardware included for installation of coupling to tube. |
| Length | 5.14 in |
| Package Quantity | 1 |
