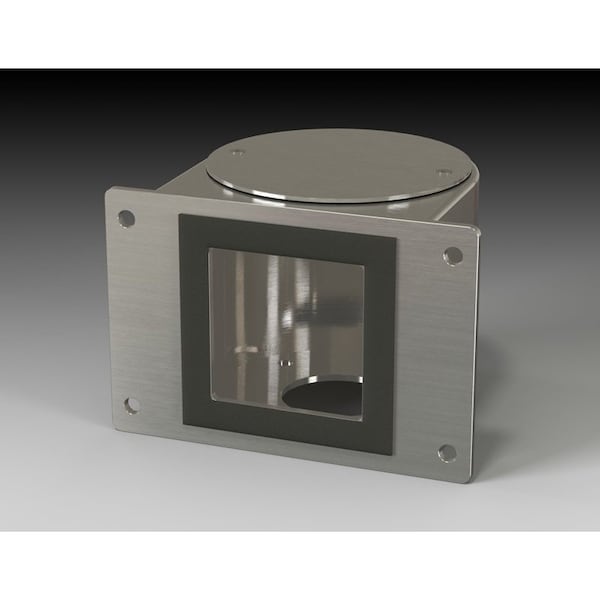

Wall Bracket Adaptor, 5.87 in. H x 7.54 in. W x 5.12 in. L, 304 Stainless Steel
| Item | Wall Bracket Adaptor |
|---|---|
| For Use With | SCE HMI enclosures |
| Dimension | 5.87 in. H x 7.54 in. W x 5.12 in. L |
| Height | 5.87 in |
| Width | 7.54 in |
| Material | 304 Stainless Steel |
| Finish | Brushed |
| Application | Designed for use with the SCE HMI enclosures, allows operators to easily move or position an HMI to an ergonomic and comfortable working position. Heavy duty and reliable construction. Suspension Systems can be assembled in a multitude of configurations that allow for machine mount, wall mount, top mount, and floor mount options. |
| Construction | 304 Stainless Steel couplings; 304 Stainless Steel tubes; Rotating couplings have adjustable tensioner brakes to control movement while in use; O-Ring Gaskets at all connections maintain oil and water tight seal; Continuous closed tube - S, J and I shape designs; Closed tube acts as conduit for feeding wiring; Rigid, durable bearing in all rotating couplings withstand the stress of continuous use; Stainless Steel Hardware included for installation of coupling to tube. |
| Depth | 5.12 in |
| Description | S.S Wall Bracket Adaptor |
| Notes | Industry Standards; Maintains NEMA type 4, 4X and 12 and IP 66 enclosure rating when properly installed to installation instructions. |
| Length | 5.12 in |
| Package Quantity | 1 |
