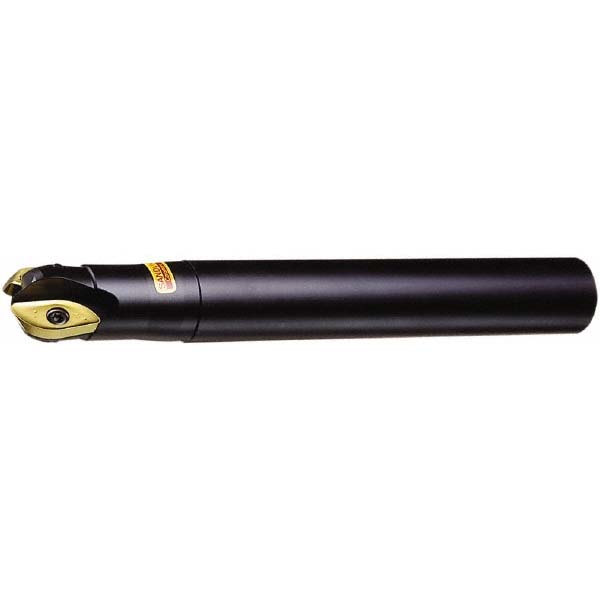

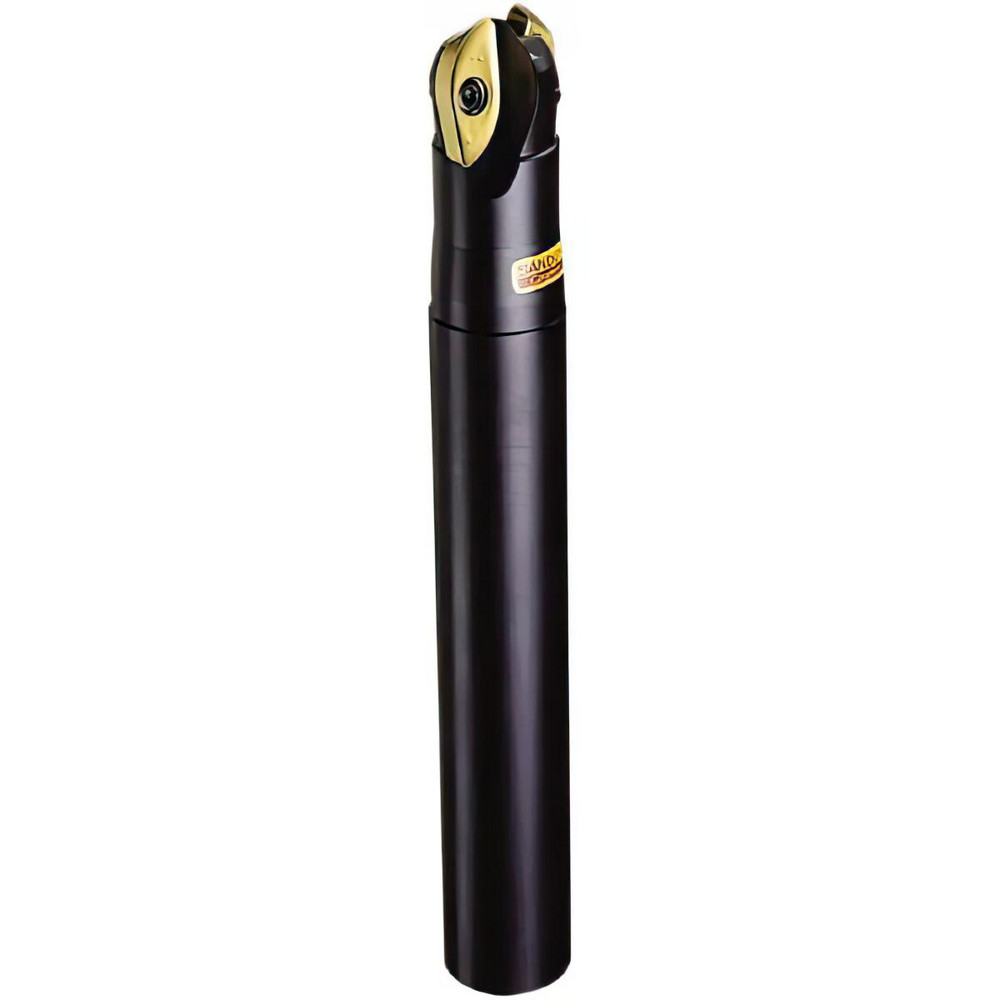

Uses R216-25 04 Inserts, 1.2598" Straight Shank, Through Coolant
| Cutting Diameter (Decimal Inch) | 0.9843 |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Tool Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 0.8780 |
| Maximum Depth of Cut (mm) | 22.30 |
| Shank Type | Straight |
| Shank Diameter (Inch - 0 Decimals) | 1.2598 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Shank Diameter (mm) | 32.00 |
| Insert Holding Method | Screw |
| Compatible Insert Style | R216-25 04 |
| Toolholder Style | R216.. A |
| Overall Length (Decimal Inch) | 9.8425 |
| Overall Length (mm) | 250.00 |
| Series | CoroMill 216 |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| Maximum RPM | 24000 |
| Weldon Flat | Yes |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 1.2598 |
| Projection (Decimal Inch) | 7.4803 |
| Projection (mm) | 190.00 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| Number of Ball Nose Inserts | 2 |
| UNSPSC Code | 27112803 |
| Country of Origin | Sweden |
| MSC Number | MSC# 49336589 |
