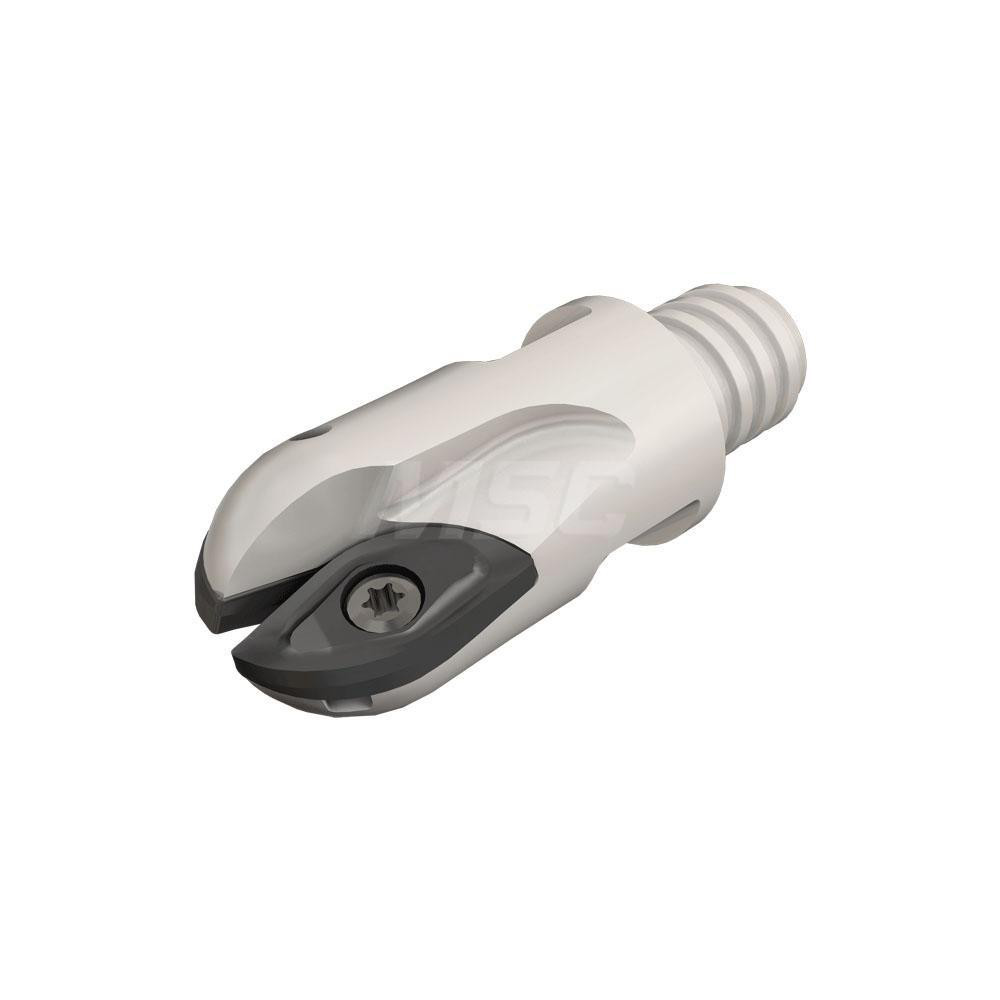

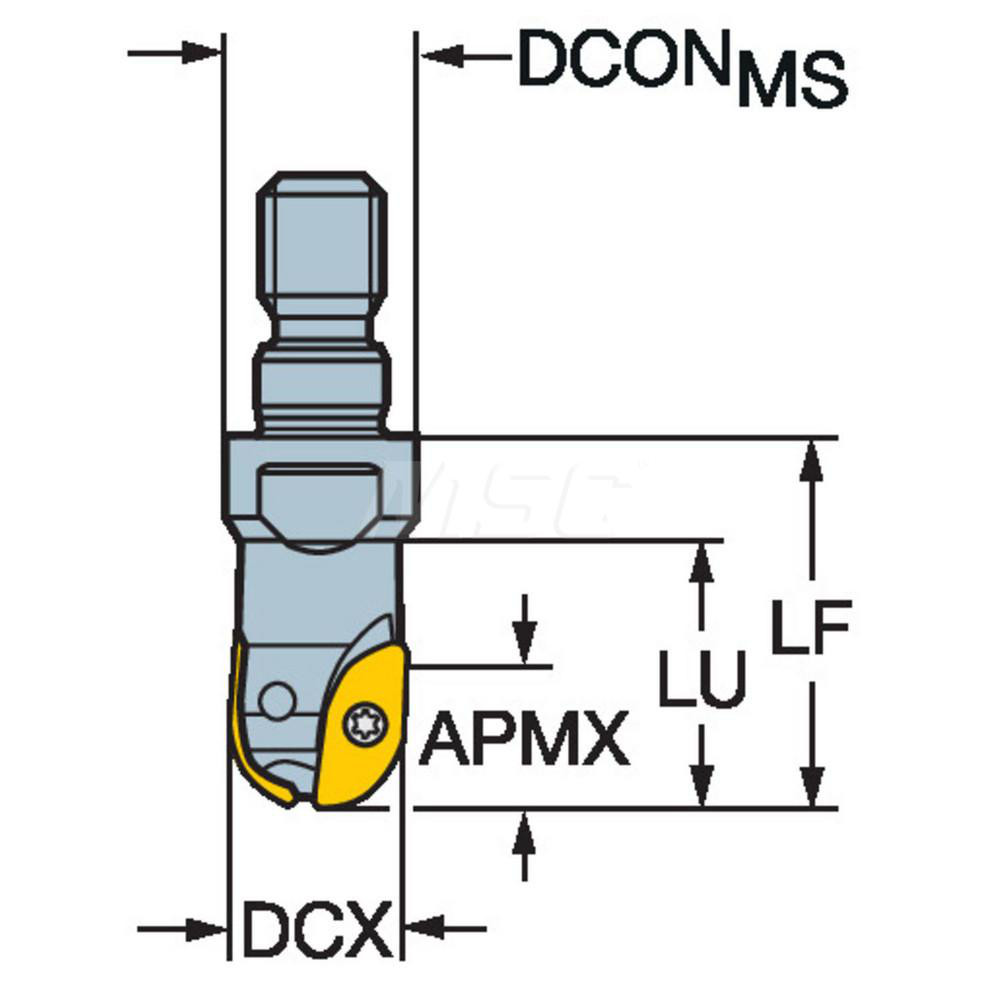

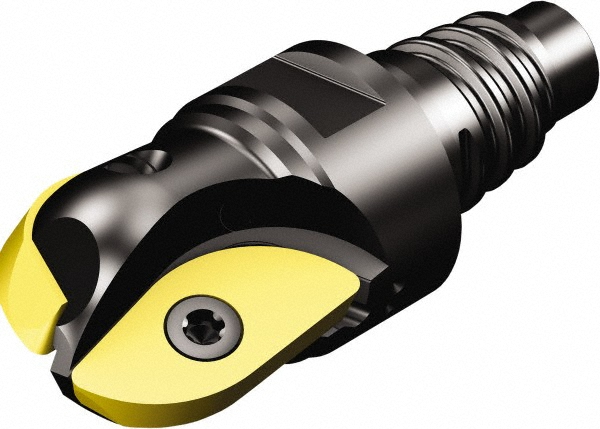

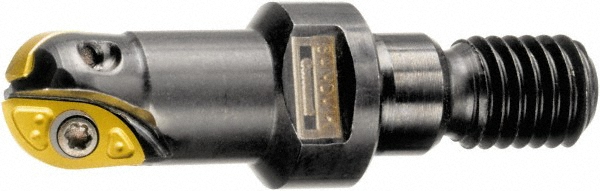

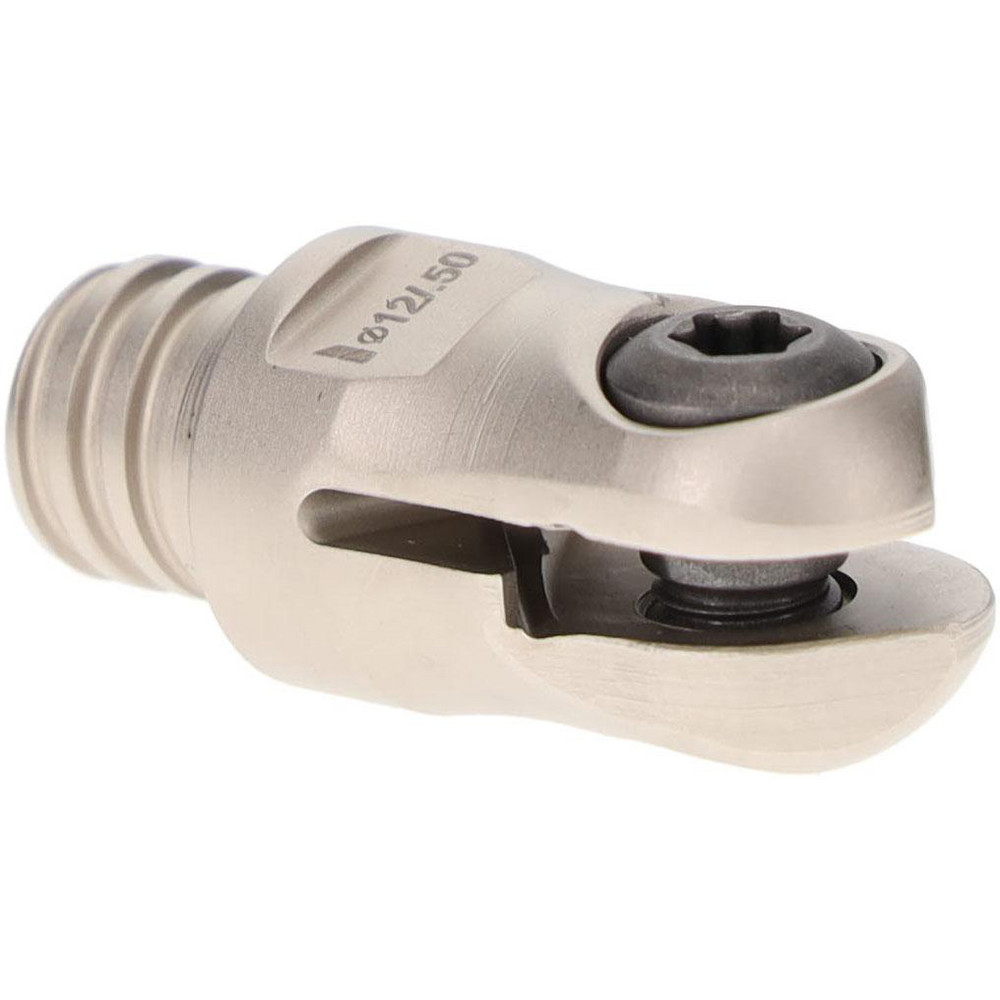

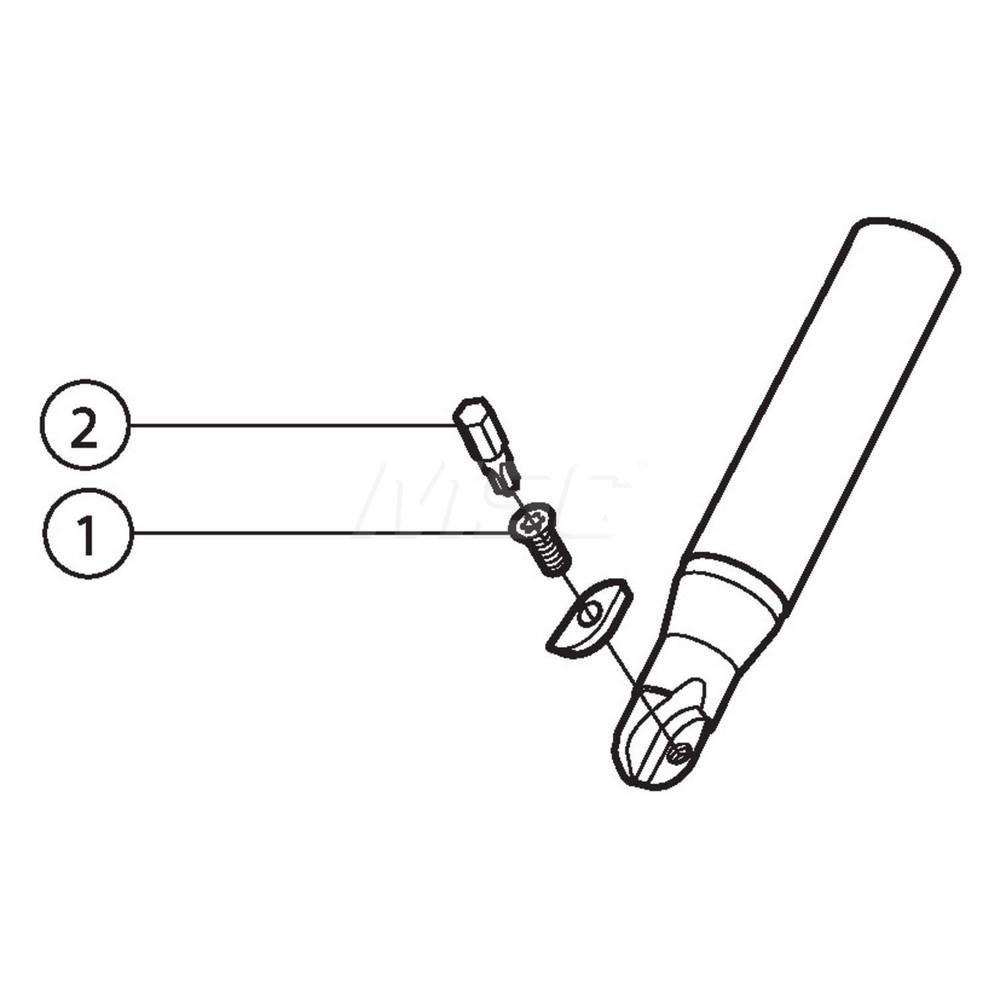

Uses RA216-13 02 Inserts, 12.8 mm Modular Shank
| Cutting Diameter (Decimal Inch) | 0.5000 |
|---|---|
| Tool Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 0.4440 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 12.80 |
| Insert Holding Method | Screw |
| Modular Connection Thread Size | M8 |
| Compatible Insert Style | RA216-13 02 |
| Toolholder Style | RA216.. T |
| Overall Length (Decimal Inch) | 1.5945 |
| Series | CoroMill 216 |
| Head Length (mm) | 23.00 |
| Head Length (Decimal Inch) | 0.9055 |
| Maximum RPM | 12700 |
| Weldon Flat | Yes |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 0.5039 |
| Projection (Decimal Inch) | 0.9055 |
| Cutting Diameter (Inch) | 1/2 |
| Number Of Flutes | 2 |
| Coolant Through | No |
| Number of Ball Nose Inserts | 2 |
| UNSPSC Code | 27112803 |
| Country of Origin | France |
| MSC Number | MSC# 54950902 |
