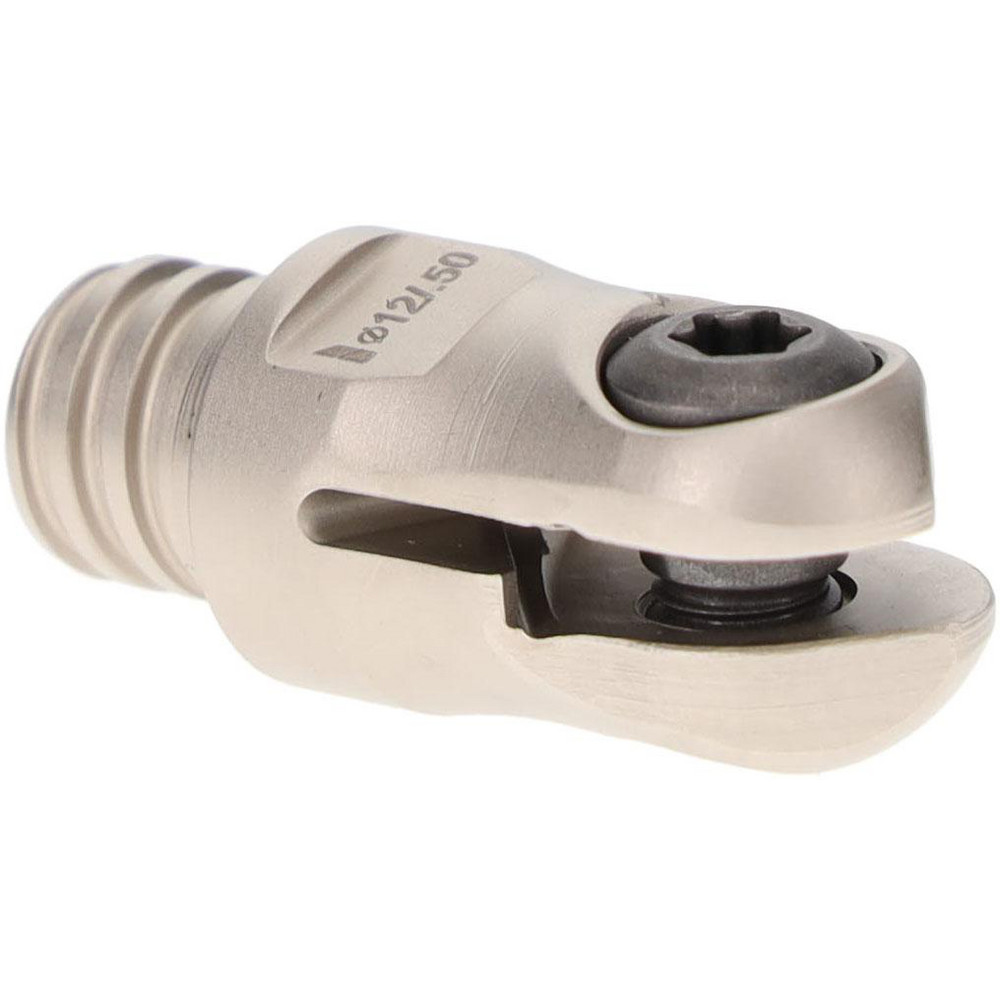

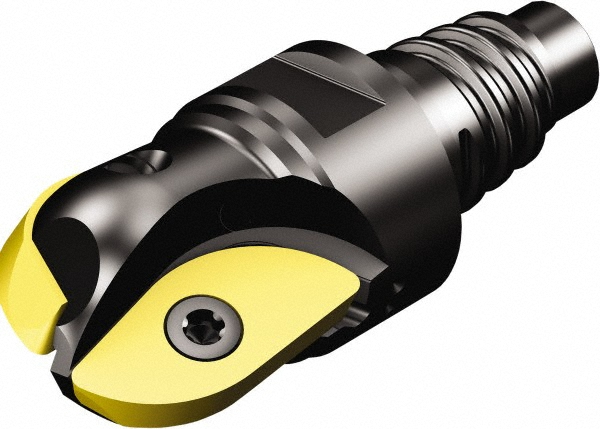

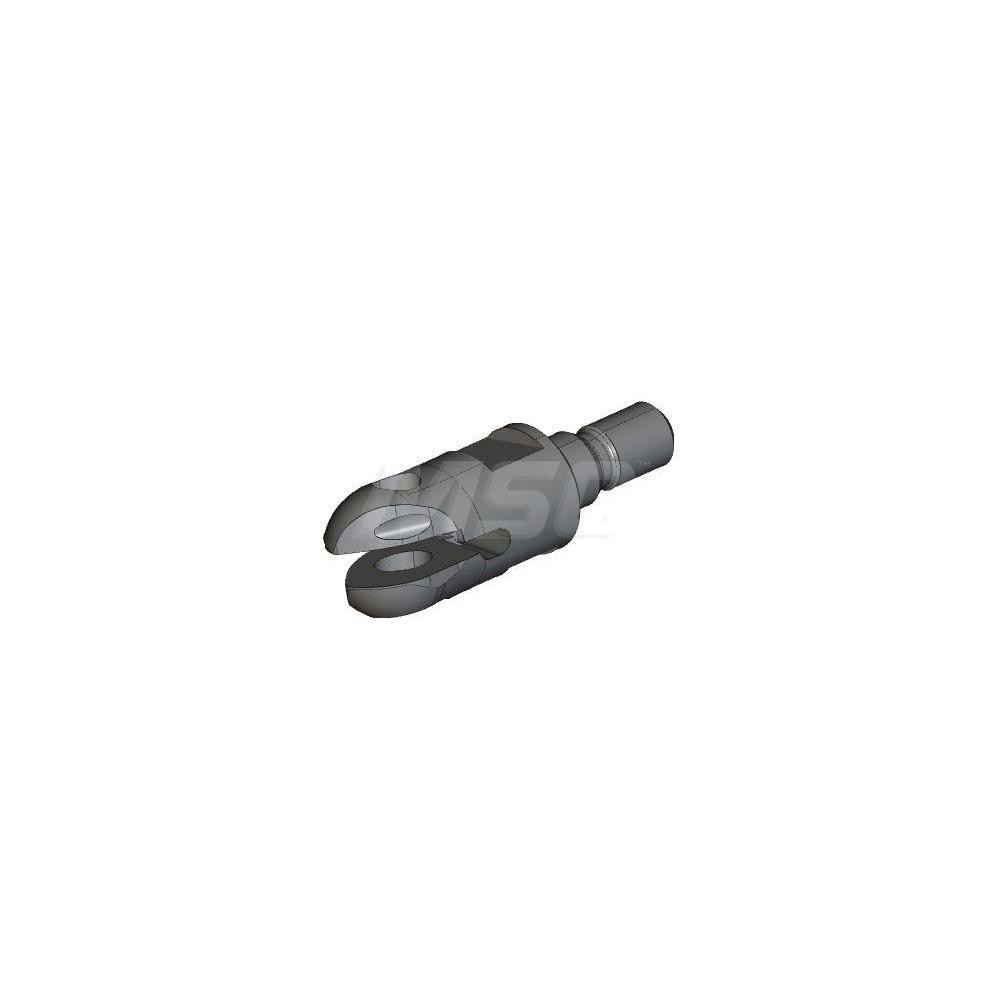

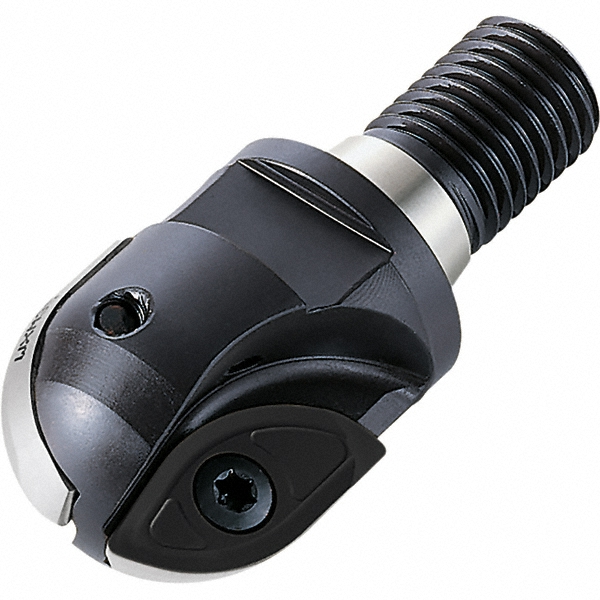

Uses RA216-16 03 Inserts, 15.5 mm Modular Shank, Through Coolant

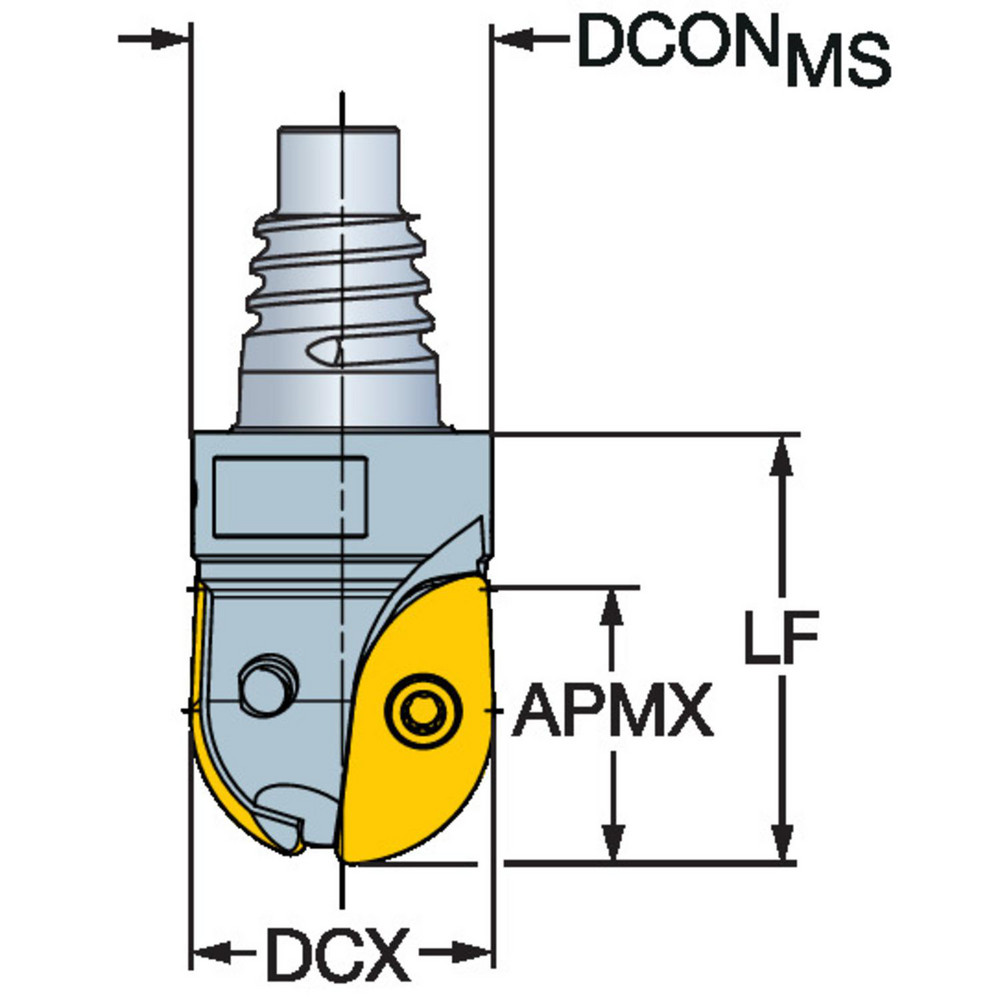

| Cutting Diameter (Decimal Inch) | 0.6250 |
|---|---|
| Tool Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 0.5590 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 15.50 |
| Insert Holding Method | Screw |
| Modular Connection Thread Size | E16 |
| Compatible Insert Style | RA216-16 03 |
| Toolholder Style | RA216.. EH |
| Overall Length (Decimal Inch) | 1.6535 |
| Series | CoroMill 216 |
| Head Length (Decimal Inch) | 0.9844 |
| Maximum RPM | 12700 |
| Weldon Flat | Yes |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 0.6102 |
| Projection (Decimal Inch) | 0.9843 |
| Cutting Diameter (Inch) | 5/8 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| Number of Ball Nose Inserts | 2 |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 54948328 |
