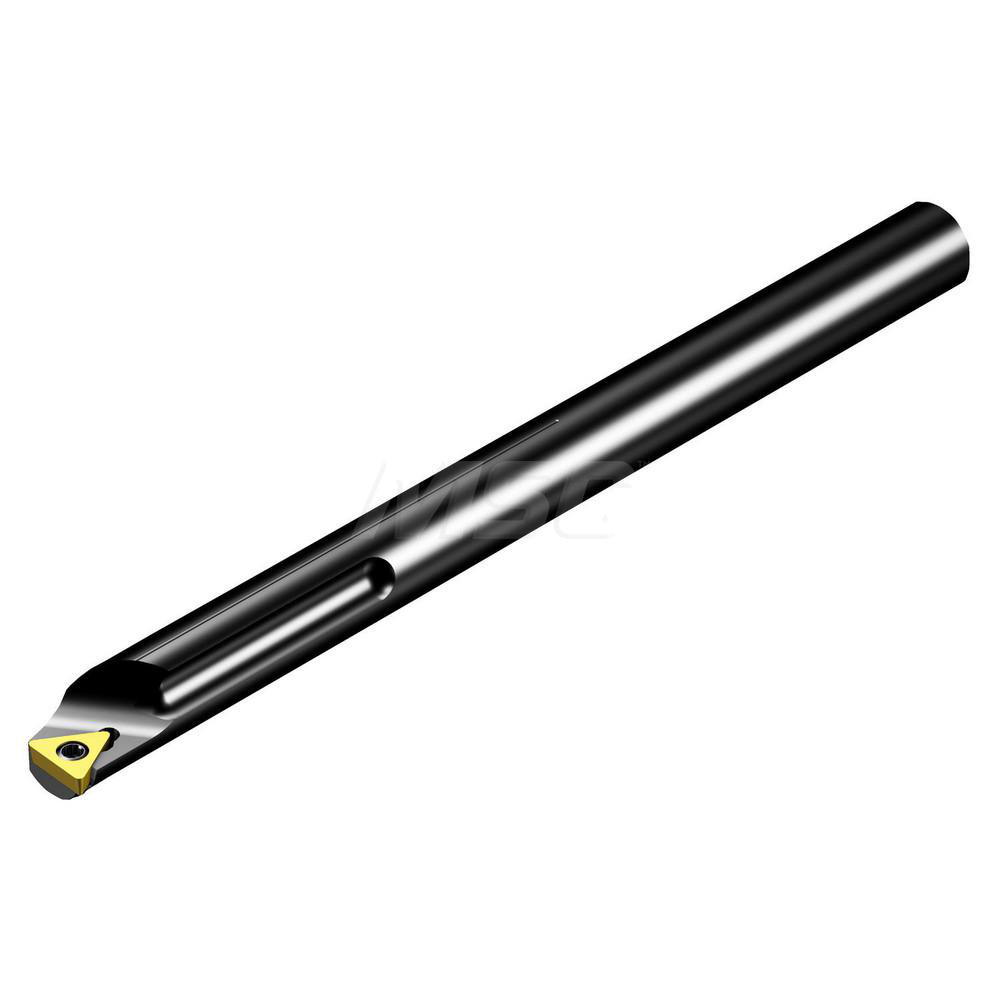

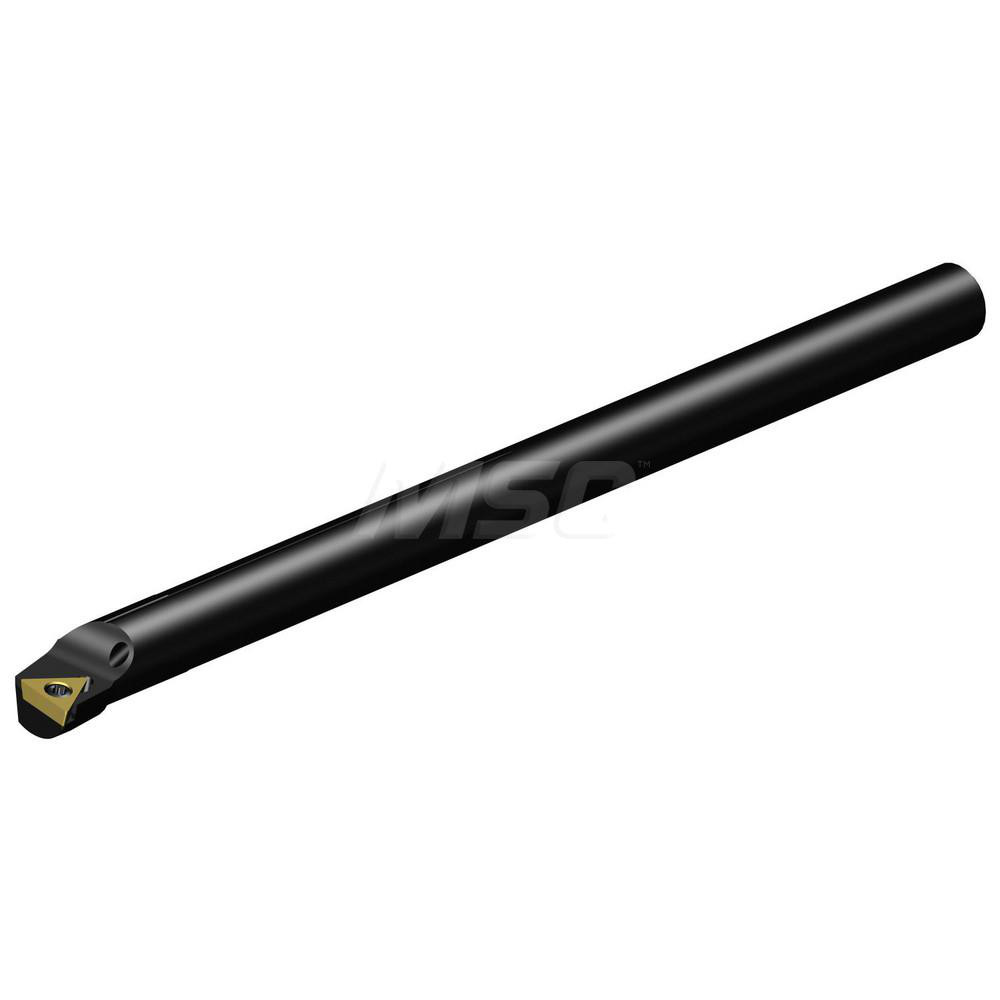

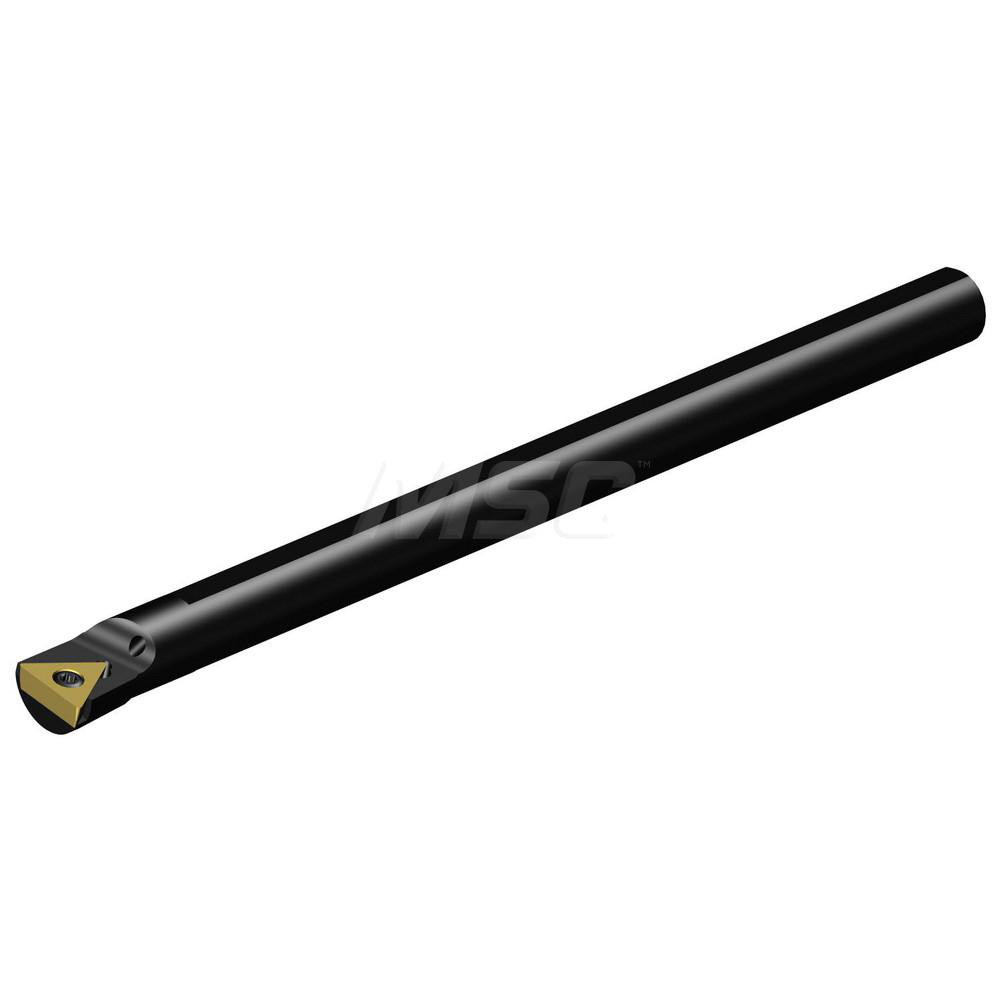

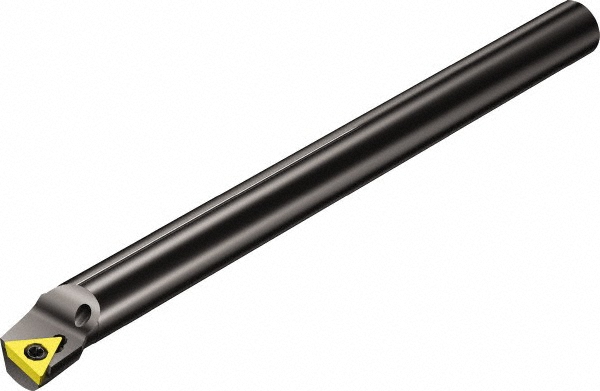

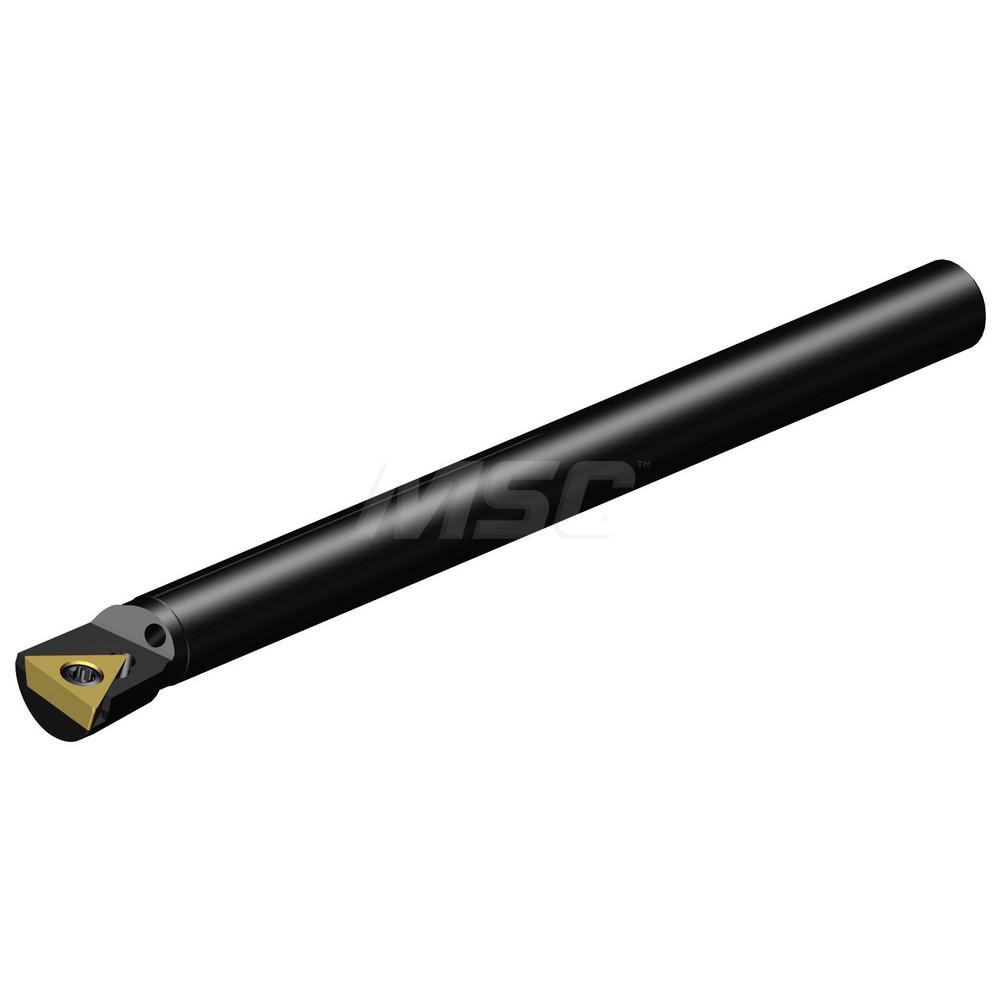

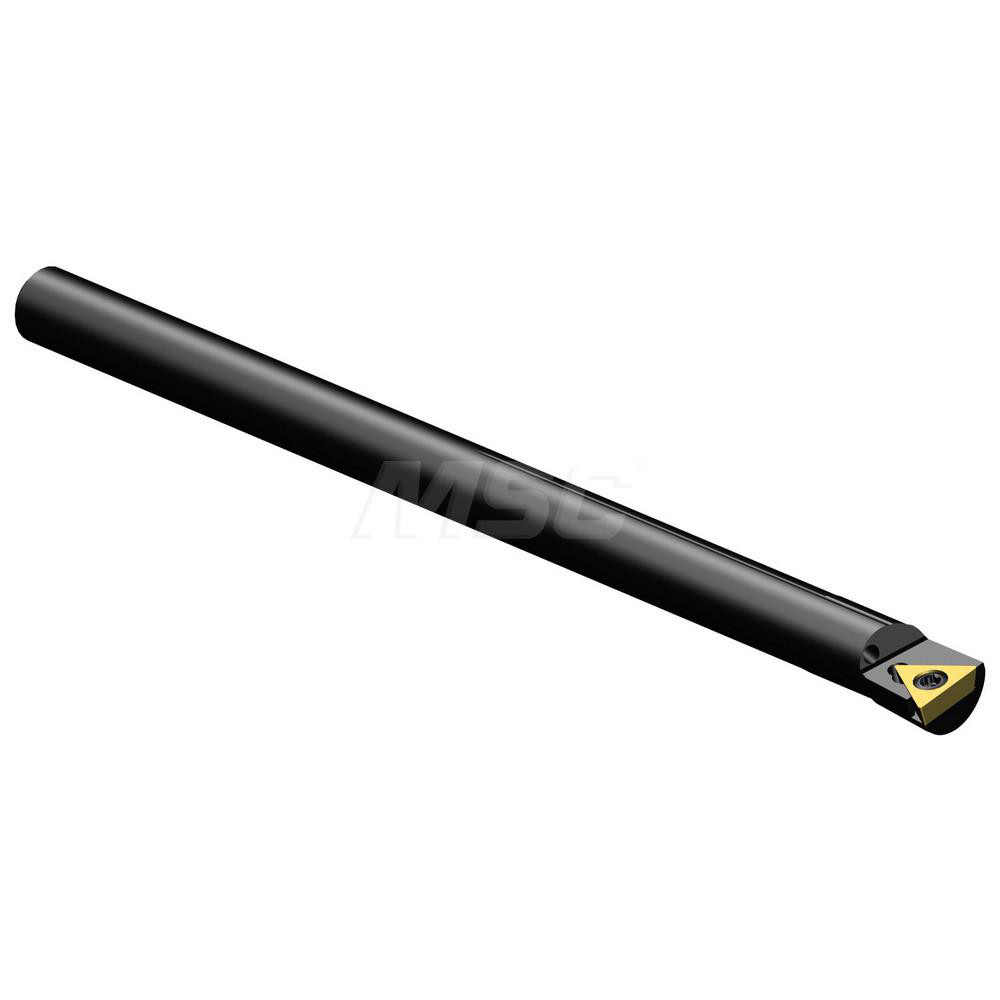

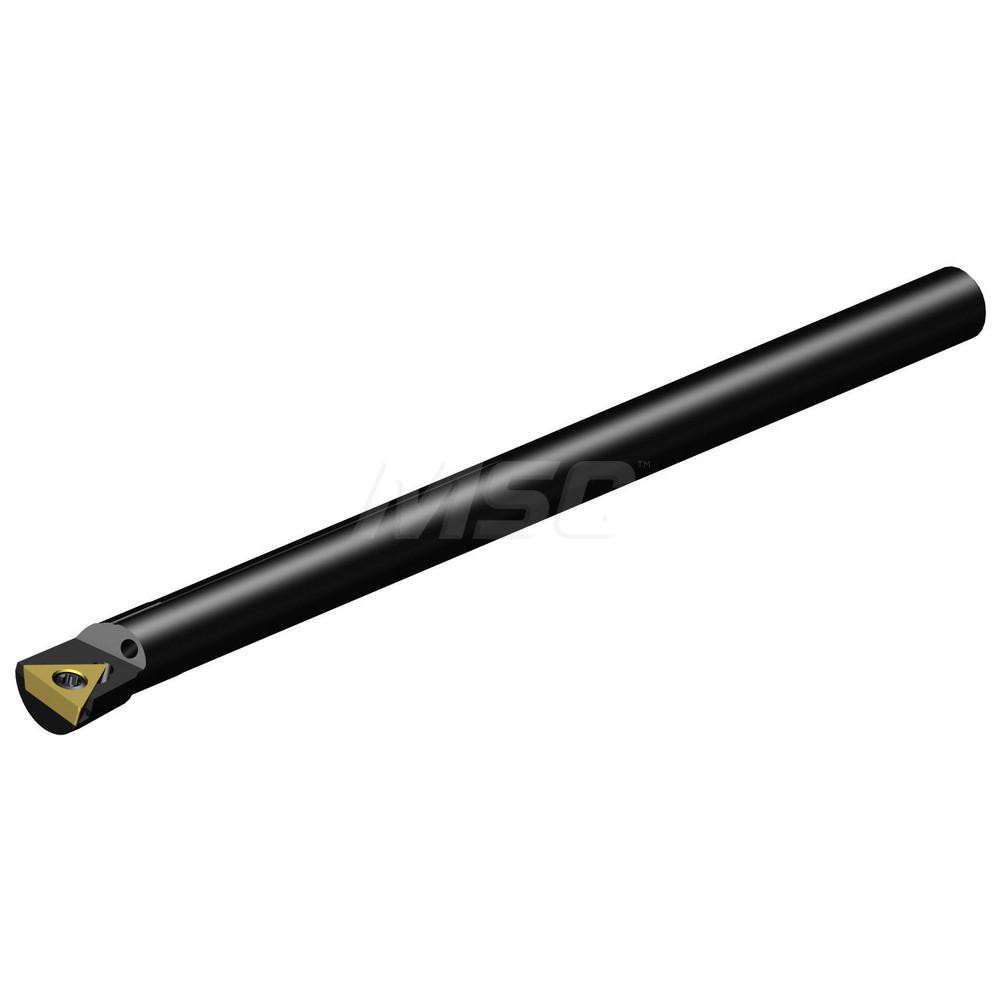

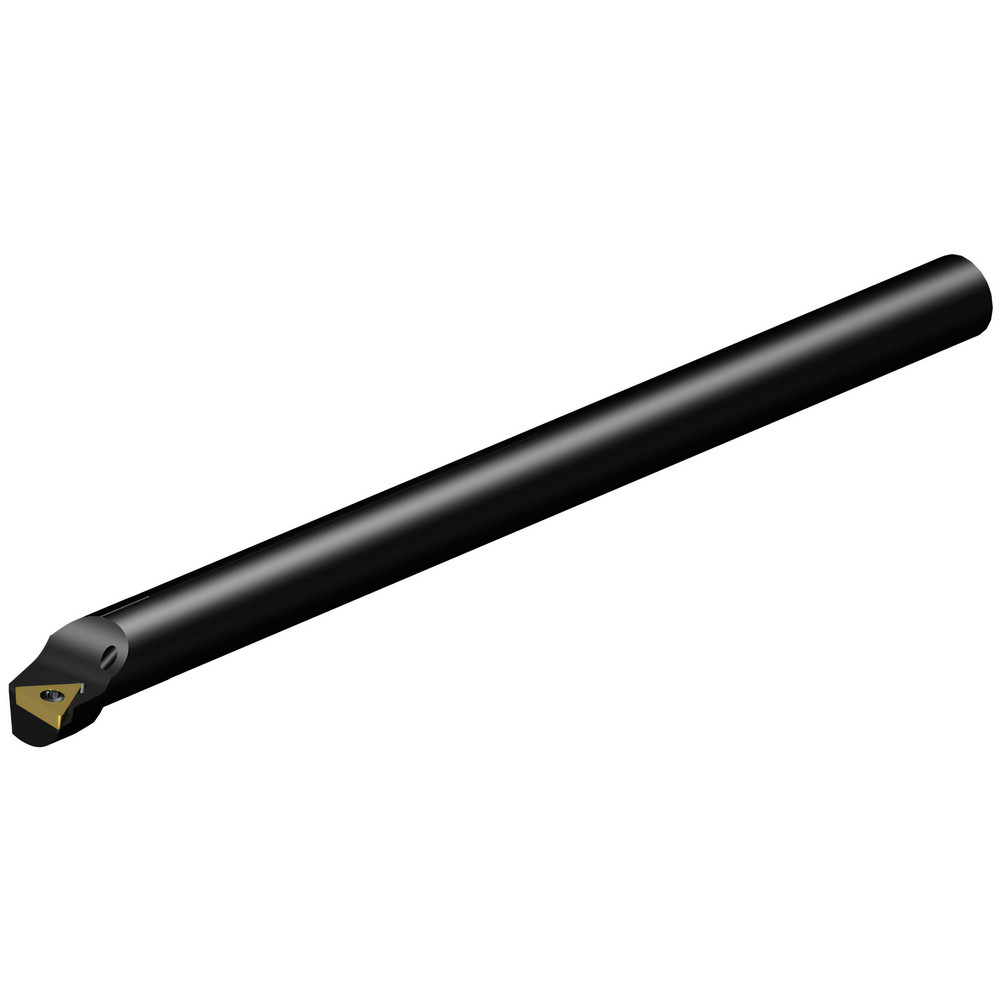

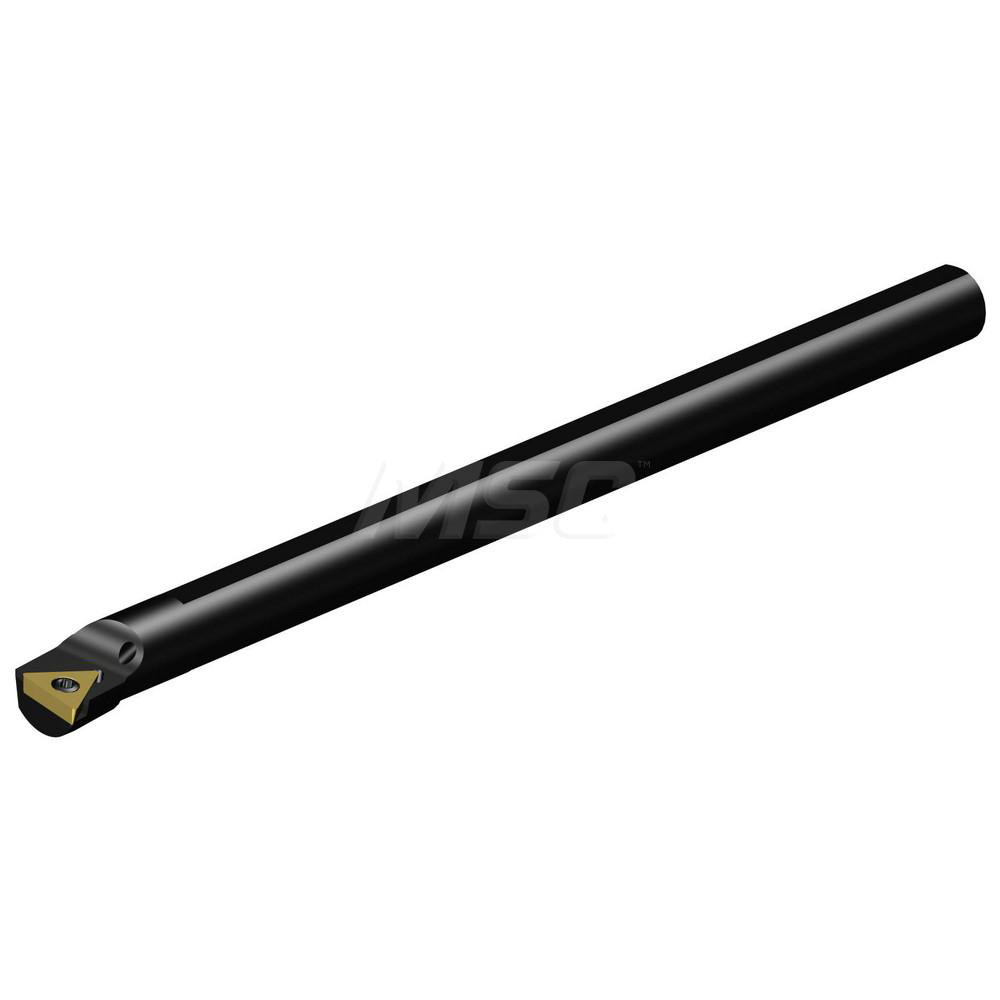

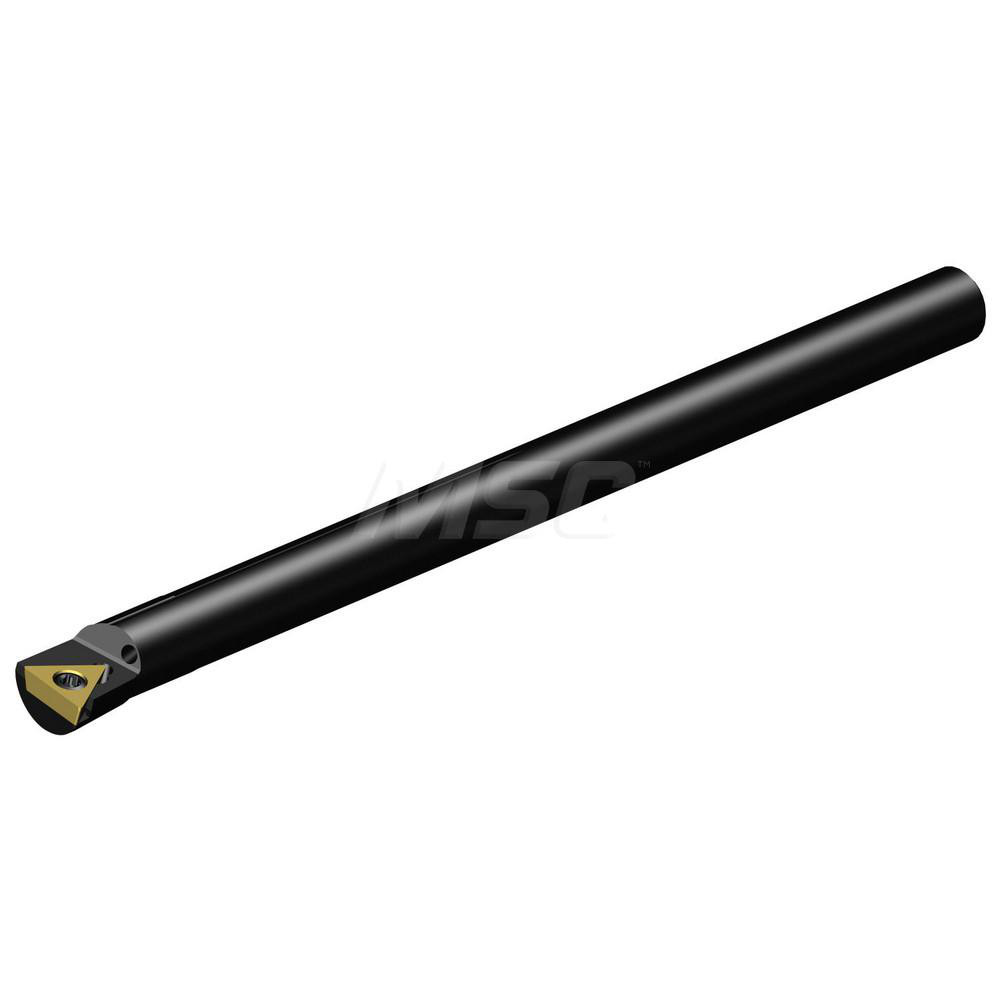

100.00 mm OAL, Screw Clamping, Uses TCMT 1.21.20 Inserts

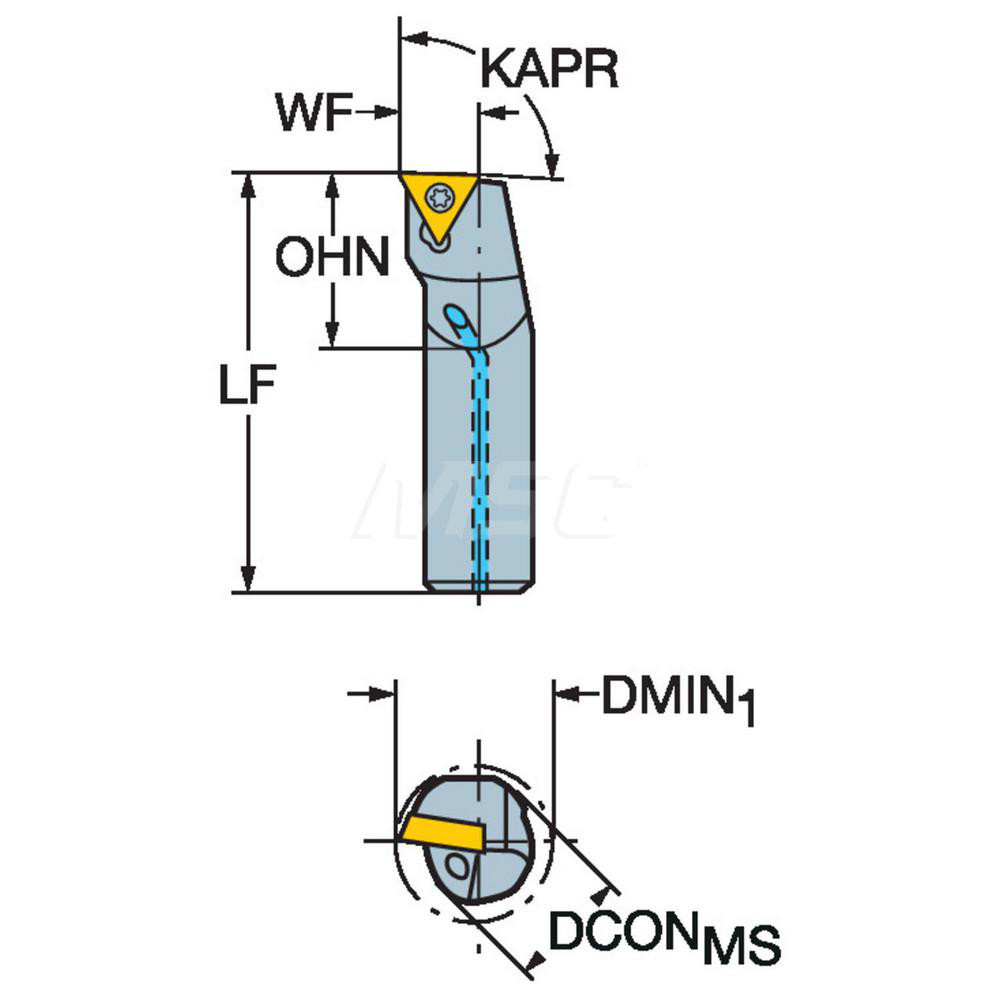

| Minimum Bore Diameter (mm) | 8.50 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.3346 |
| Toolholder Style | E-STFC |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.3346 |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.3346 |
| Tool Material | Solid Carbide |
| Insert Compatibility | TCMT 1.21.20 |
| Shank Diameter (mm) | 6.00 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.00 |

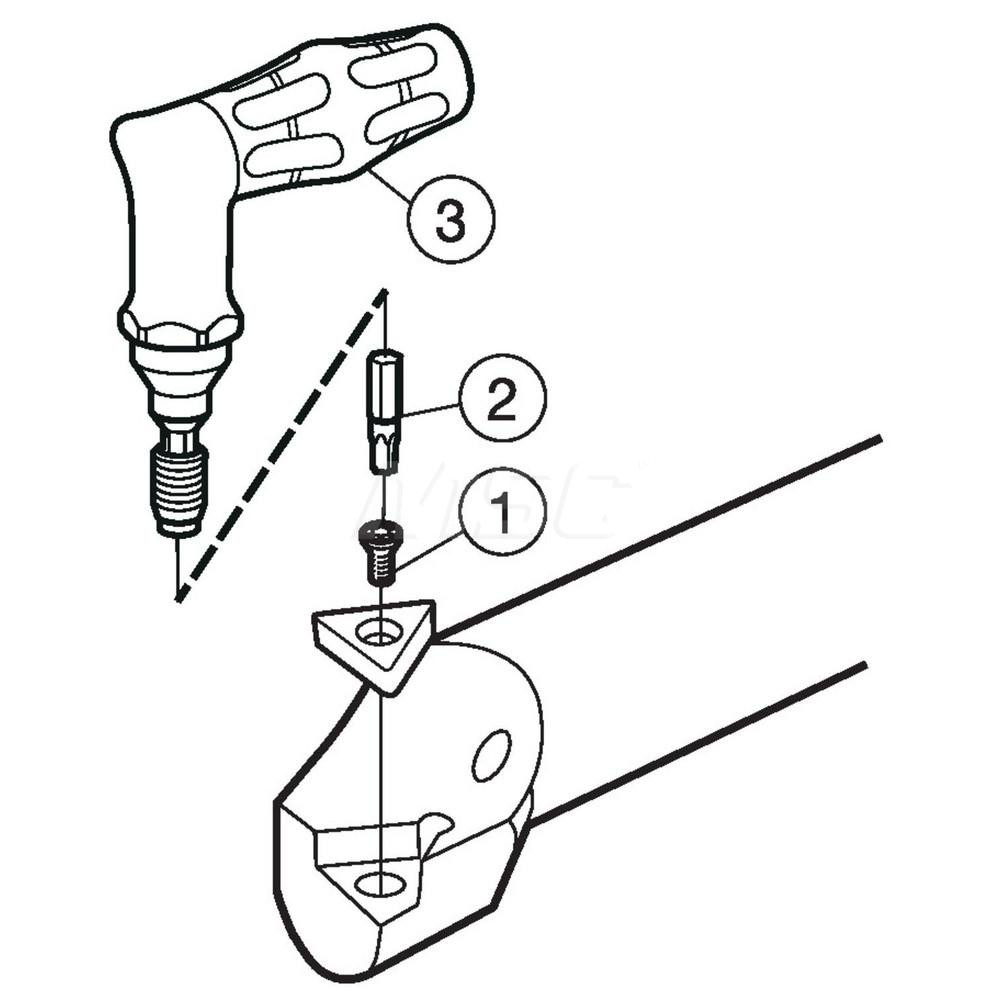

| Insert Holding Method | Screw Clamping |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | 0 |
| Series | CoroTurn 107 |
| Insert Inscribed Circle (Decimal Inch) | 0.1563 |
| Insert Inscribed Circle (mm) | 3.97 |
| Multi-use Tool | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 3.9370 |
| Back of Bar to Cutting Edge (mm) | 100.00 |
| Center to Cutting Edge (Decimal Inch) | 0.1772 |
| Center to Cutting Edge (mm) | 4.50 |
| Number of Inserts Used on Toolholder | 1 |
| Neck Diameter (Decimal Inch) | 0.2362 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0750 |
| Manufacturers Catalog Number | E06H-STFCR 06-R |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 52077427 |
