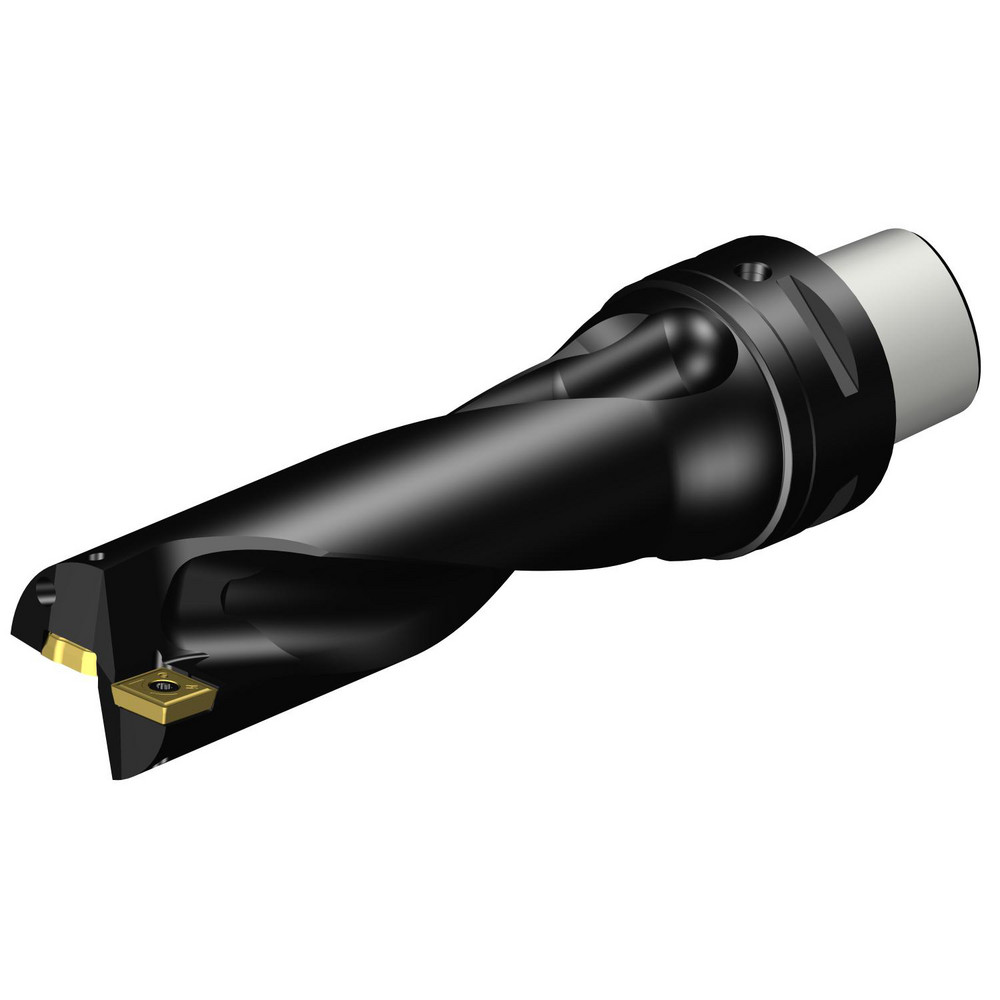

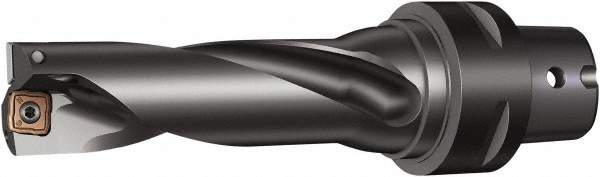

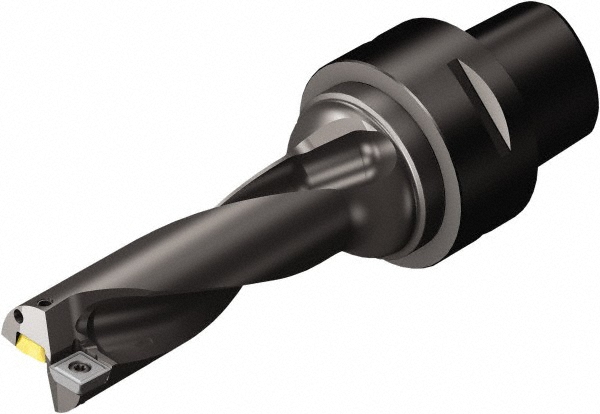

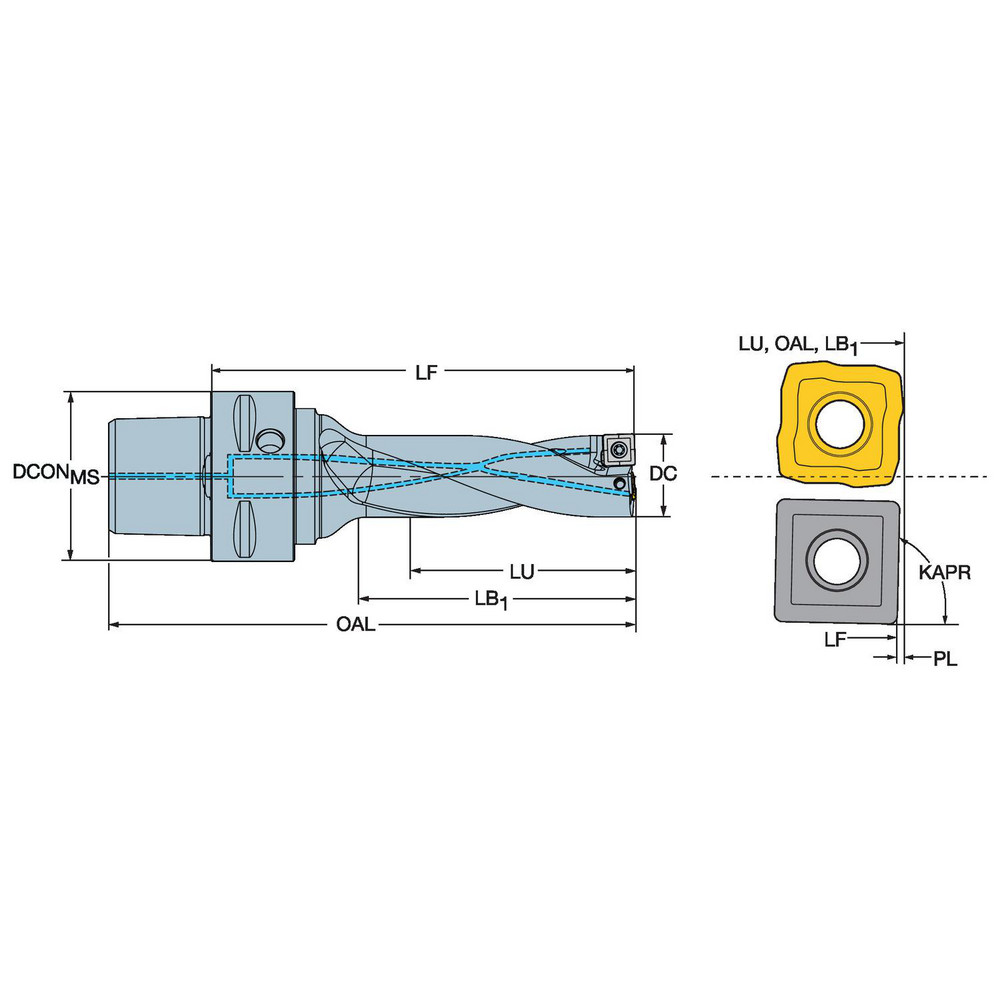

Modular Connection Shank, Uses 880 070406 & 0704W06 Inserts, Series CoroDrill 880
| Compatible Drill Style | 880 |
|---|---|
| Maximum Drill Diameter (mm) | 38.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.4961 |
| Maximum Drill Depth (Decimal Inch) | 4.6457 |
| Maximum Drill Depth (mm) | 114.69 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 50.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 4.0000 to 5.0000 |
| Maximum Drill Depth Range (mm) | 100.00 to 150.00 |
| Tool Material | Steel |
| Compatible Insert Style | 880 |
| Compatible Insert Size Code | 0704W06; 070406 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Series | CoroDrill 880 |
| Flute Length (Decimal Inch) | 4.4882 |
| Flute Length (mm) | 118.00 |
| Body Length (mm) | 165.31 |
| Body Length (Decimal Inch) | 6.5083 |
| Shank Length (Decimal Inch) | 1.2083 |
| Shank Length (mm) | 30.69 |
| Modular Connection Size | C5 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 12.40; 12.70 |
| UNSPSC Code | 23291503 |

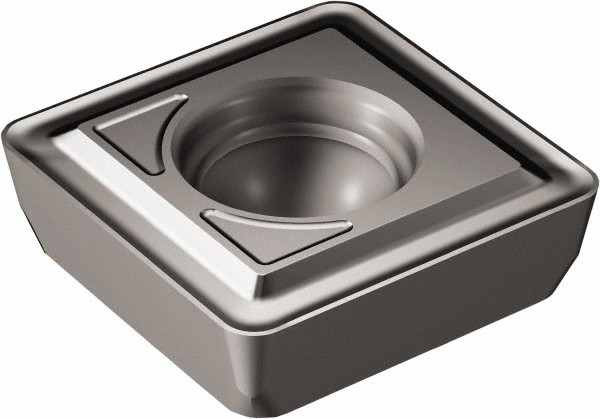

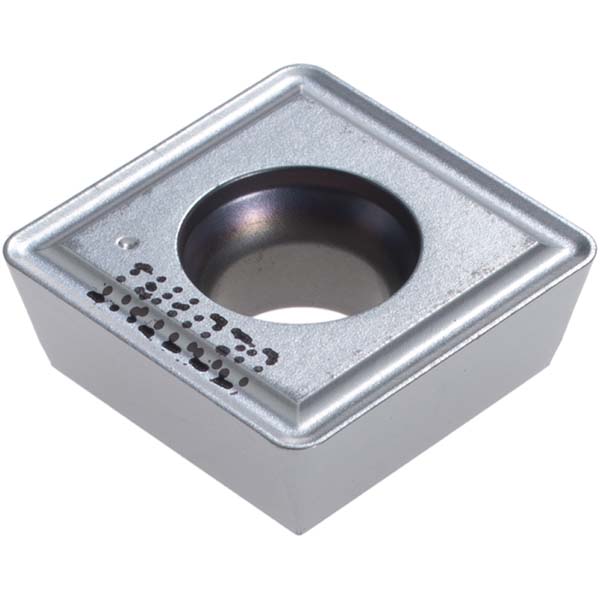

| Insert Compatibility | 880-070406H-C-GM; 880-0704W06H-P-GM |
| Collar Diameter (mm) | 35.00 |

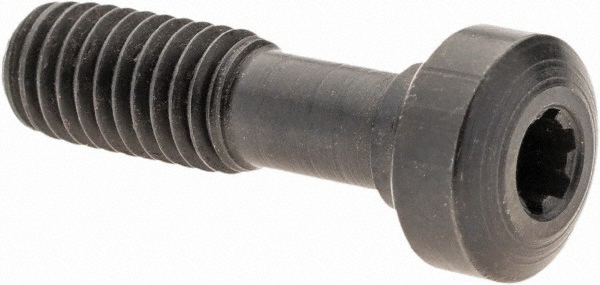

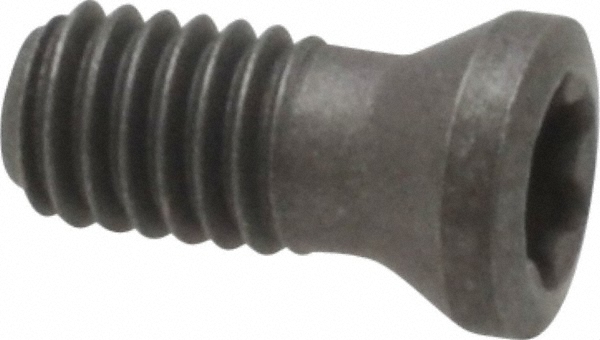

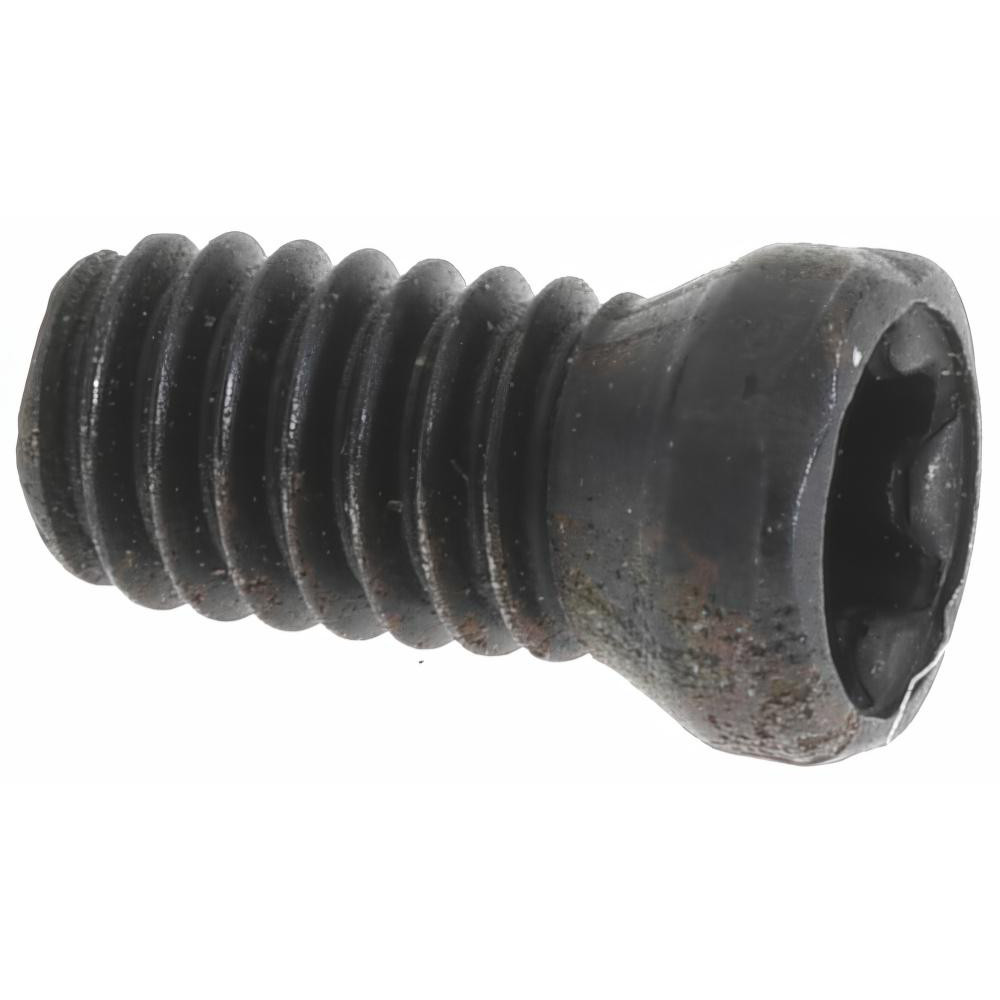

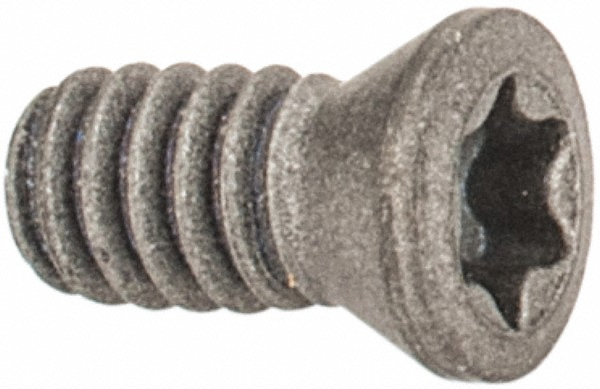

| Insert Lock Screw | 416.1-833 |
| Coolant Through | Yes |
| Country of Origin | VARIOUS |
