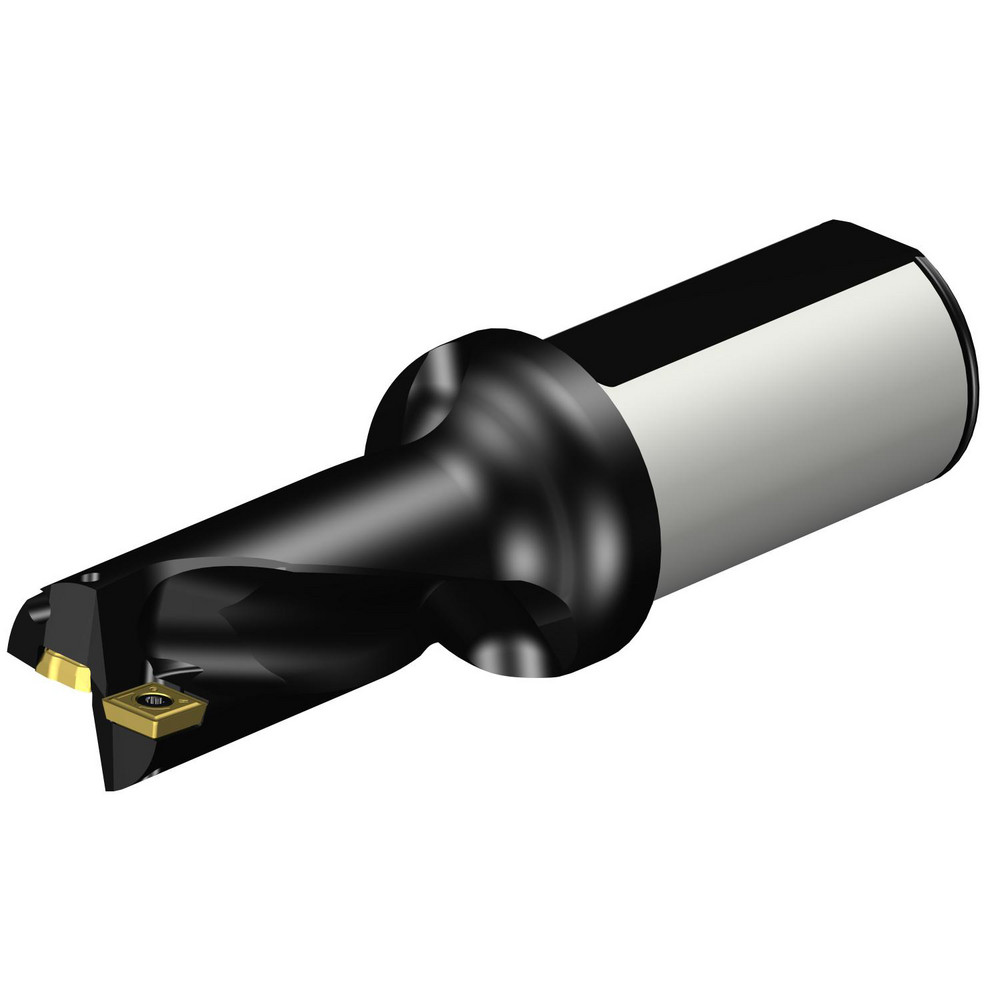

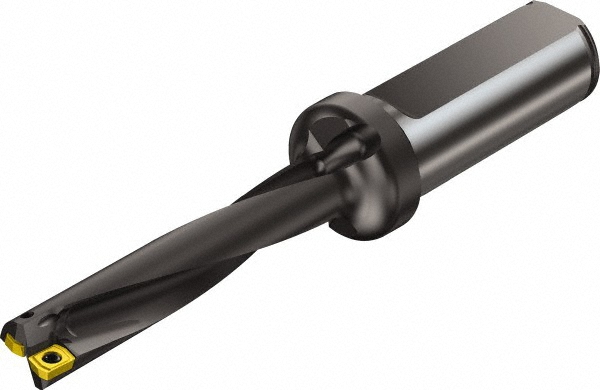

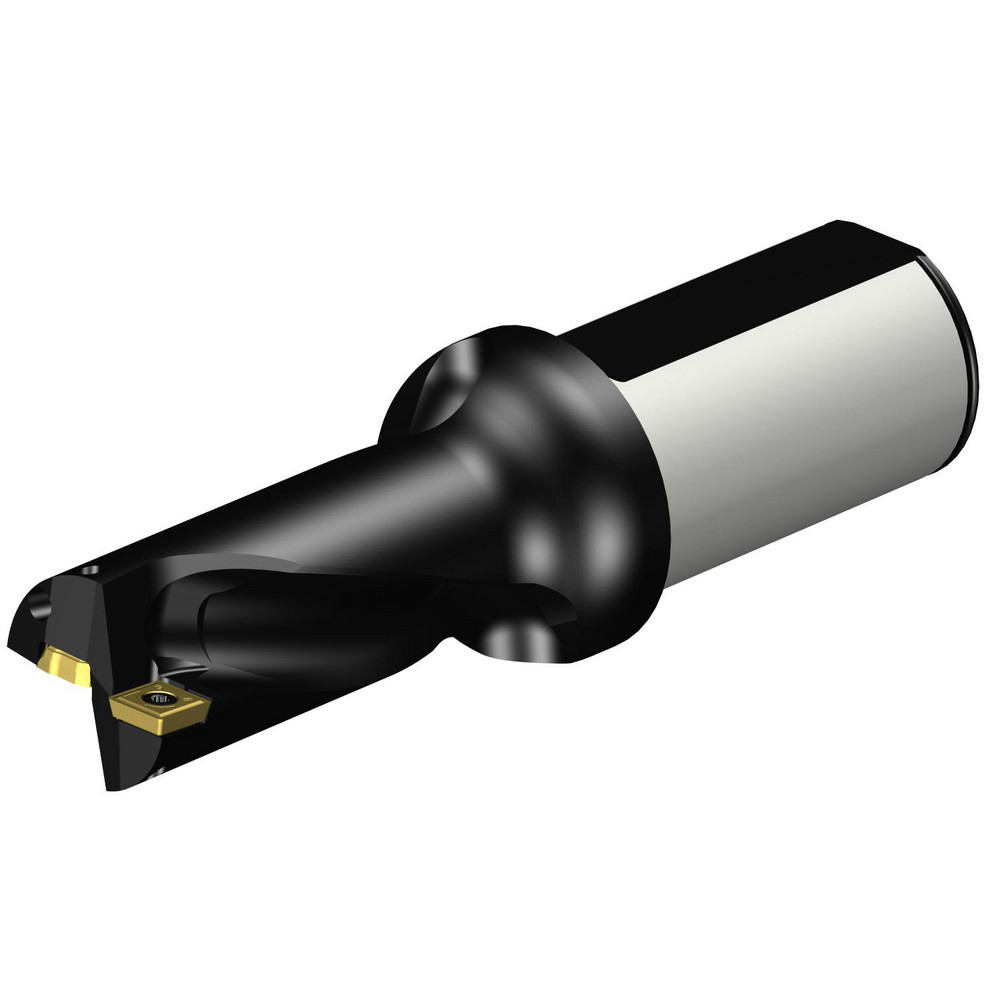

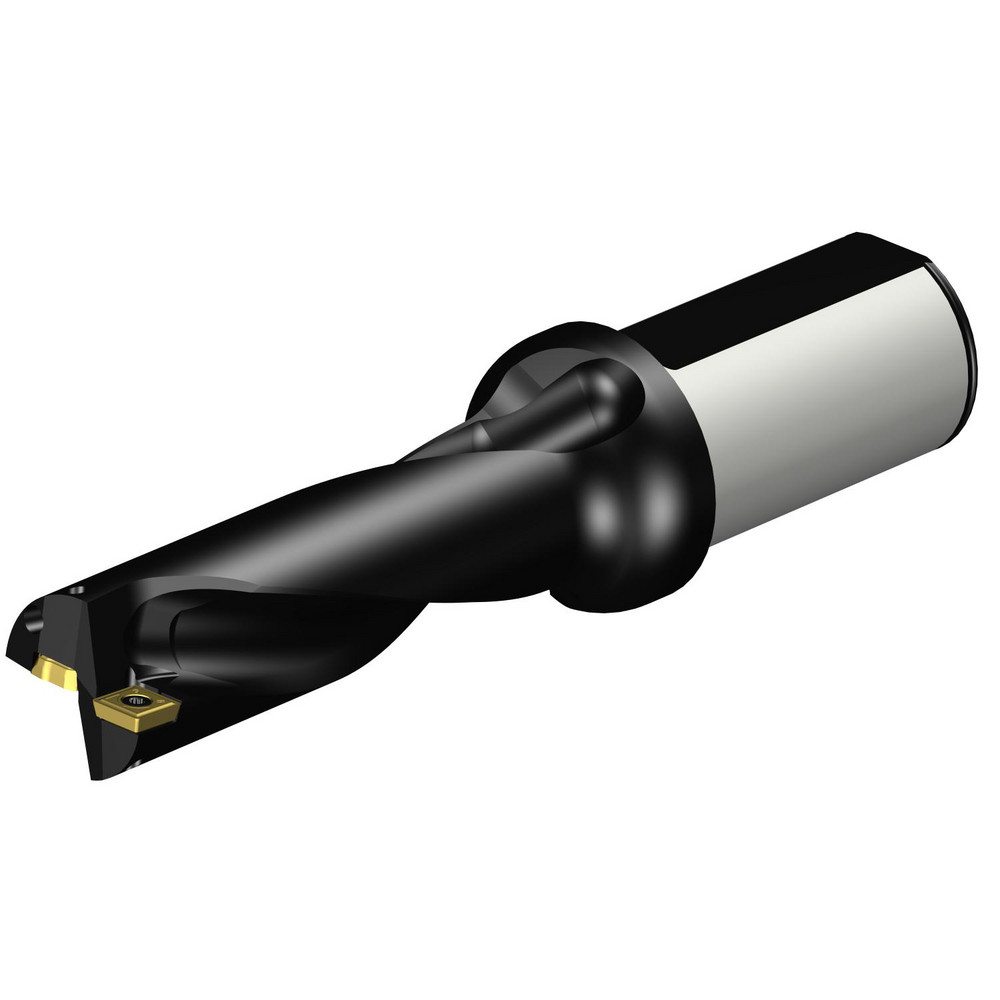

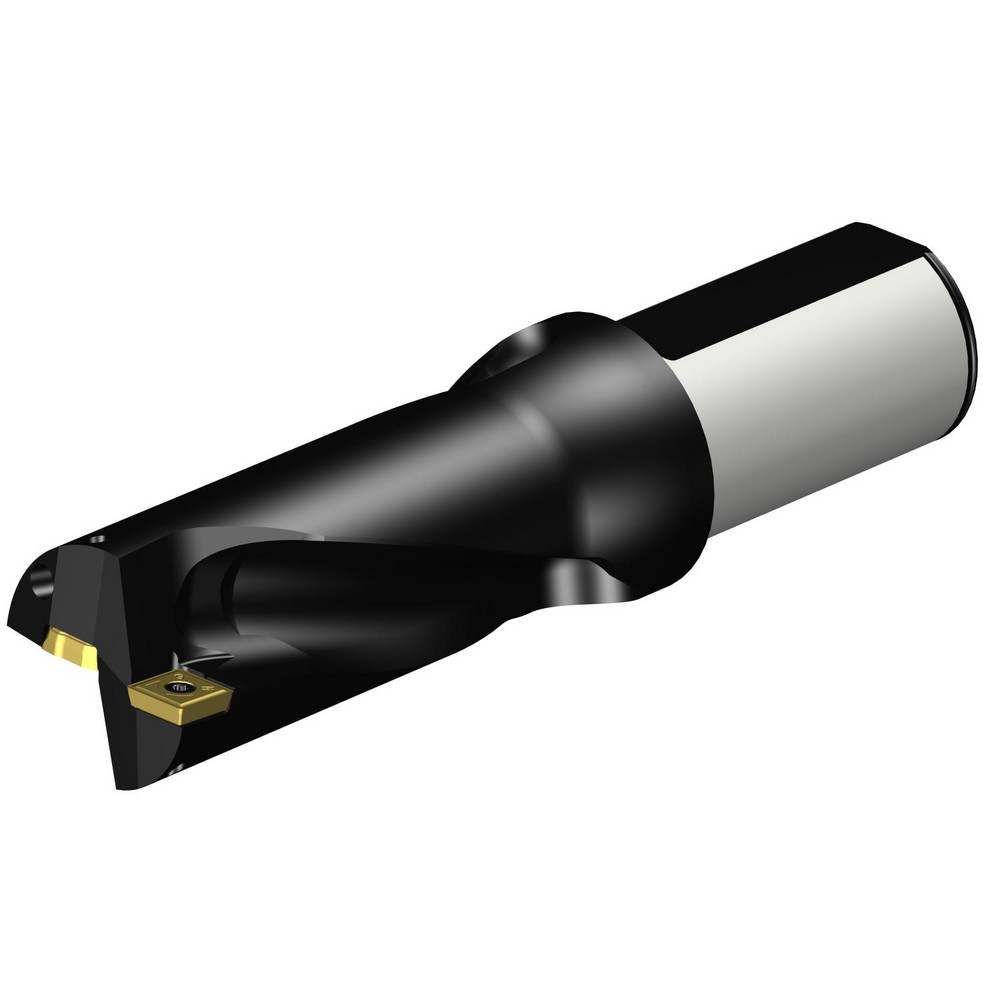

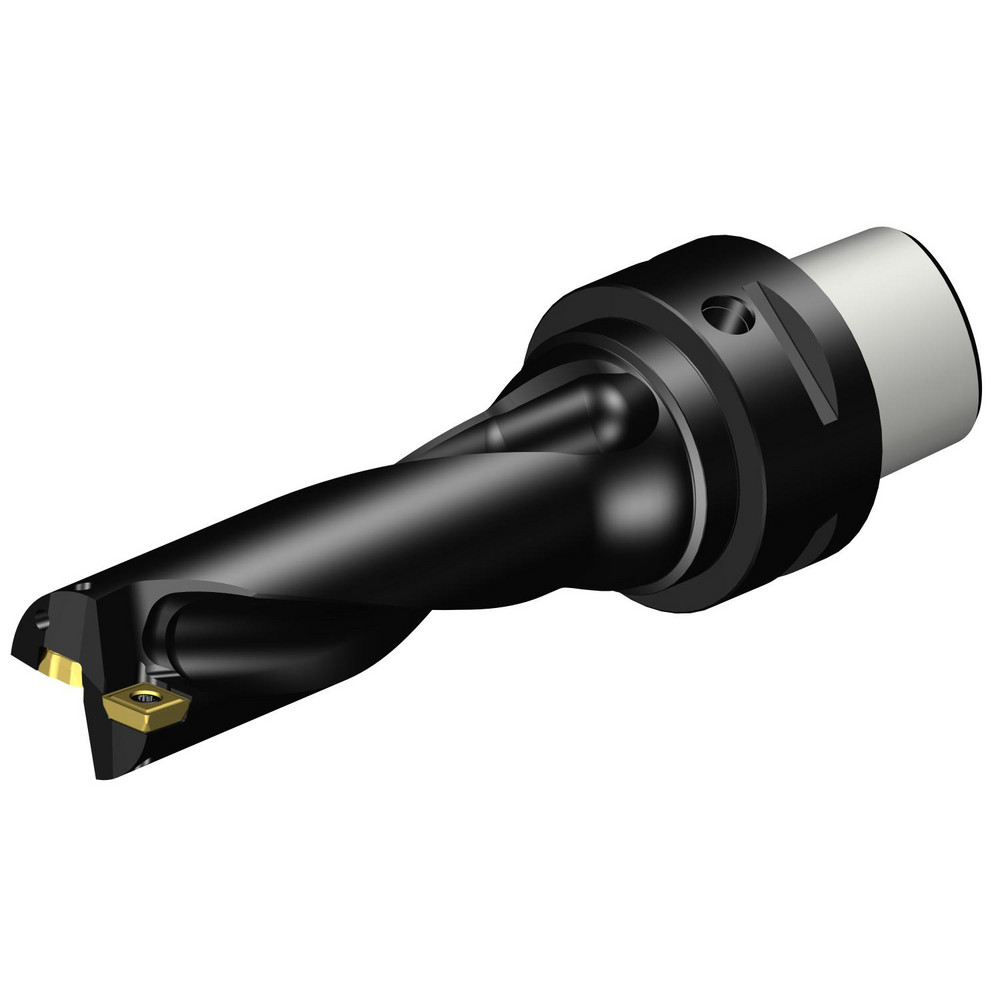

Weldon Flat & Flange Shank, Uses 880 070406 & 0704W06 Inserts, Series CoroDrill 880
| Compatible Drill Style | 880 |
|---|---|
| Maximum Drill Diameter (mm) | 38.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.5748 |
| Maximum Drill Depth (Decimal Inch) | 7.6378 |
| Maximum Drill Depth (mm) | 190.61 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Shank Diameter (mm) | 40.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 7.0000 to 10.0000 |
| Maximum Drill Depth Range (mm) | 150.00 to 200.00 |
| Tool Material | Steel |
| Compatible Insert Style | 880 |
| Compatible Insert Size Code | 0704W06; 070406 |
| Drill Depth by Diameter Ratio | 5xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | CoroDrill 880 |
| Flute Length (Decimal Inch) | 7.4803 |
| Flute Length (mm) | 194.00 |
| Body Length (mm) | 221.39 |
| Body Length (Decimal Inch) | 8.7161 |
| Shank Length (Decimal Inch) | 2.7559 |
| Shank Length (mm) | 70.61 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 12.40; 12.70 |
| UNSPSC Code | 23291503 |

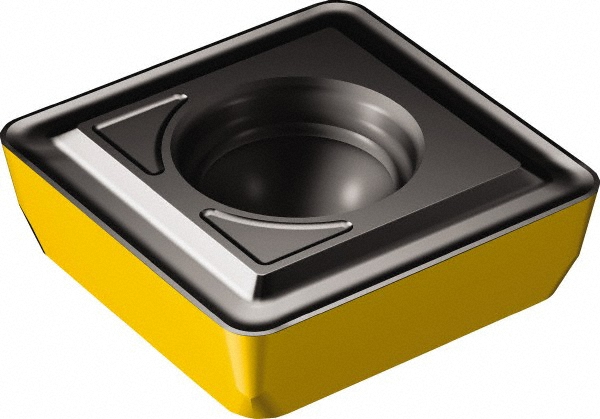

| Insert Compatibility | 880-070406H-C-GM; 880-0704W06H-P-GM |
| Insert Lock Screw | 416.1-833 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| MSC Number | MSC# 54957592 |
