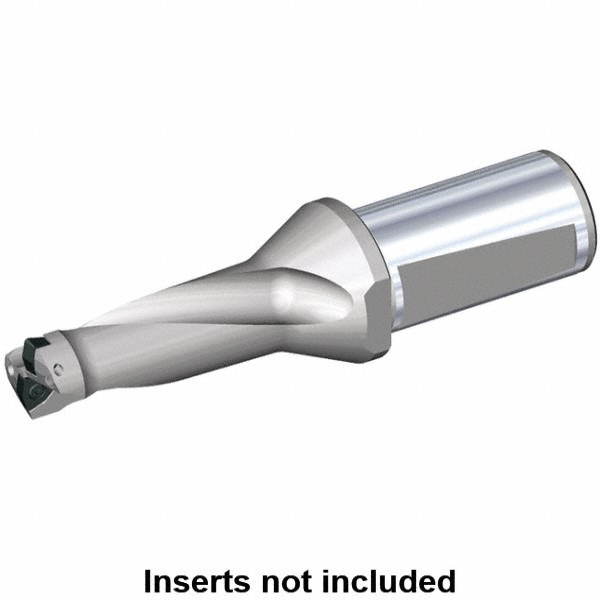

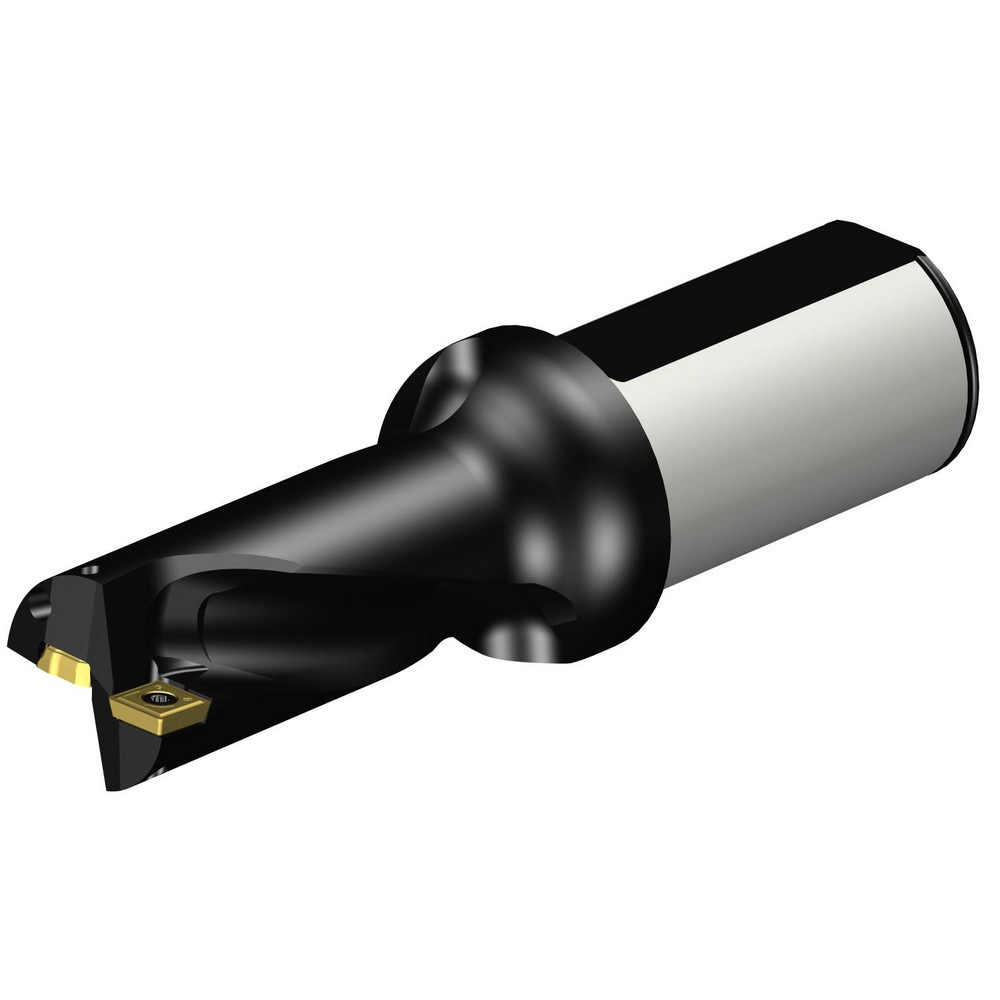

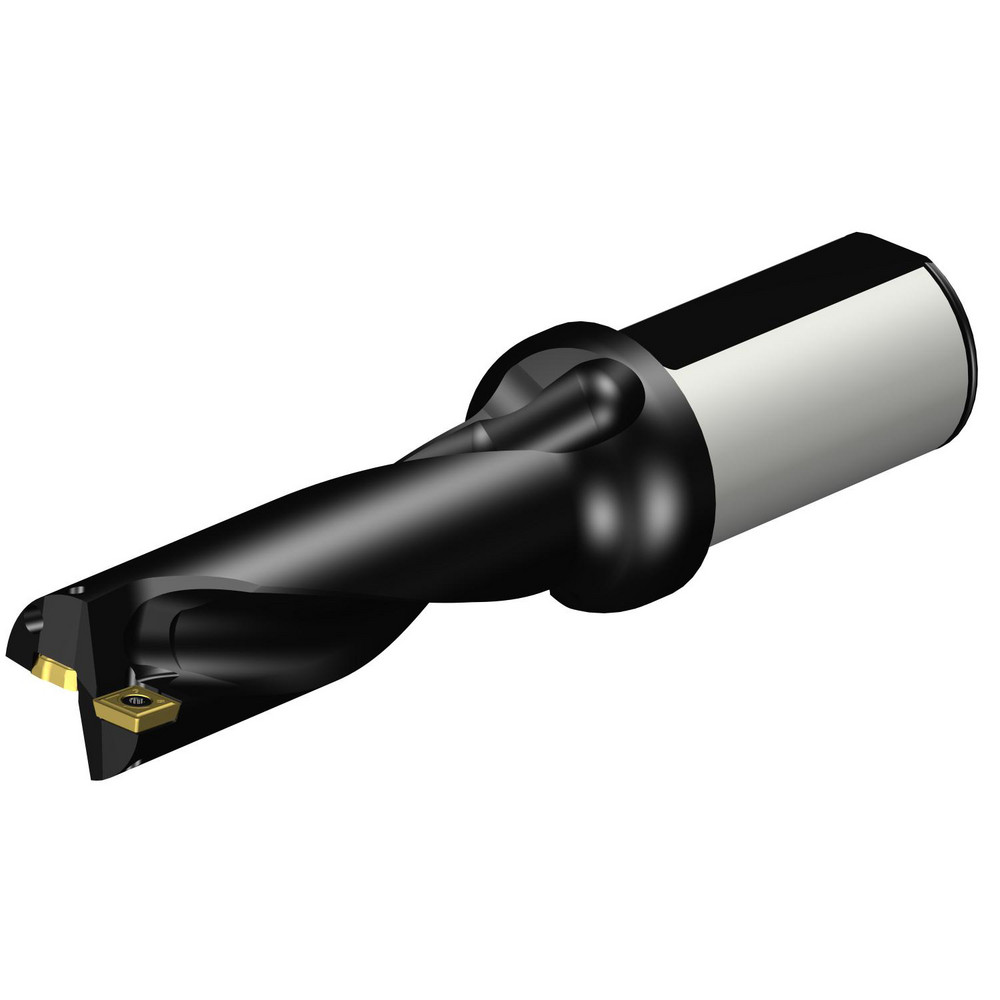

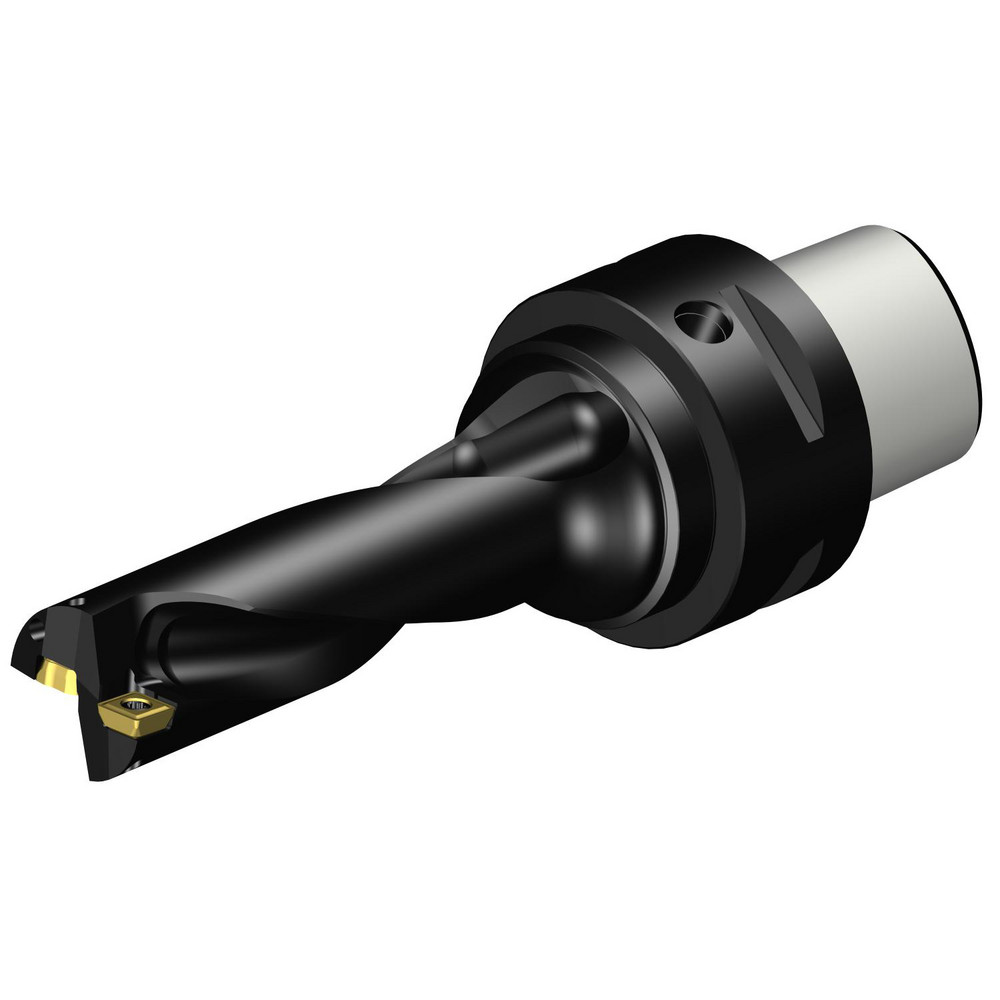

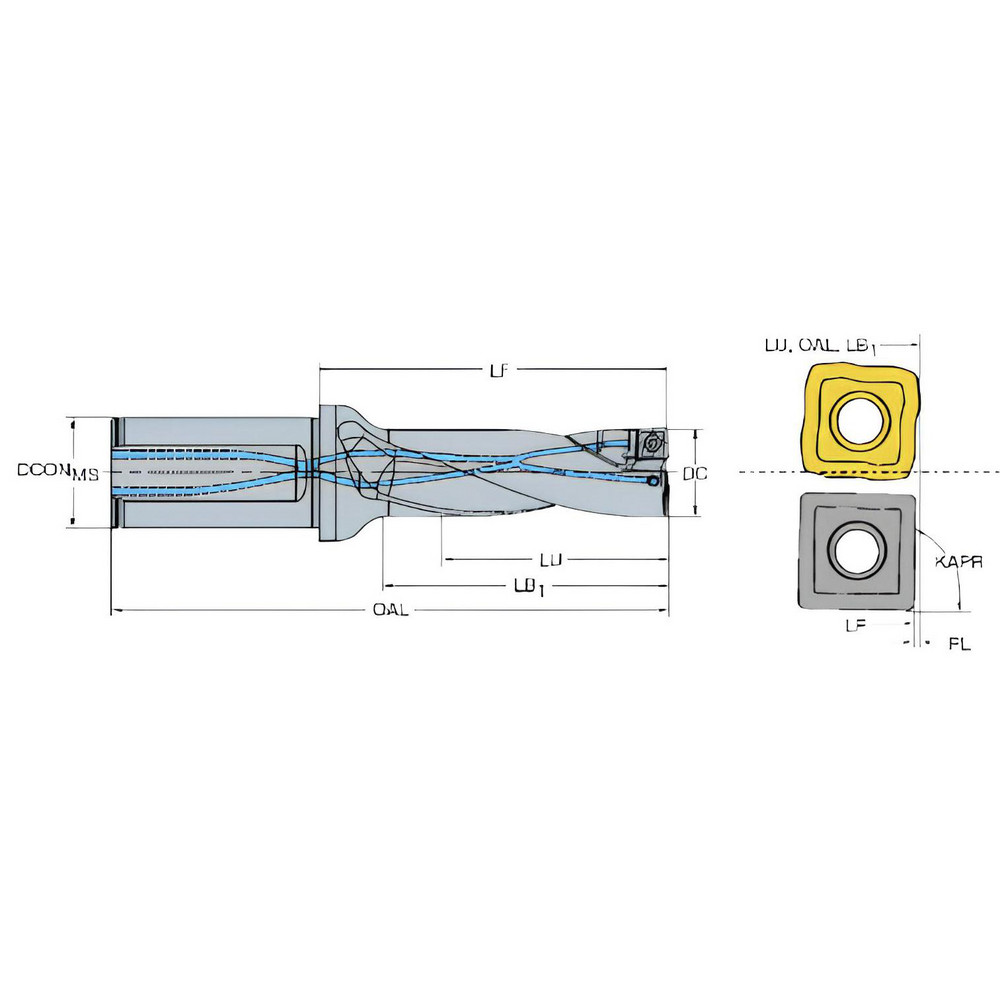

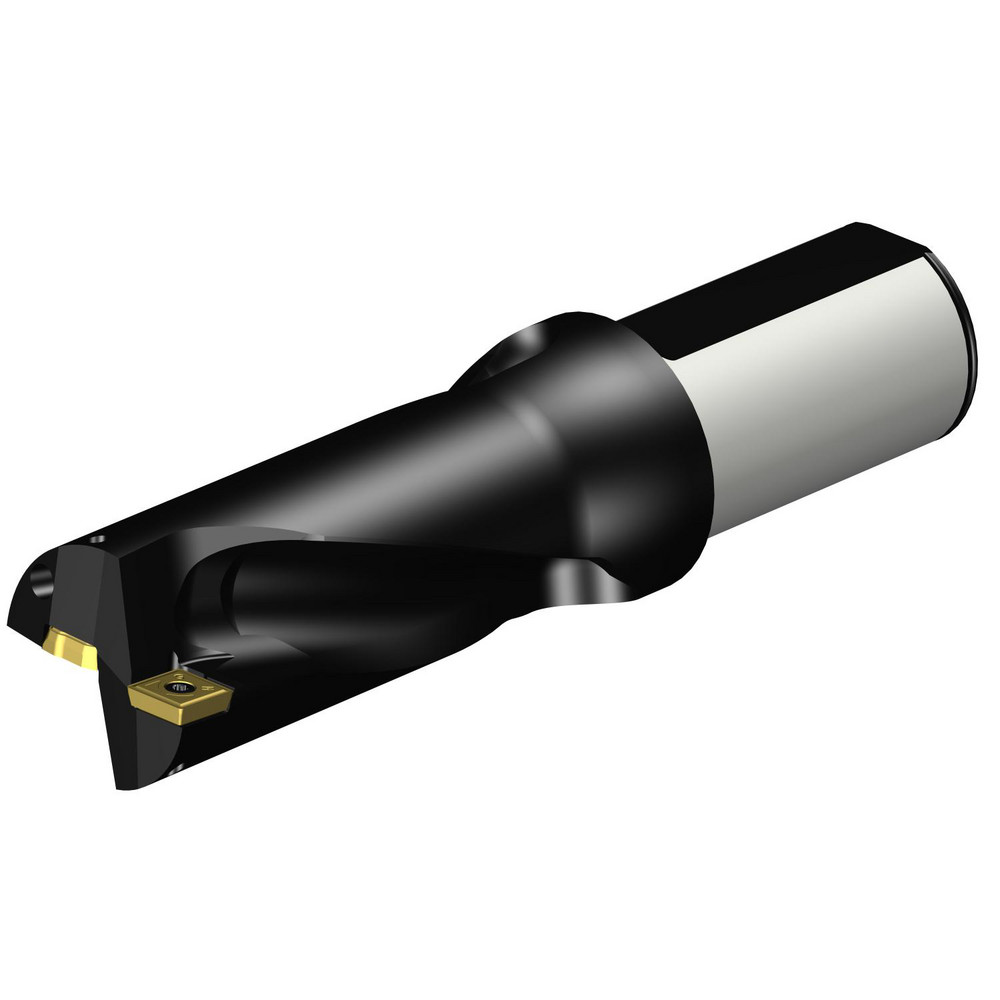

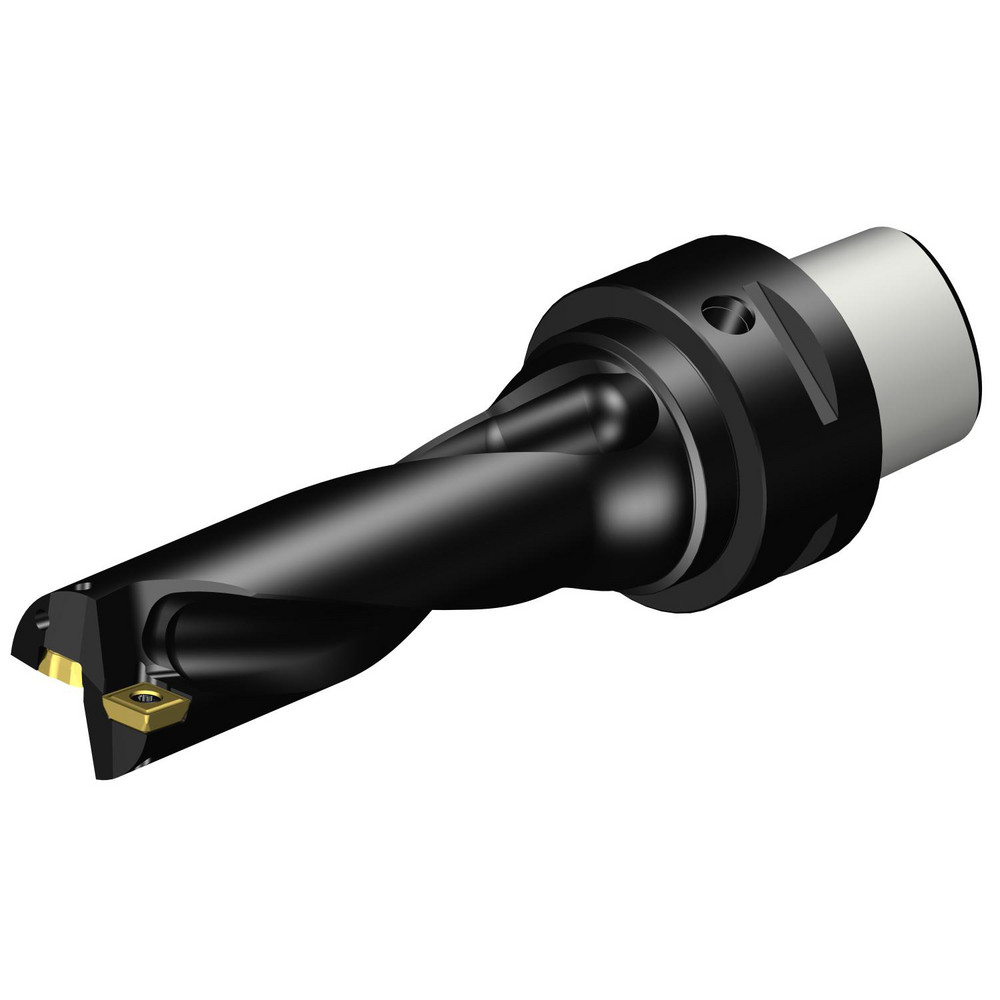

Weldon Flat & Flange Shank, Uses 880 090608 & 0906W08 Inserts, Series CoroDrill 880
| Compatible Drill Style | 880 |
|---|---|
| Maximum Drill Diameter (mm) | 62.00 |
| Maximum Drill Diameter (Decimal Inch) | 2.4409 |
| Maximum Drill Depth (Decimal Inch) | 7.5984 |
| Maximum Drill Depth (mm) | 186.95 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Shank Diameter (mm) | 40.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 7.0000 to 10.0000 |
| Maximum Drill Depth Range (mm) | 150.00 to 200.00 |
| Tool Material | Steel |
| Compatible Insert Style | 880 |
| Compatible Insert Size Code | 090608; 0906W08 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | CoroDrill 880 |
| Flute Length (Decimal Inch) | 7.3228 |
| Flute Length (mm) | 193.00 |
| Body Length (mm) | 234.05 |
| Body Length (Decimal Inch) | 9.2146 |
| Shank Length (Decimal Inch) | 2.7559 |
| Shank Length (mm) | 70.95 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 17.90; 18.60 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | 880-0906W08H-P-GM; 880-090608H-C-GM |
| Insert Lock Screw | 416.1-834 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| MSC Number | MSC# 54957659 |
