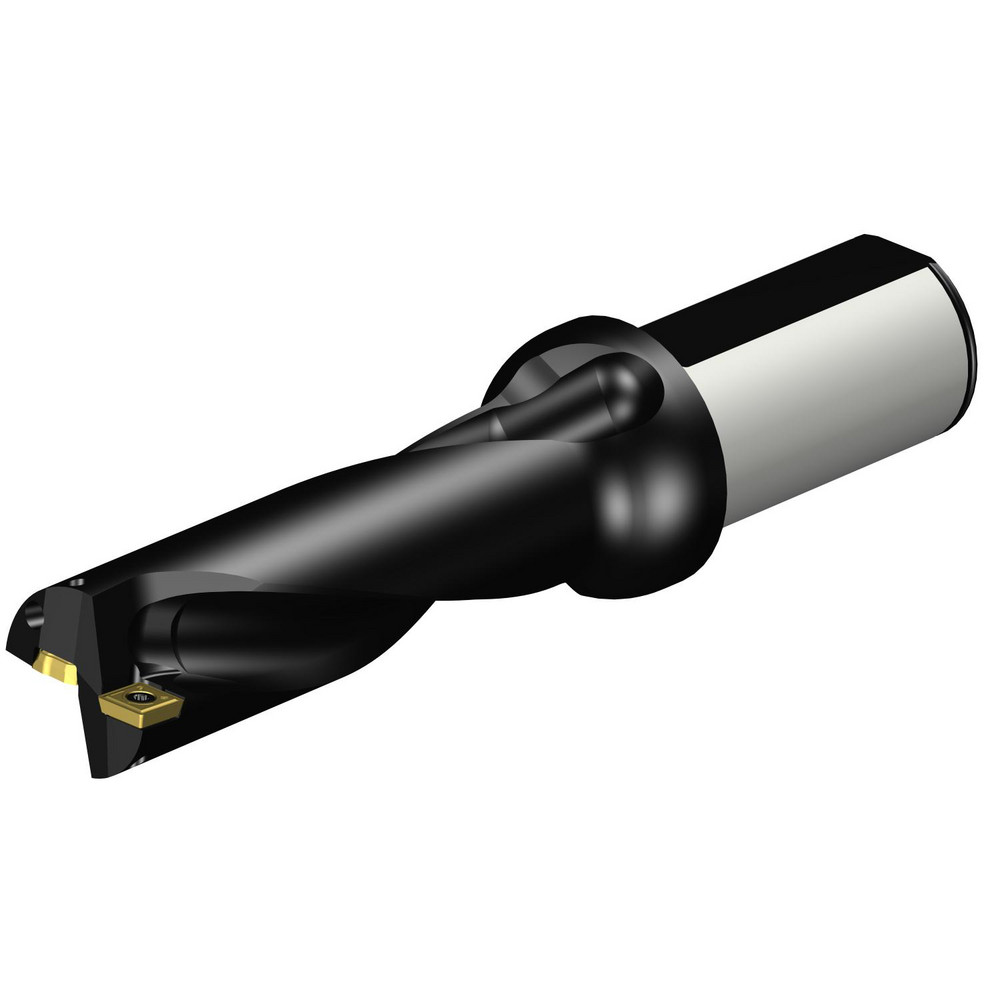

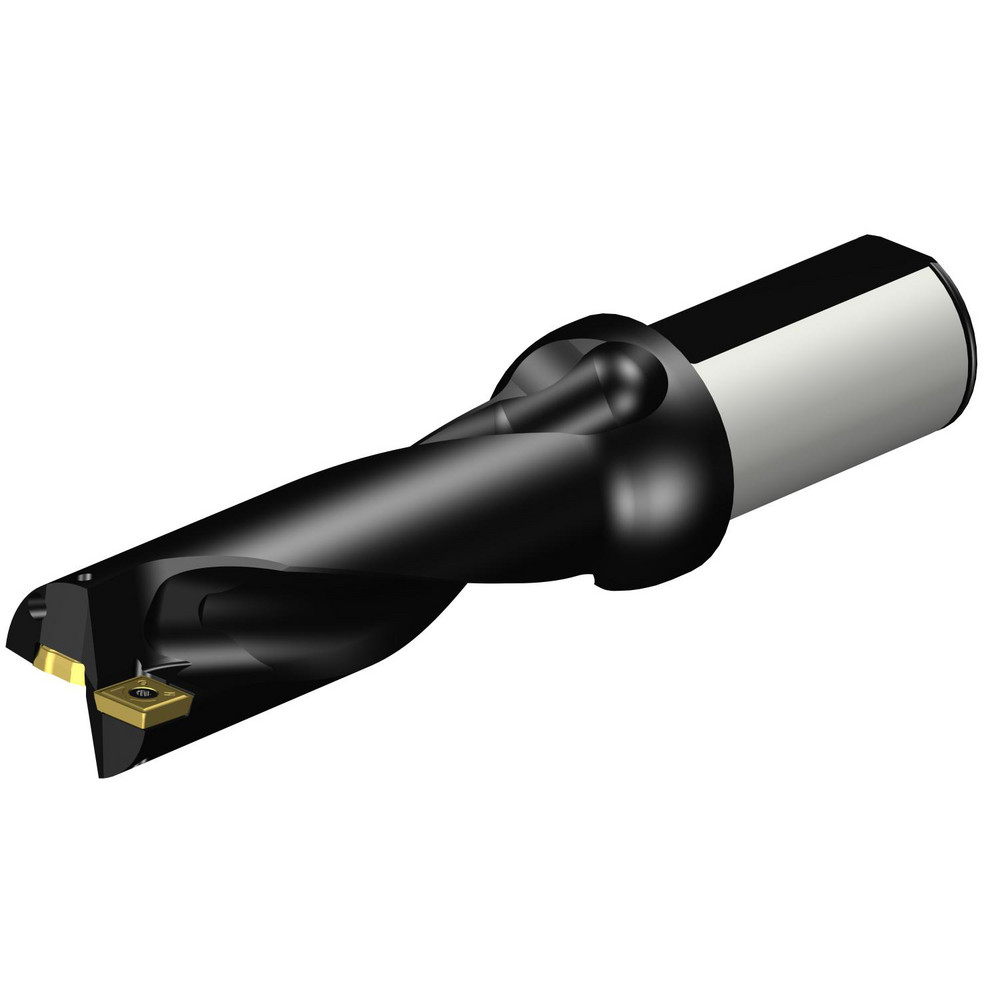

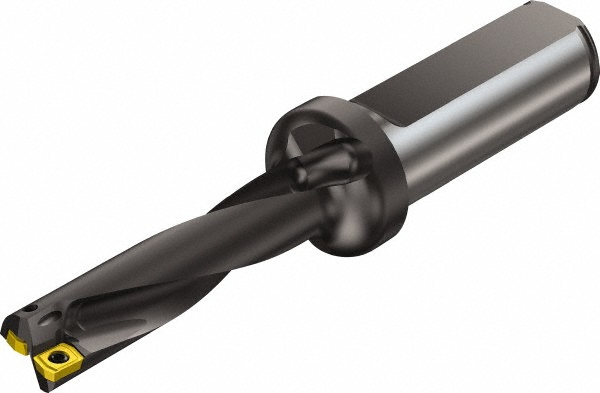

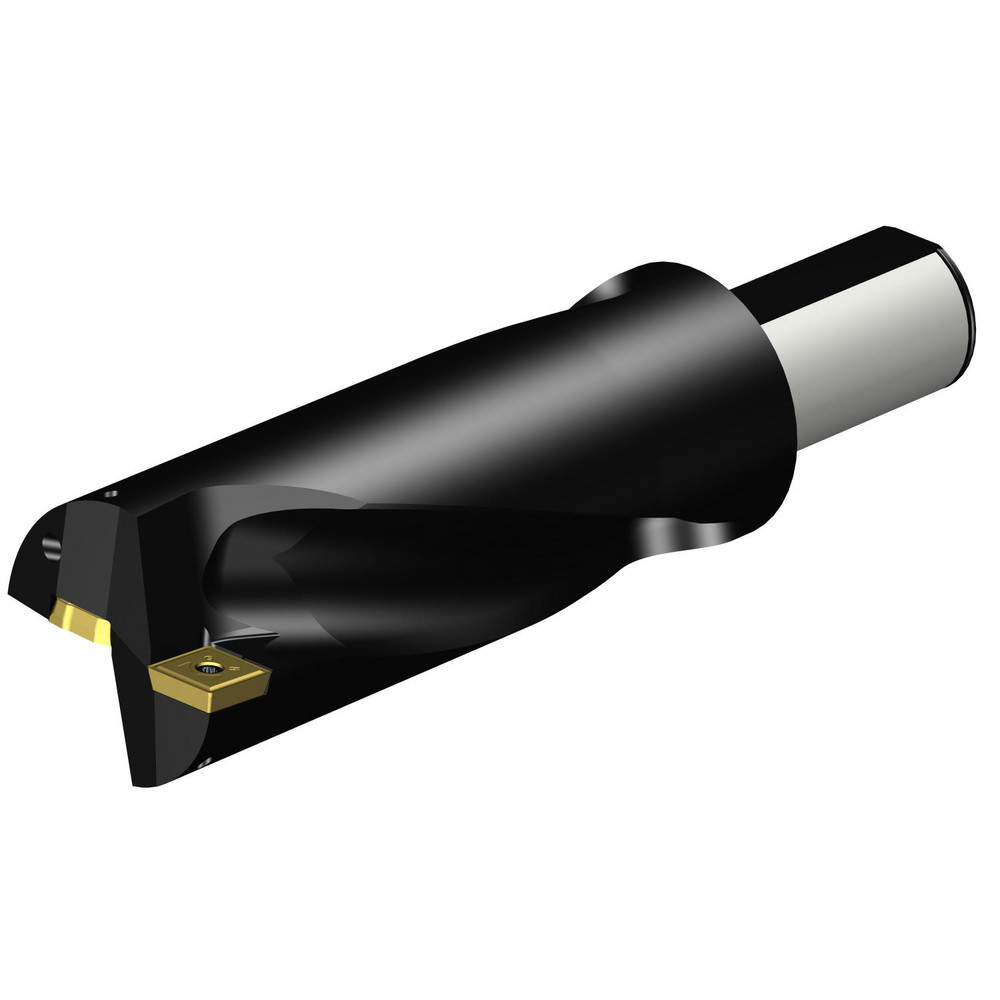

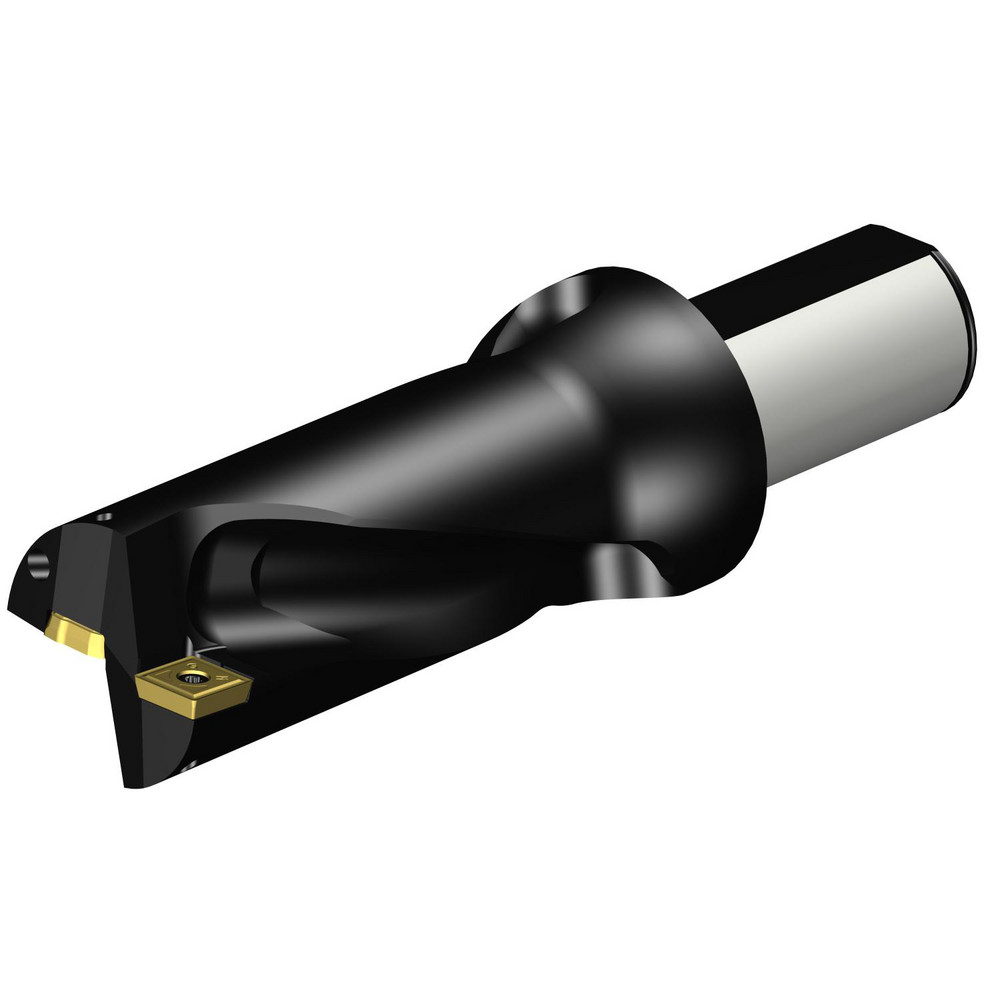

Weldon Flat & Flange Shank, Uses 880 070406 & 0704W06 Inserts, Series CoroDrill 880

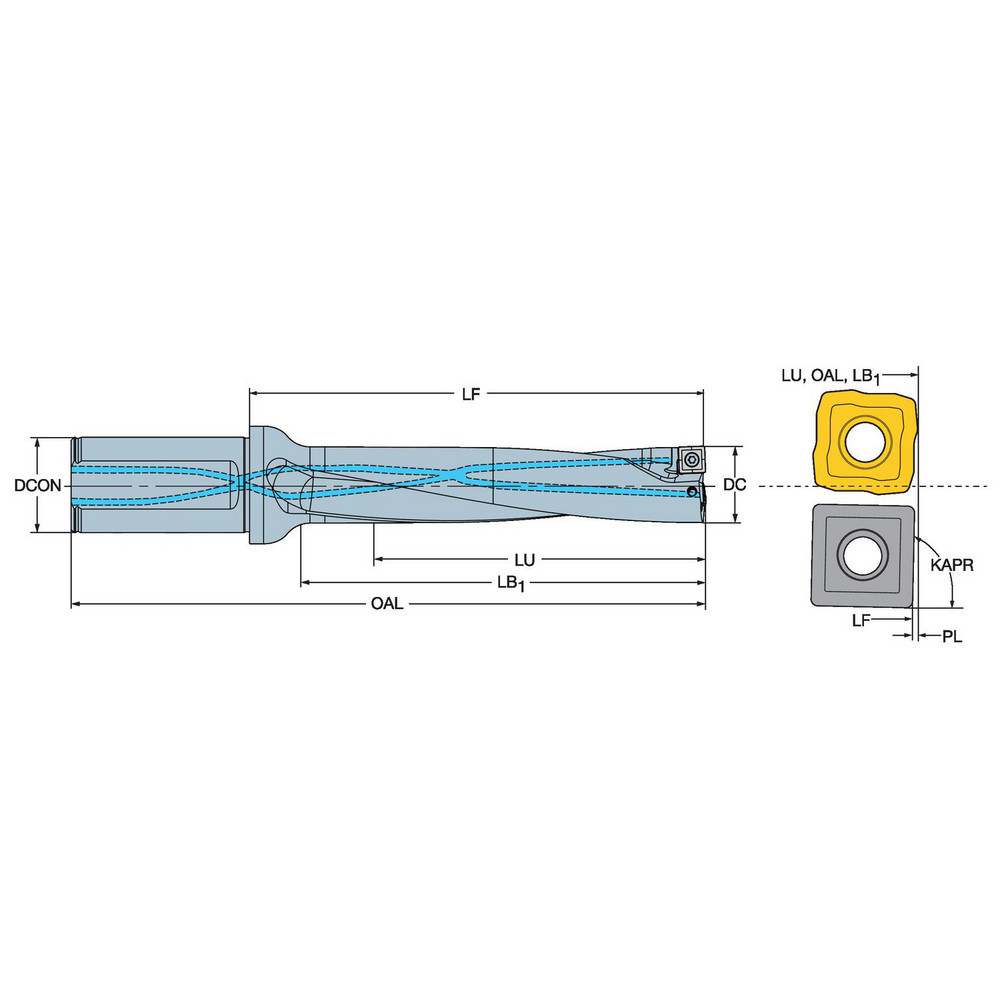

| Compatible Drill Style | A880 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 1.6344 |
| Maximum Drill Depth (Decimal Inch) | 7.8346 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 7.0000 to 10.0000 |
| Tool Material | Steel |
| Compatible Insert Style | 880 |
| Compatible Insert Size Code | 0704W06; 070406 |
| Drill Depth by Diameter Ratio | 5xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 11.8409 |
| Series | CoroDrill 880 |
| Flute Length (Decimal Inch) | 7.9660 |
| Body Length (Decimal Inch) | 9.0604 |
| Shank Length (Decimal Inch) | 2.7805 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.4980; 0.4860 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | 880-070406H-C-GM; 880-0704W06H-P-GM |
| Insert Lock Screw | 416.1-833 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 54957733 |
