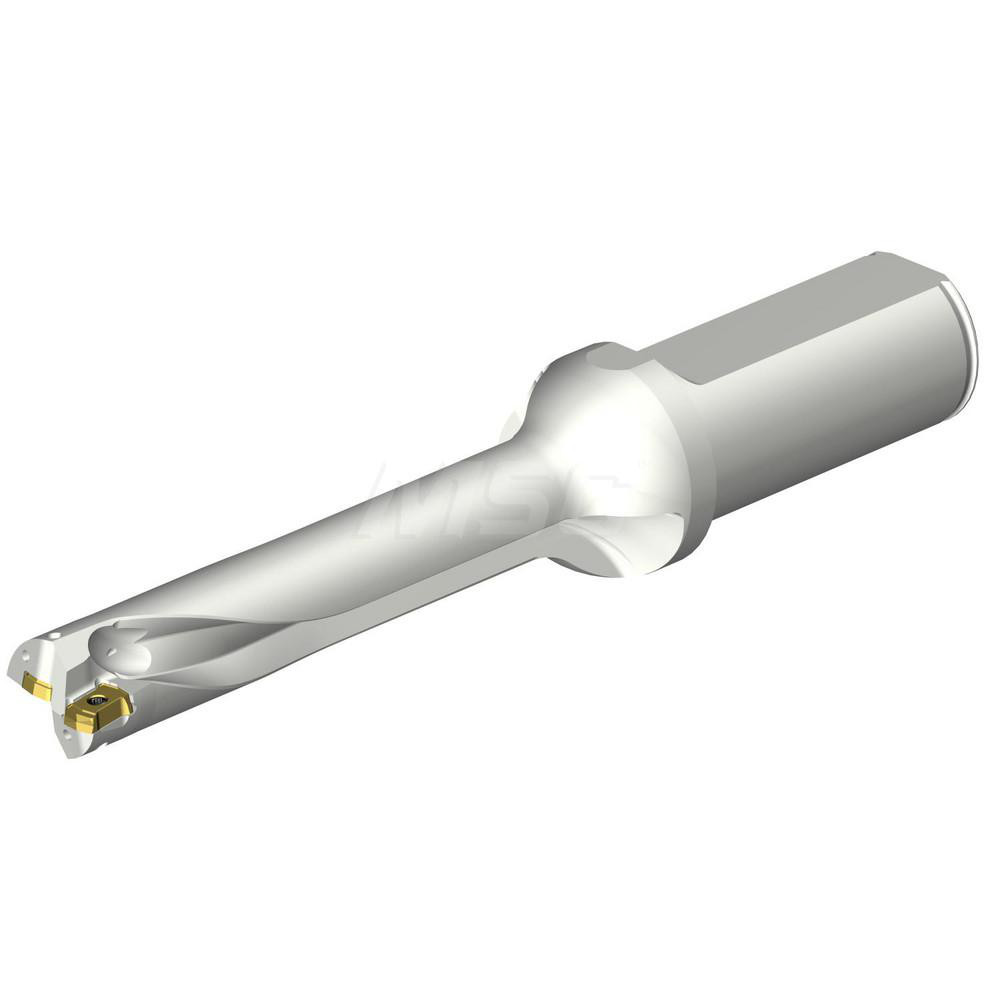

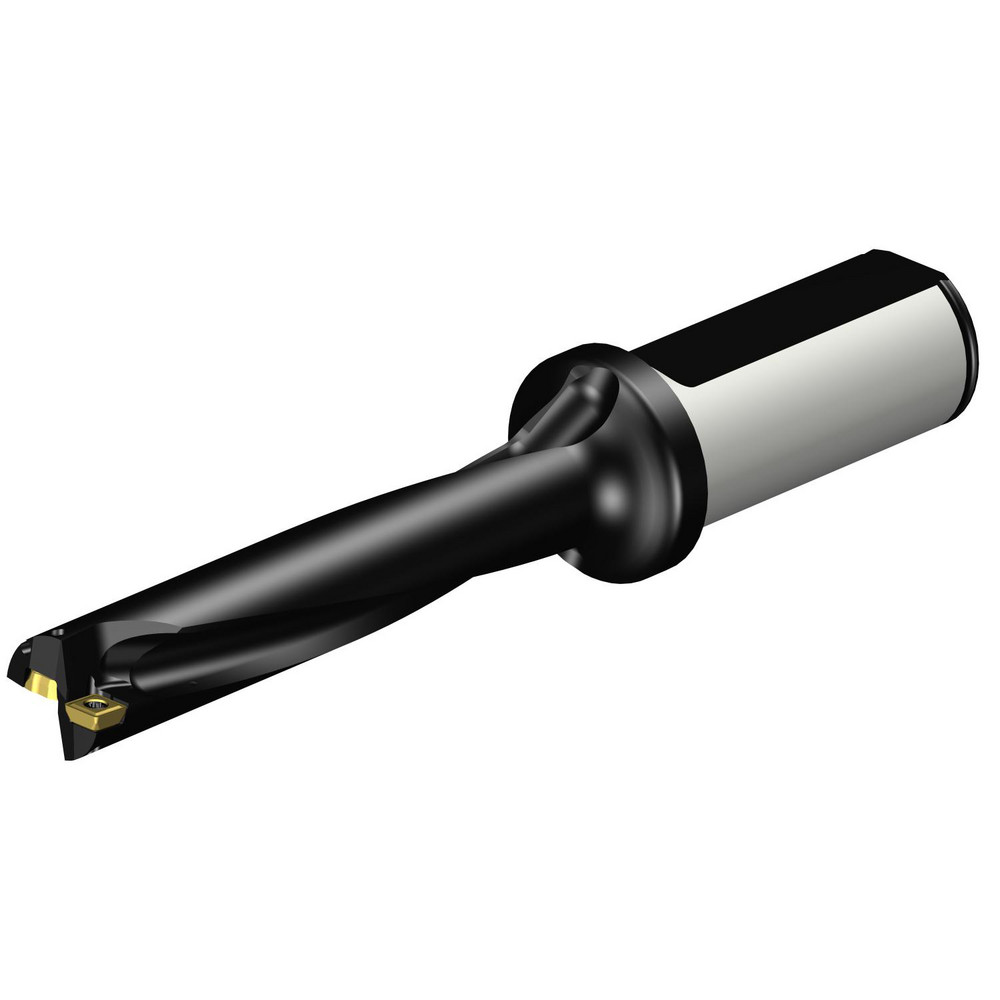

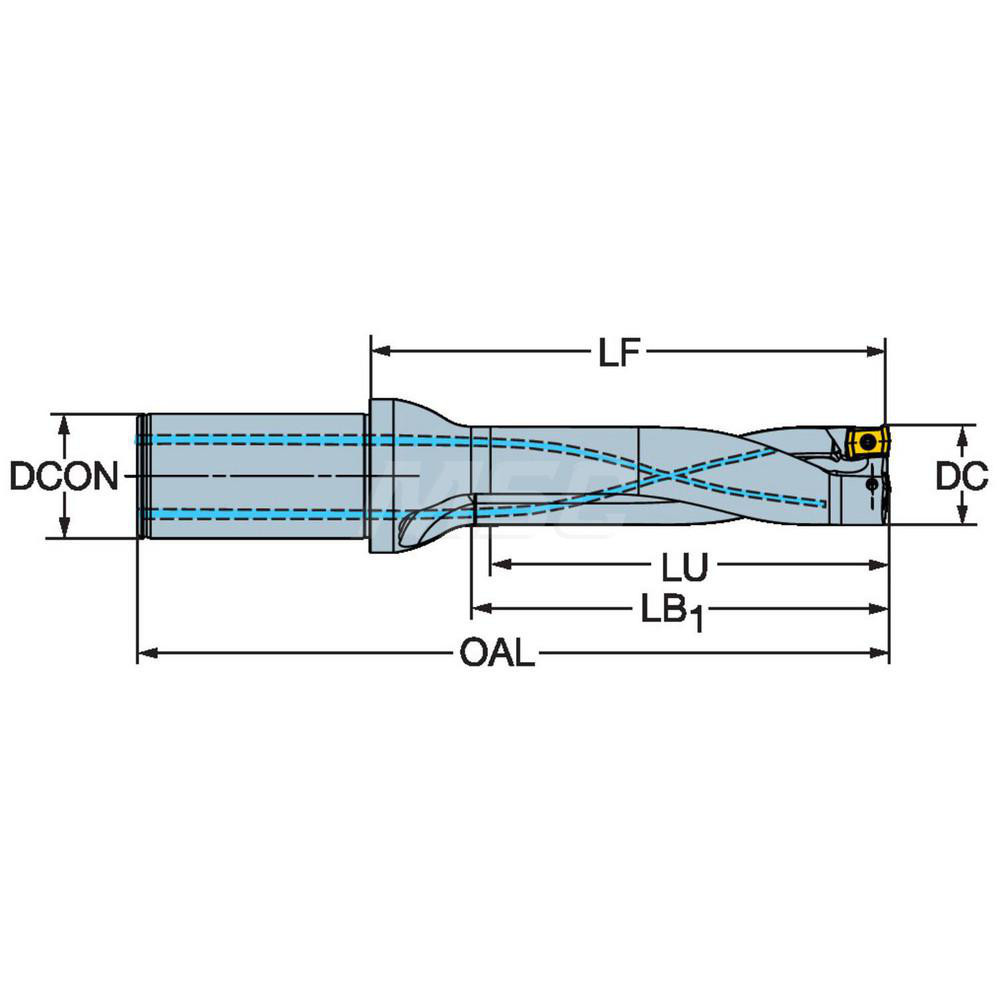

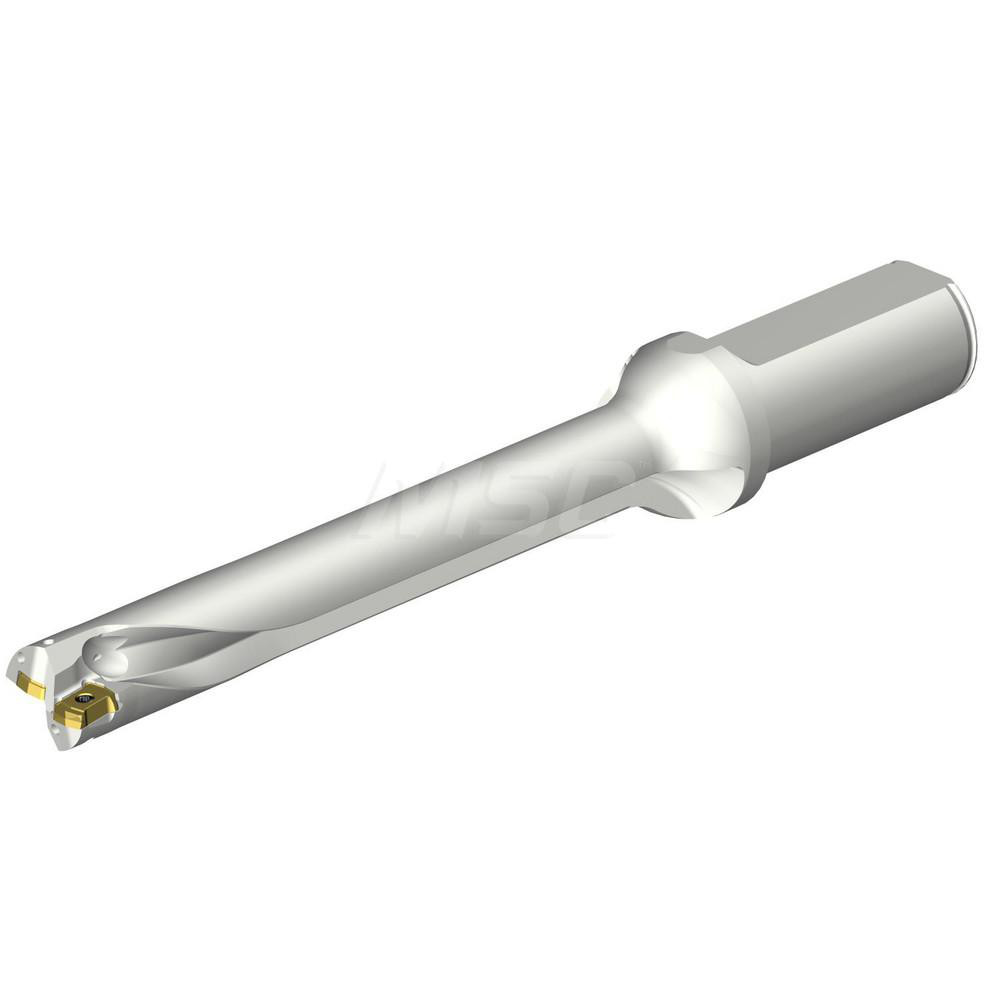

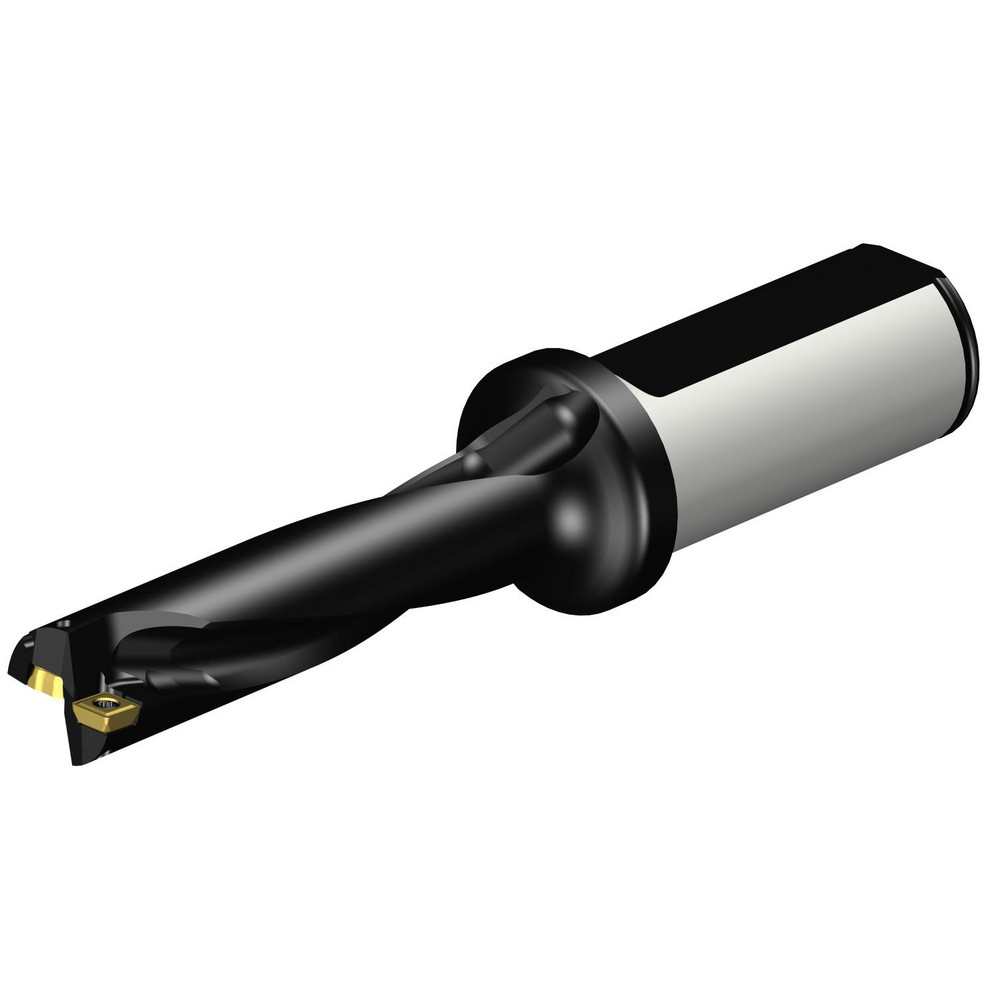

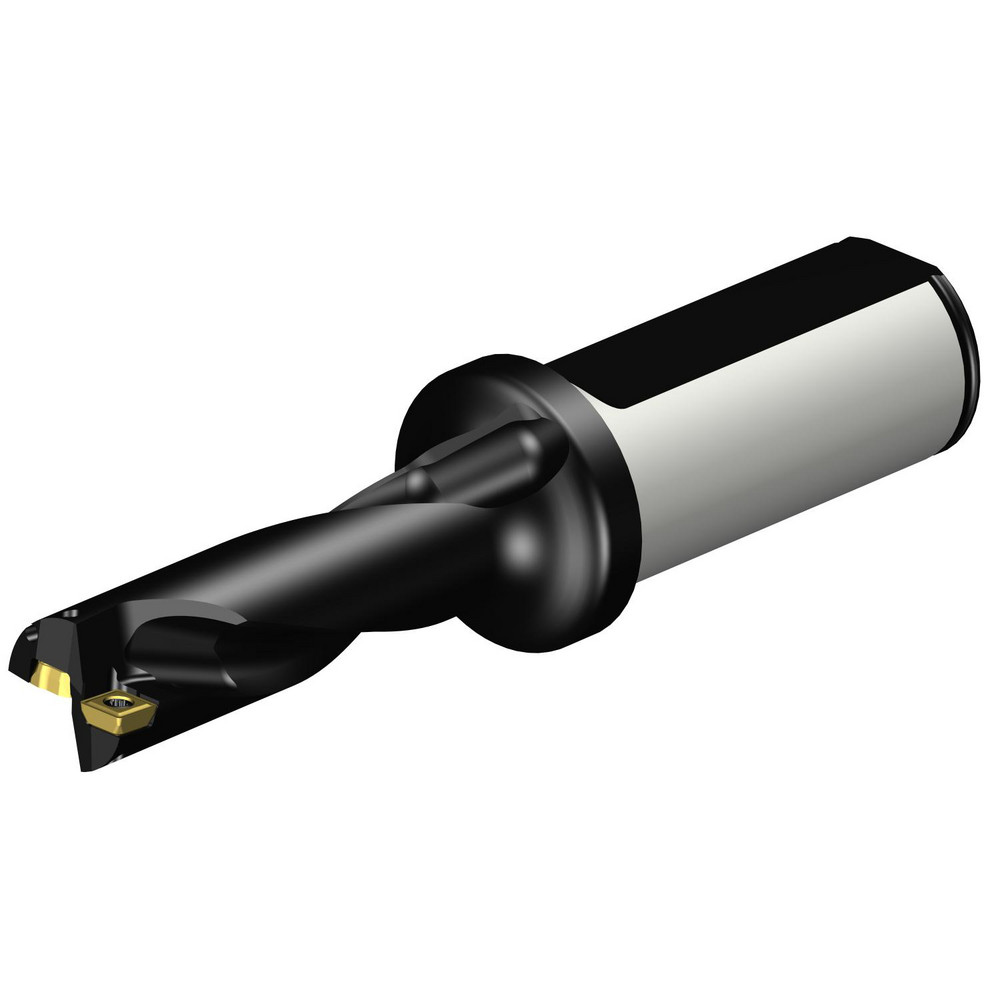

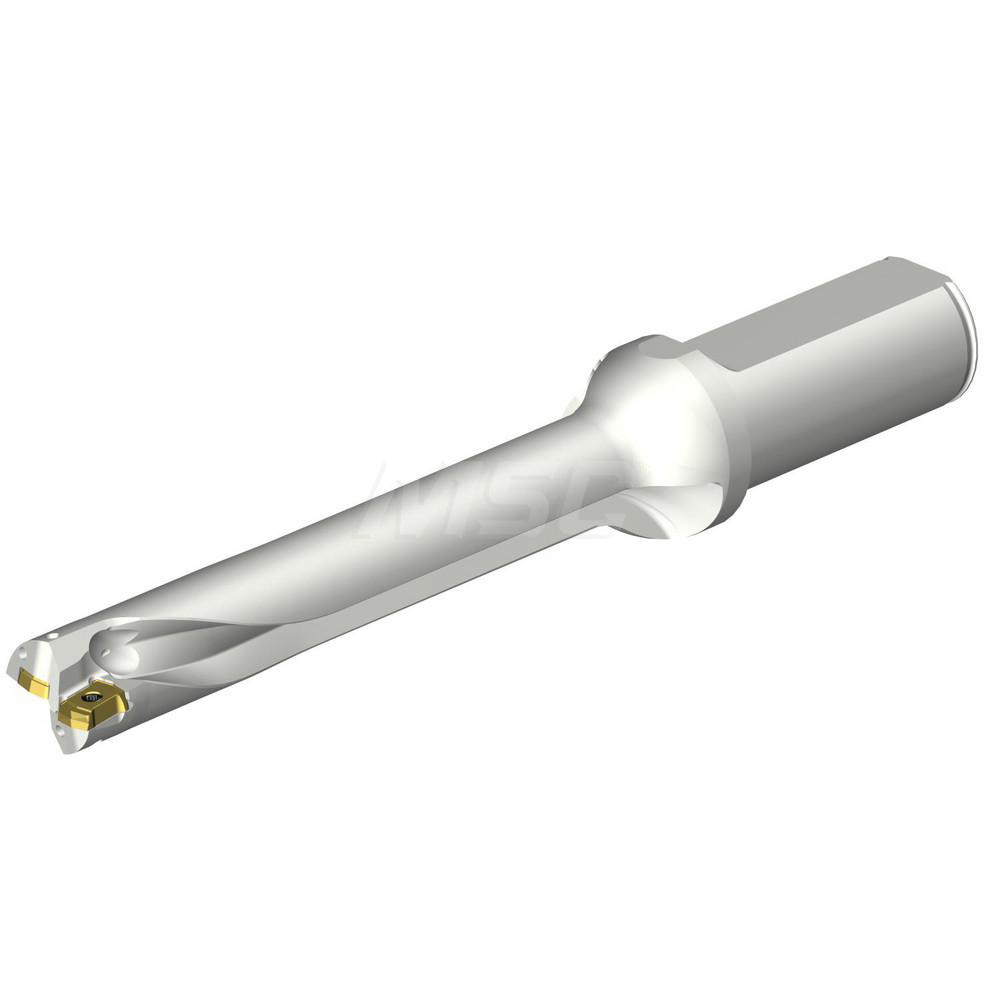

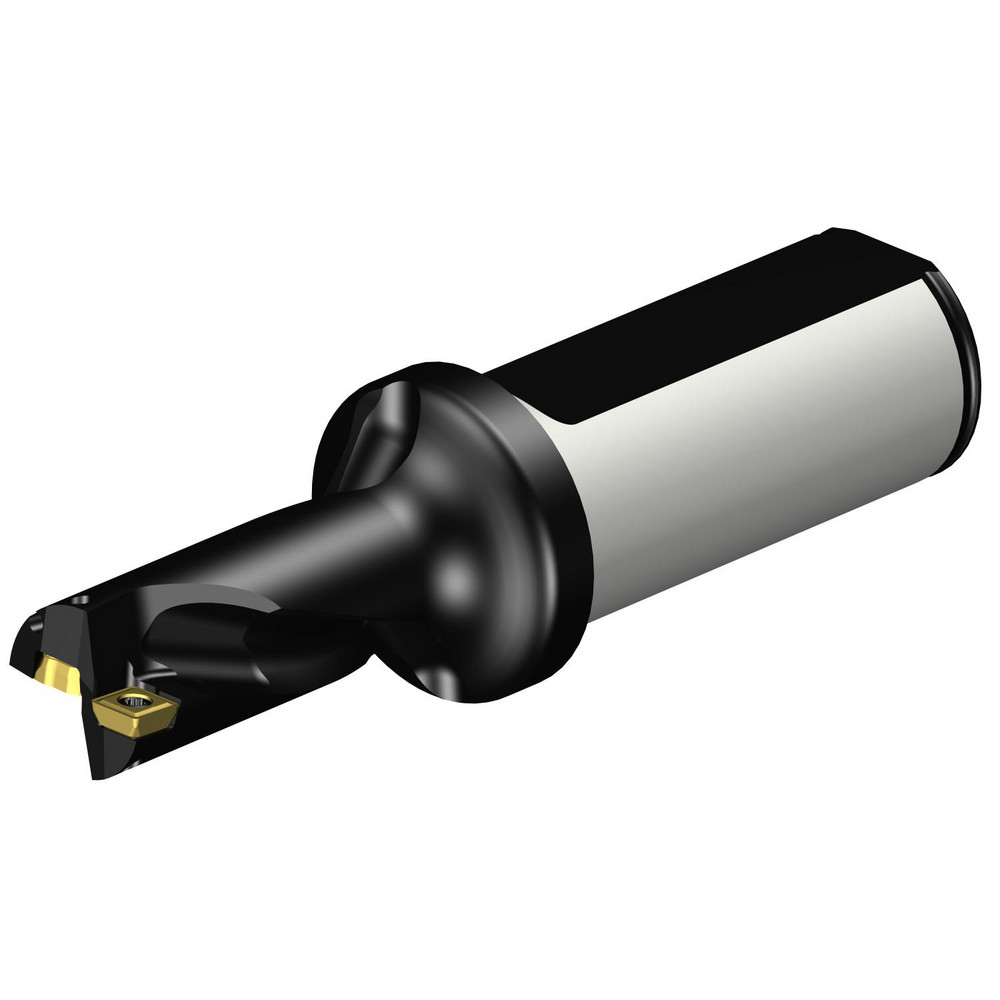

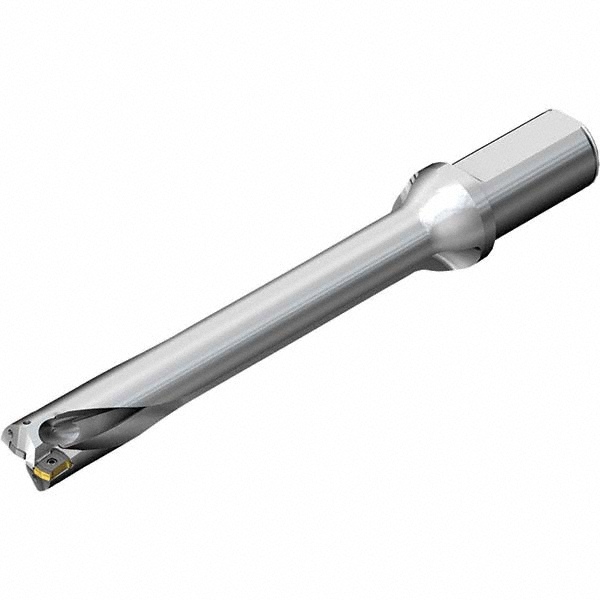

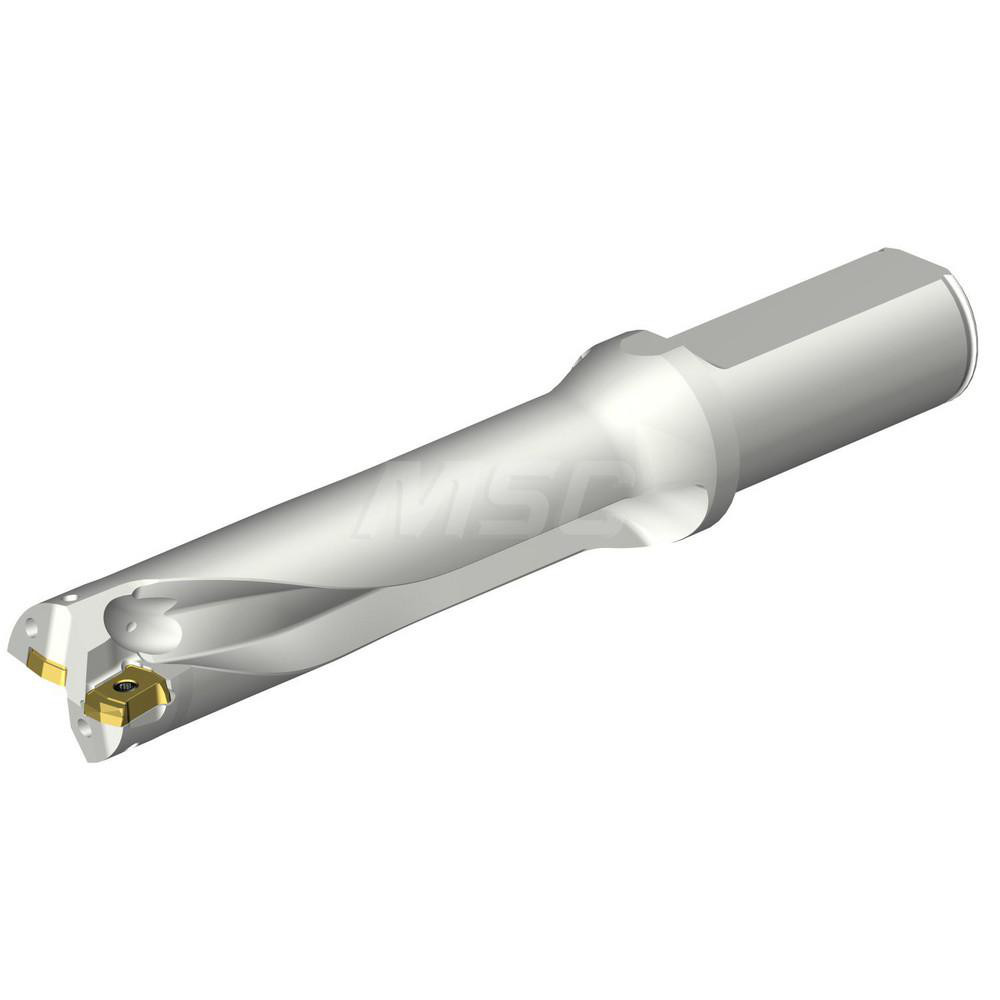

Weldon Flat & Flange Shank, Uses DS20 0104 Inserts, Series CoroDrill DS20
| Compatible Drill Style | DS20 |
|---|---|
| Maximum Drill Diameter (mm) | 17.45 |
| Maximum Drill Depth (Decimal Inch) | 3.4350 |
| Maximum Drill Depth (mm) | 87.71 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (mm) | 25.40 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | DS20 |
| Compatible Insert Size Code | 0104 |
| Drill Depth by Diameter Ratio | 5xD |
| Coolant Entry Style Code | 4- Axial Concentric Entry on Circle |
| Series | CoroDrill DS20 |
| Flute Length (mm) | 90.07 |
| Body Length (mm) | 111.22 |
| Body Length (Decimal Inch) | 3.5460 |
| Shank Length (mm) | 56.46 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 6.00; 5.00 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DS20-0104-C; DS20-0104-P |

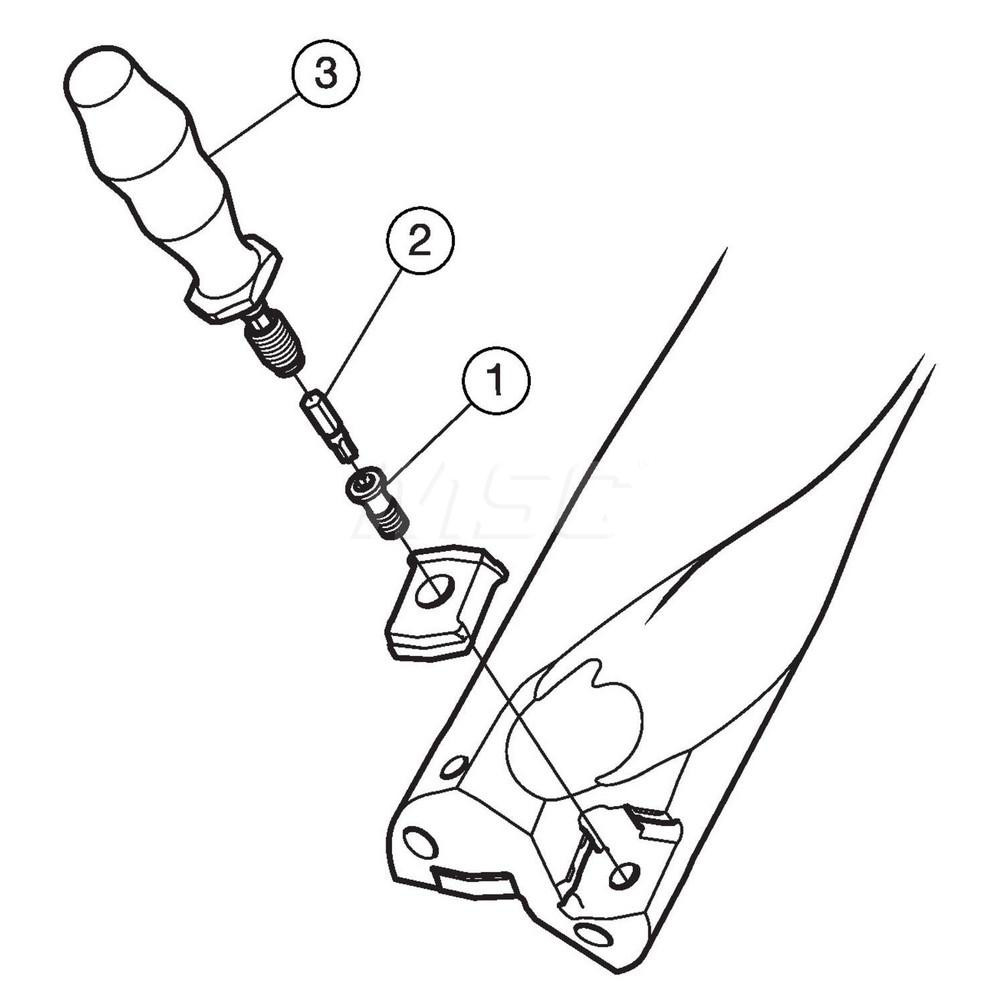

| Insert Lock Screw | 5513 020-27 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 96187109 |
