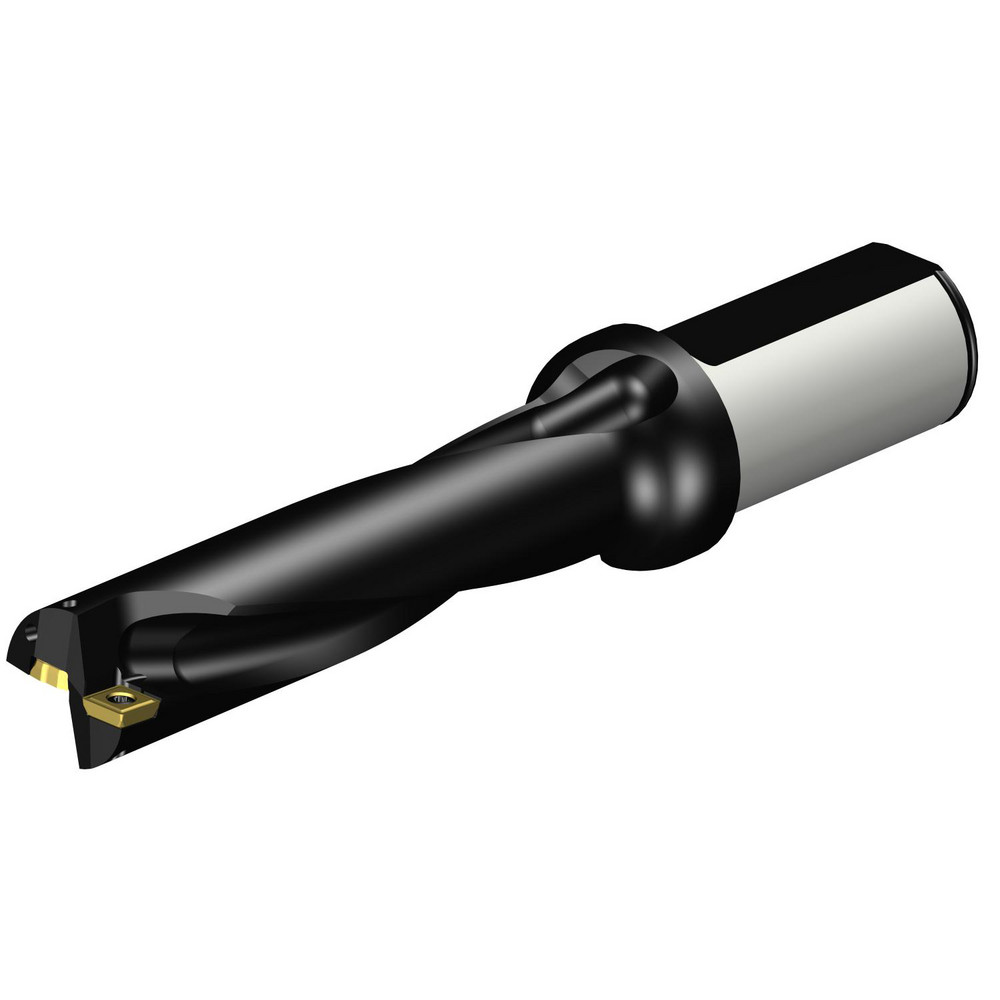

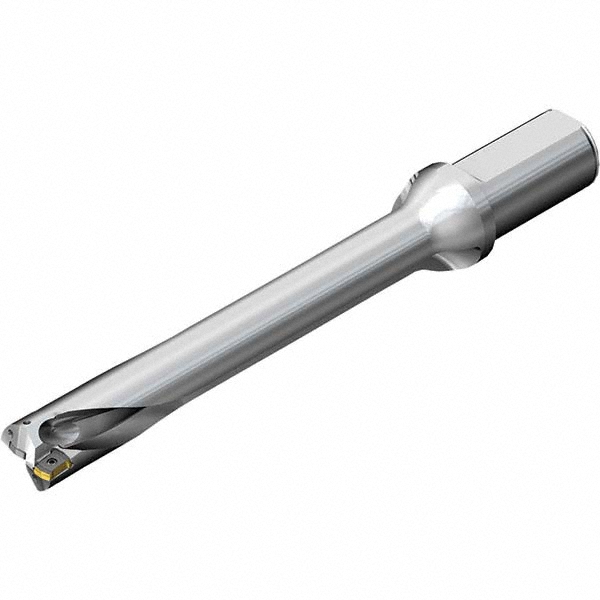

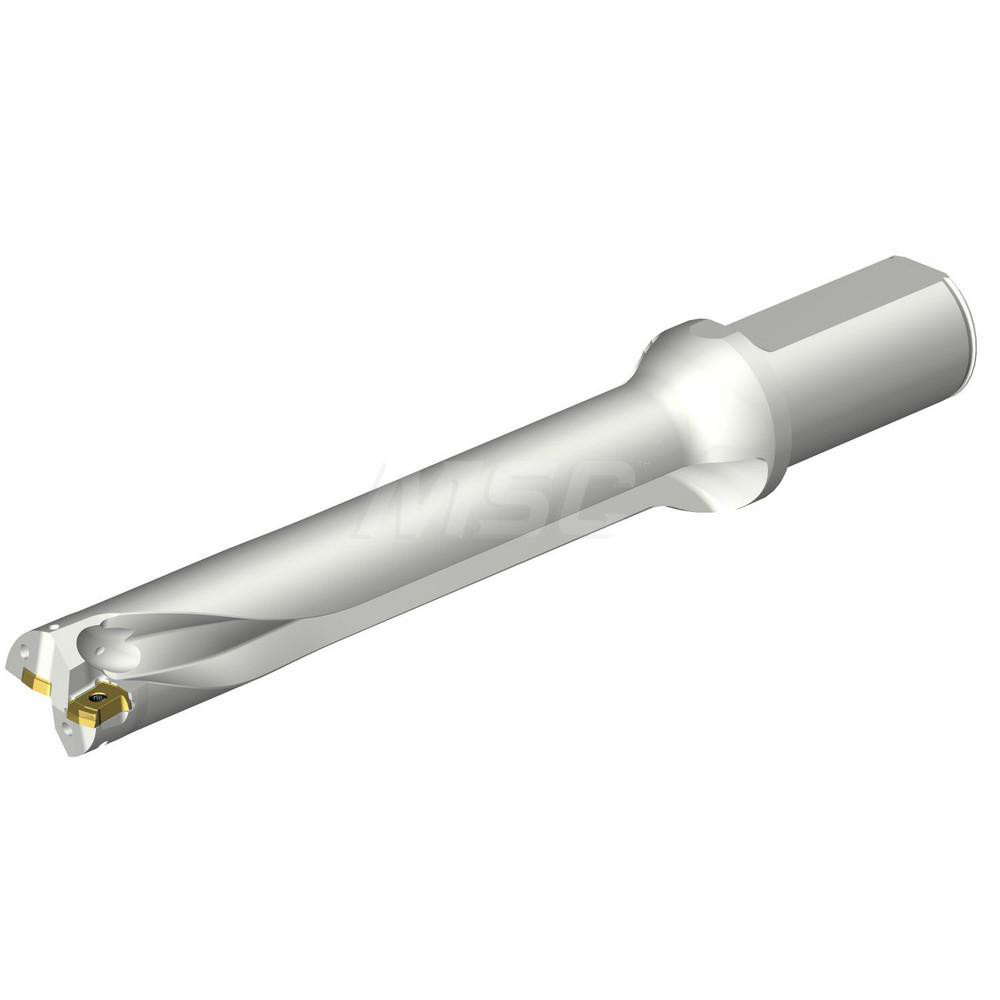

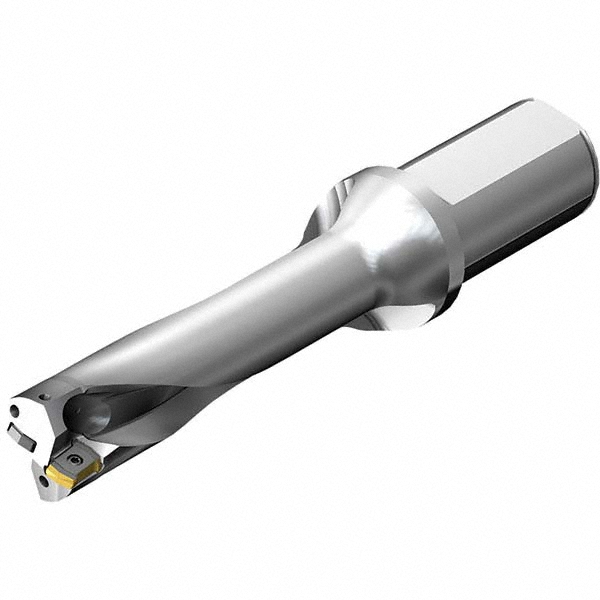

Weldon Flat & Flange Shank, Uses DS20 0306 Inserts, Series CoroDrill DS20
| Compatible Drill Style | DS20 |
|---|---|
| Maximum Drill Diameter (mm) | 26.97 |
| Maximum Drill Depth (Decimal Inch) | 6.3720 |
| Maximum Drill Depth (mm) | 162.51 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (mm) | 31.75 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Maximum Drill Depth Range (mm) | 150.00 to 200.00 |
| Tool Material | Steel |
| Compatible Insert Style | DS20 |
| Compatible Insert Size Code | 0306 |
| Drill Depth by Diameter Ratio | 6xD |
| Coolant Entry Style Code | 4- Axial Concentric Entry on Circle |
| Series | CoroDrill DS20 |

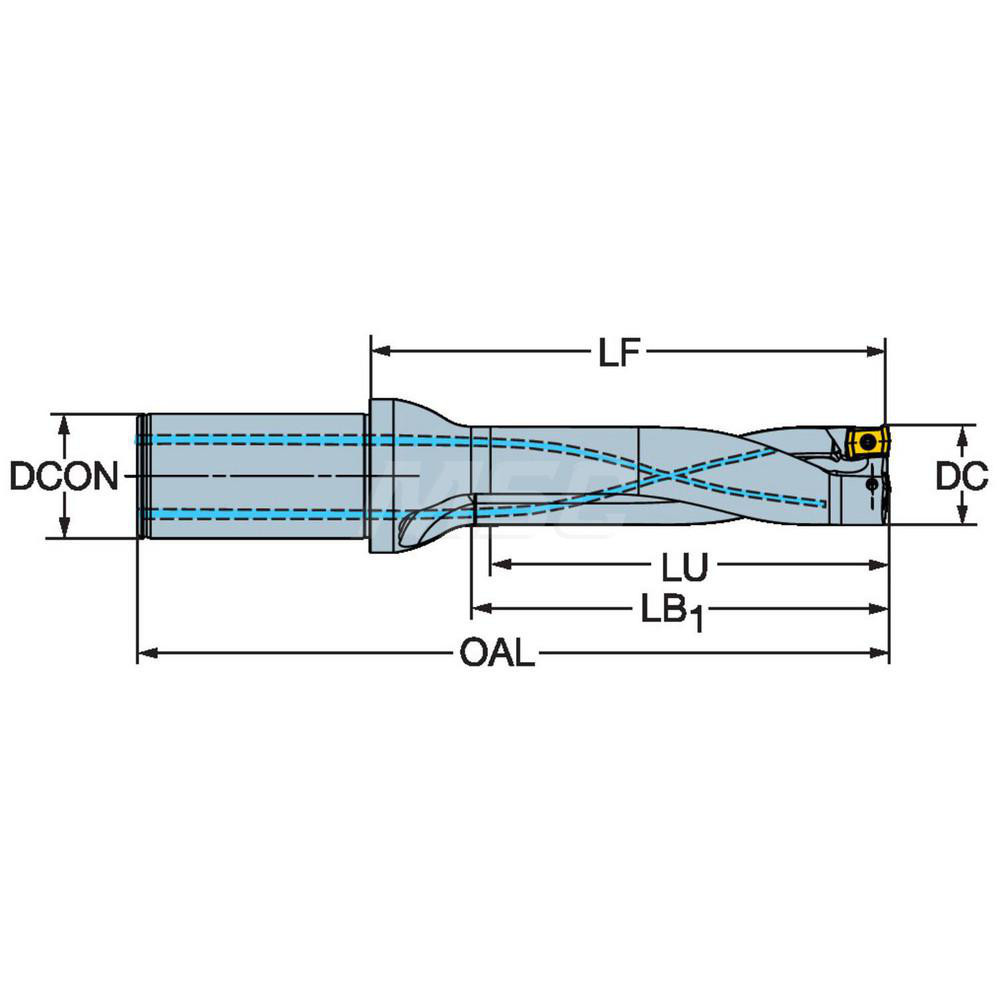

| Flute Length (mm) | 165.05 |
| Body Length (mm) | 189.35 |
| Body Length (Decimal Inch) | 6.4980 |
| Shank Length (mm) | 60.67 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 11.30; 8.90 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DS20-0306-C; DS20-0306-P |

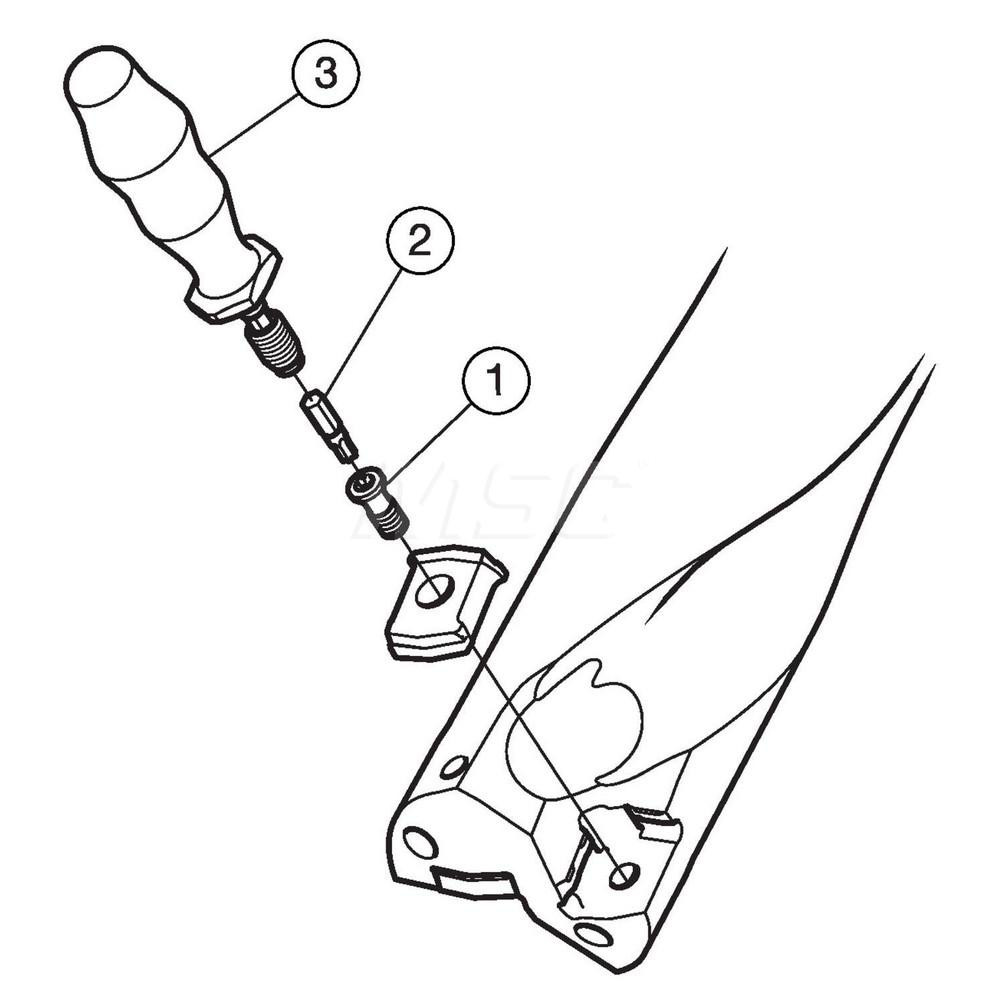

| Insert Lock Screw | 5513 020-58 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 95487484 |
