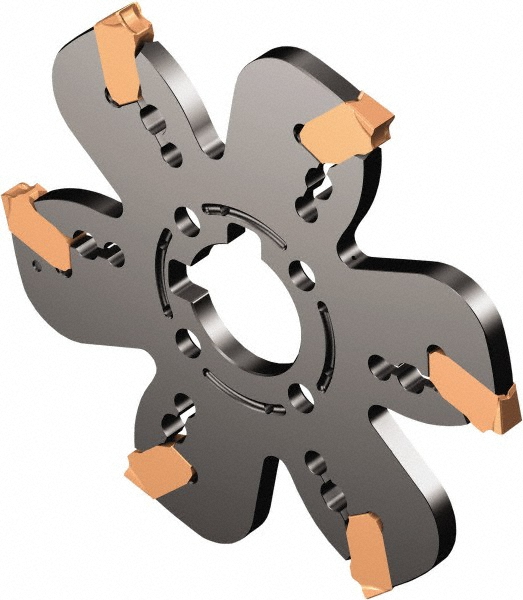

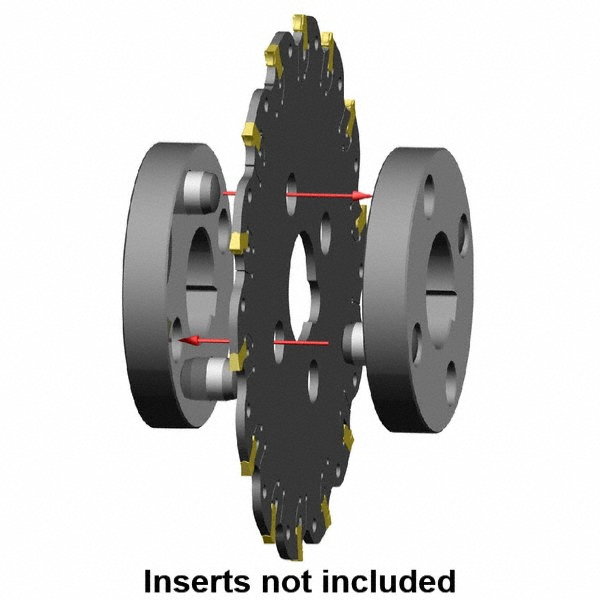

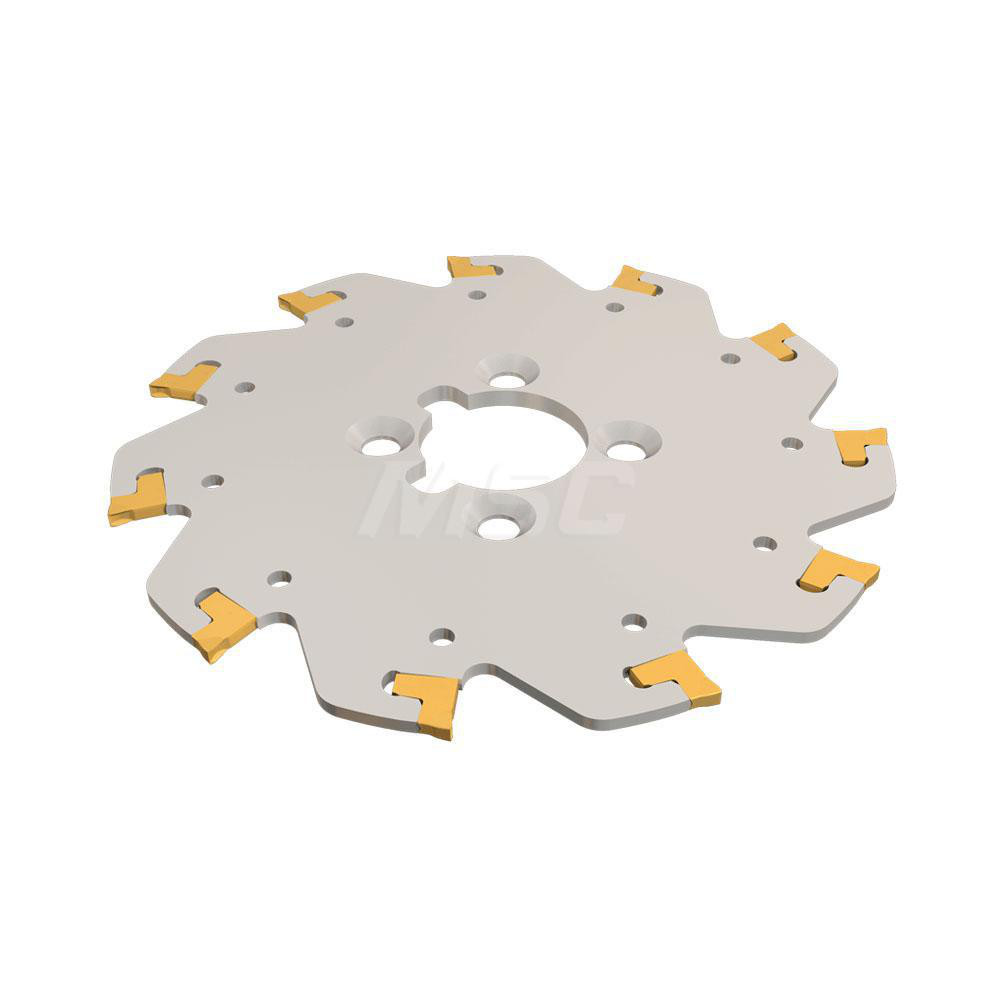

Clamp, Uses 8 Inserts, CoroMill QD -size G (QD-NG-0318-020E-PM) Inserts, 8 Tooth, Straight Teeth, Steel
| Connection Type | Arbor |
|---|---|
| Cutting Width (Inch) | 1/8 |
| Maximum Depth of Cut (Decimal Inch) | 1.0157 |
| Maximum Depth of Cut (mm) | 25.80 |
| Hole Diameter (Inch) | 1 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Cutter Diameter (Decimal Inch) | 4.0000 |
| Cutter Diameter (Inch) | 4 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Number Of Cutter Inserts | 8 |
| Compatible Insert Style | CoroMill QD -size G (QD-NG-0318-020E-PM) |
| Compatible Insert Size Code | Size G |
| Tooth Type | Straight |
| Tool Material | Steel |
| Series | CoroMill QD |
| Toolholder Style | CoroMill QD |
| Hub Diameter (Decimal Inch) | 1.0000 |
| Hub Diameter (mm) | 25.40 |
| Hub Diameter (Inch) | 1 |
| Maximum RPM | 5400 |
| Tool Application | Milling |
| Minimum Cutting Width (Decimal Inch) | 0.1250 |
| Maximum Cutting Width (mm) | 3.17 |
| Radius | No |
| UNSPSC Code | 23241629 |
| Maximum Body Diameter (Decimal Inch) | 4.0000 |
| Cutter Body Width (Decimal Inch) | 0.1252 |
| Cutter Body Width (mm) | 2.79 |
| Weldon Flat | No |
| Manufacturers Catalog Number | AQD-G-102Y25-M |
| Overall Height (Decimal Inch) | 0.1098 |
| Number Of Teeth | 8 |
| Coolant Through | No |
| Complete Insert Compatibility | CoroMill QD -size G (QD-NG-0318-020E-PM) |
| Country of Origin | Sweden |
| MSC Number | MSC# 54735782 |
