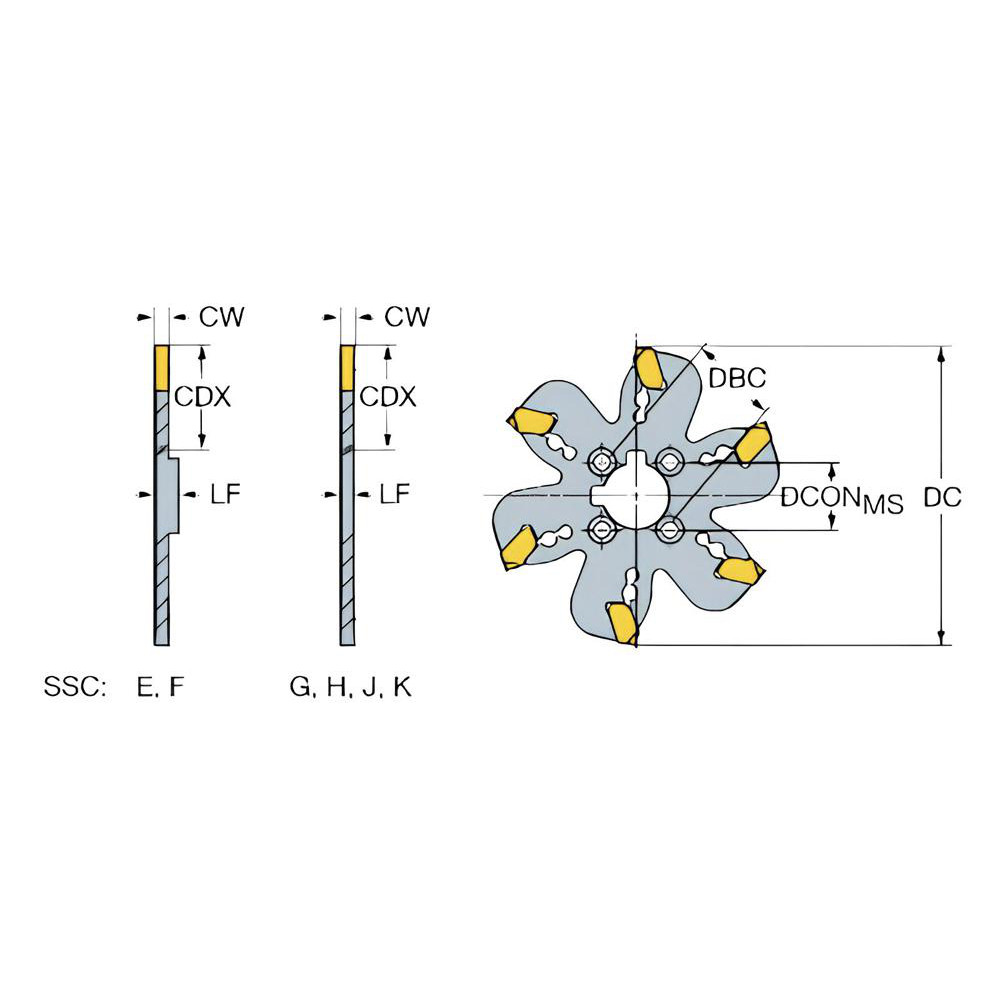

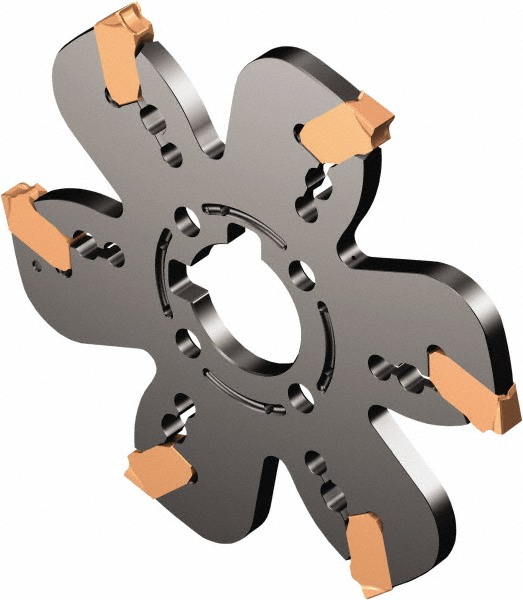

Clamp, Uses 12 Inserts, CoroMill QD -size F (QD-NF-0239-020E-PM) Inserts, 12 Tooth, Straight Teeth, Steel
| Connection Type | Arbor |
|---|---|
| Cutting Width (mm) | 2.39 |
| Cutting Width (Inch) | 3/32 |
| Maximum Depth of Cut (Decimal Inch) | 1.4252 |
| Hole Diameter (Inch) | 1-1/2 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Cutter Diameter (Decimal Inch) | 6.0000 |
| Cutter Diameter (Inch) | 6 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Number Of Cutter Inserts | 12 |
| Compatible Insert Style | CoroMill QD -size F (QD-NF-0239-020E-PM) |
| Compatible Insert Size Code | 0239 |
| Tooth Type | Straight |
| Tool Material | Steel |
| Series | CoroMill QD |
| Toolholder Style | CoroMill QD |
| Modular Connection Size | Y38 |
| Maximum RPM | 3600 |
| Tool Application | Milling |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Maximum Body Diameter (Decimal Inch) | 6.0000 |
| Cutter Body Width (Decimal Inch) | 0.0941 |
| Weldon Flat | No |
| Manufacturers Catalog Number | AQD-F-152Y38-M |
| Overall Height (Decimal Inch) | 2.20 |
| Number Of Teeth | 12 |
| Coolant Through | No |
| Complete Insert Compatibility | CoroMill QD -size F (QD-NF-0239-020E-PM) |
| Country of Origin | Sweden |
| MSC Number | MSC# 49463490 |
