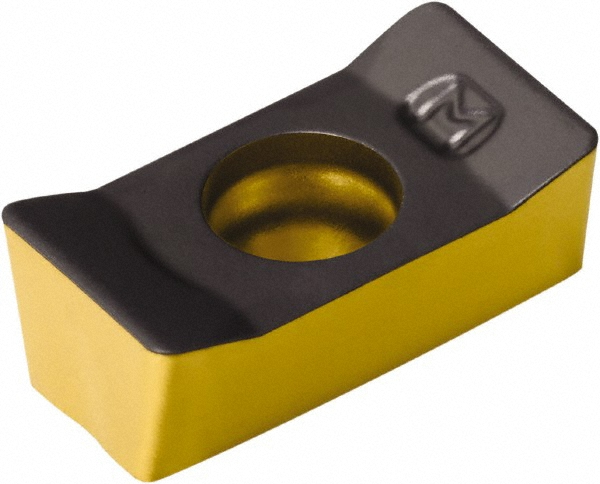

TiCN, Al2O3 & TiN Finish, 4.45 mm Thick, 9.50 mm Wide
| Insert Style | N331.1A |
|---|---|
| Insert Size | 05 |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | 4340 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1752 |
| Thickness (mm) | 4.45 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Relief Angle | 0.00 |
| Insert Size Code | 054508 |
| Material Grade | K40; M40; P40 |
| Inscribed Circle (Decimal Inch) | 0.3740 |
| Thickness Range (Decimal Inch) | 0.1750 to 0.1850 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.0000 to 0.3200 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.2244 |
| Series | N331.1A |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Ansi Code | N331.1A-05 45 08H-PL4340 |
| Iso Code | N331.1A-05 45 08H-PL4340 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | N331.1A-05 45 08H-PL4340 |
| Cutter Series Compatibility | N331.32 |
| Chip Breaker | PL |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3740 |
| Width (mm - 2 Decimals) | 9.50 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.2244 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 94182979 |
