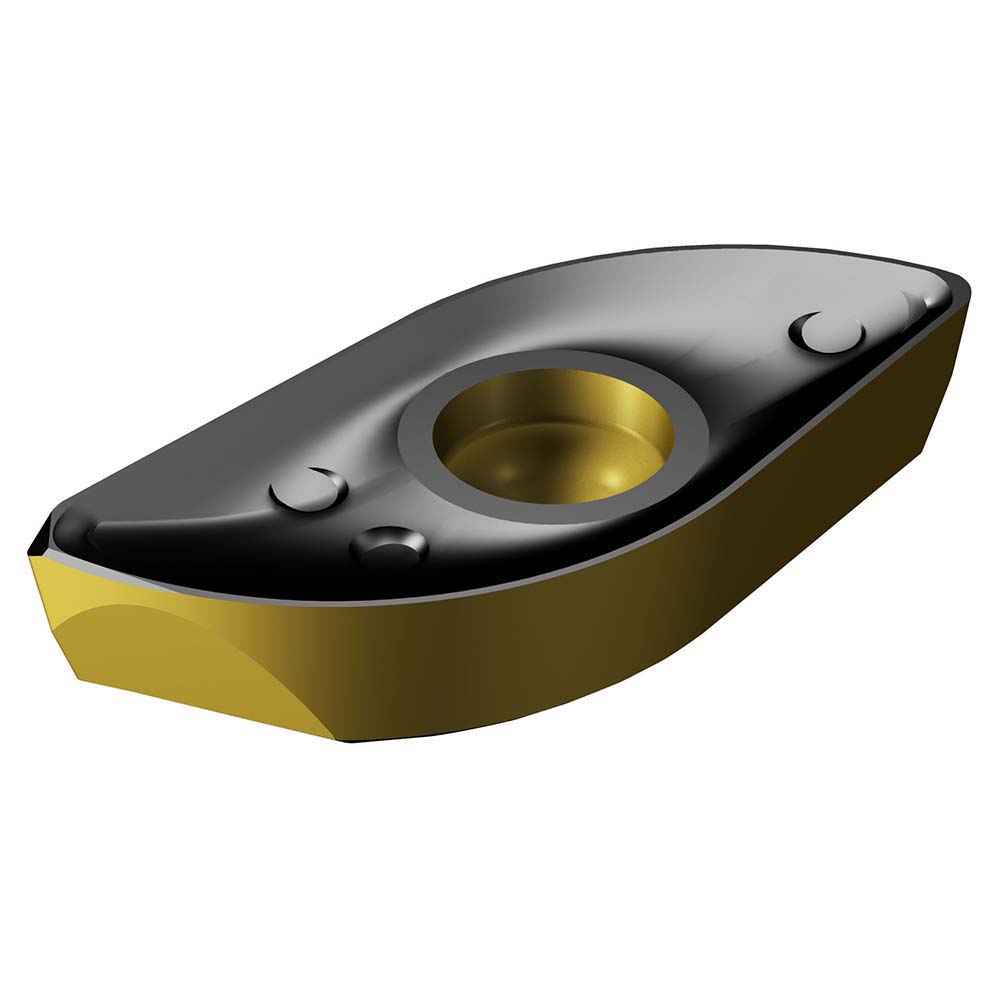

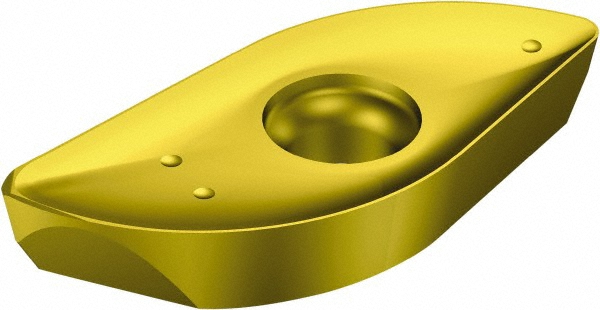

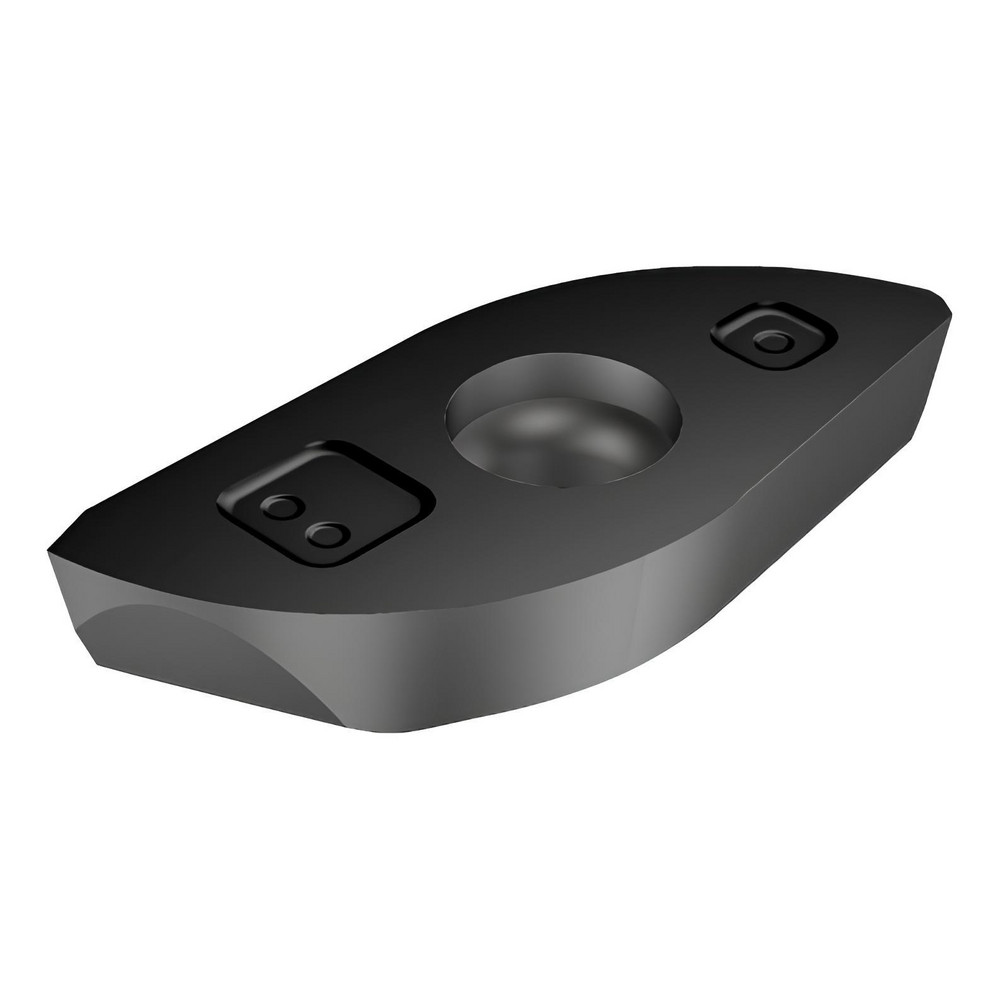

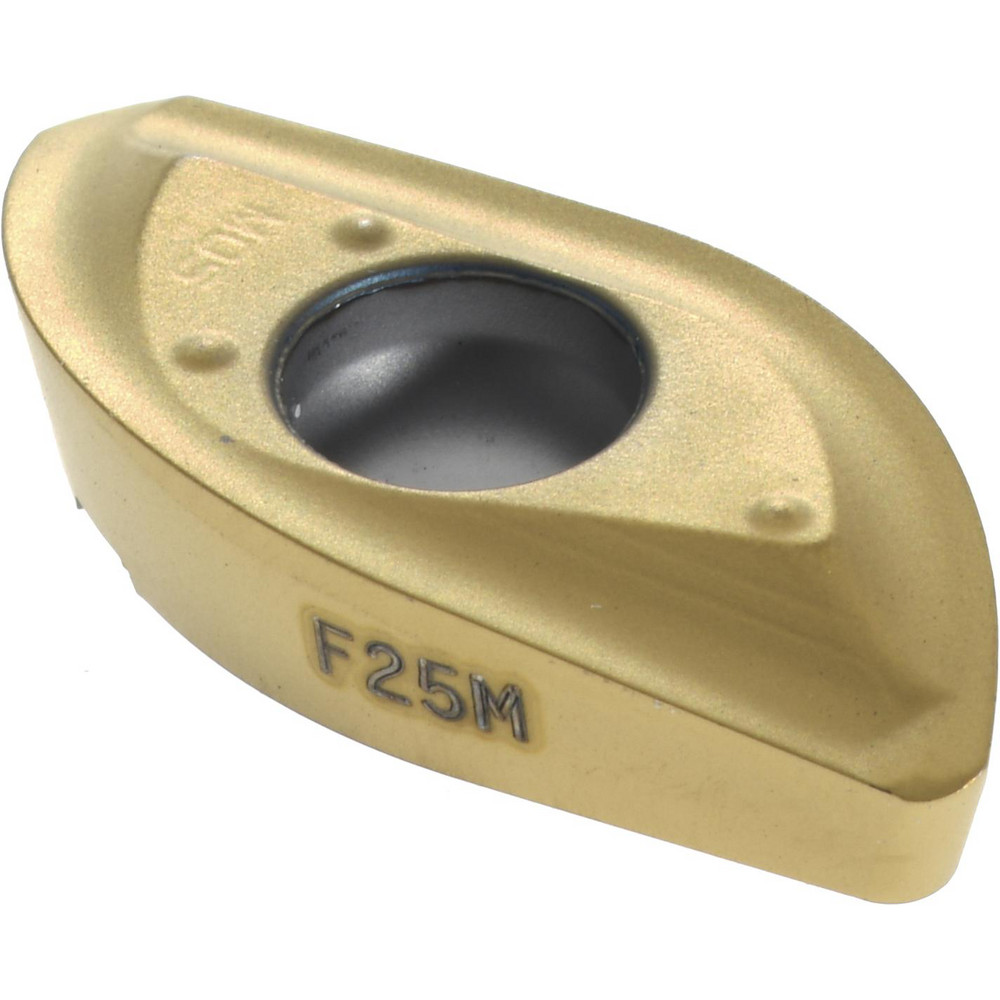

TiCN, Al2O3 & TiN Finish, 3.97 mm Thick
| Insert Style | R216 |
|---|---|
| Insert Size | 20 |
| Insert Material | Solid Carbide |
| Insert Shape | Ball Nose |
| Manufacturer Grade | 4340 |
| Number Of Cutting Edges | 2 |

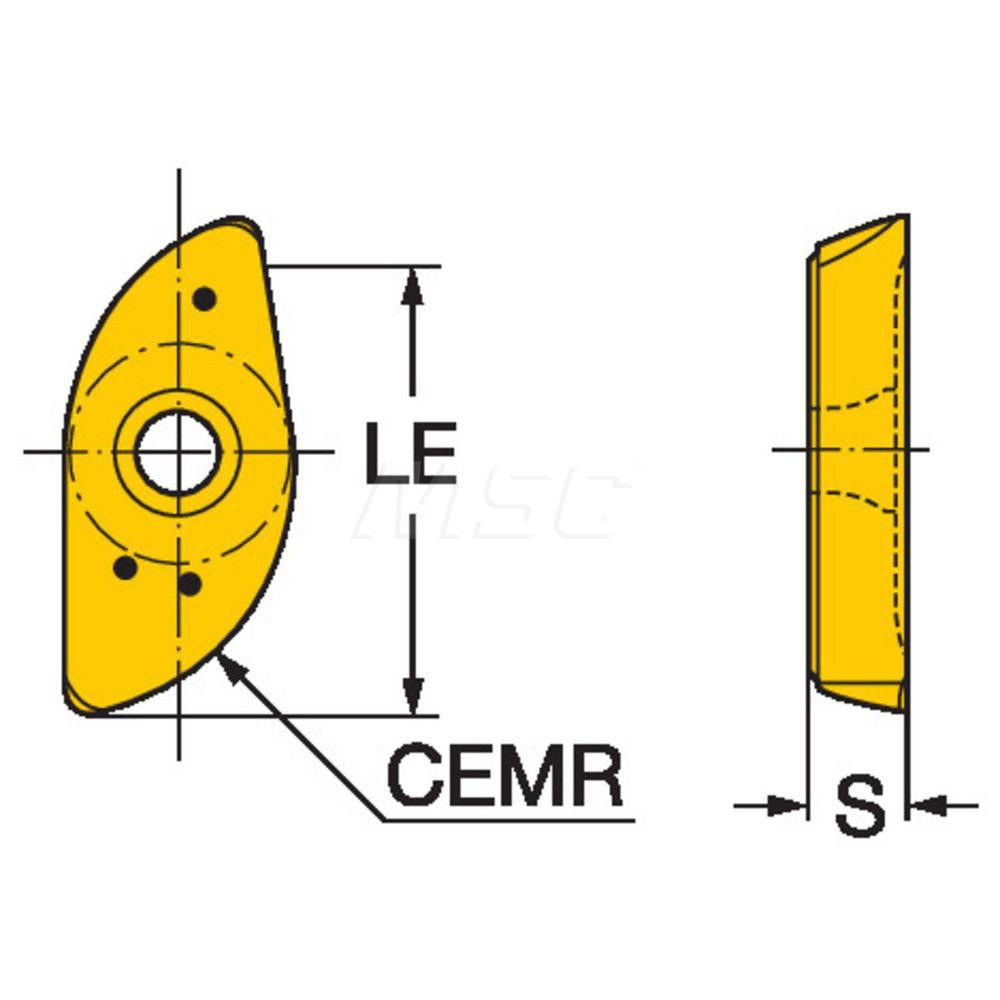

| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
| Thickness (mm) | 3.97 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Insert Size Code | 20T3 |
| Material Grade | K40; M40; P40 |
| Thickness (Inch) | 5/32 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7047 |
| Series | R216 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Ansi Code | R216-20 T3 M-M 4340 |
| Iso Code | R216-20 T3 M-M 4340 |
| Standards | ISO; ANSI |
| Convex Radius (Decimal Inch) | 0.3937 |
| Rake Angle | 0 |
| Manufacturers Catalog Number | R216-20 T3 M-M 4340 |
| Cutter Series Compatibility | R216 |
| Chip Breaker | M |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Length (mm) | 17.90 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.7047 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 13043484 |
