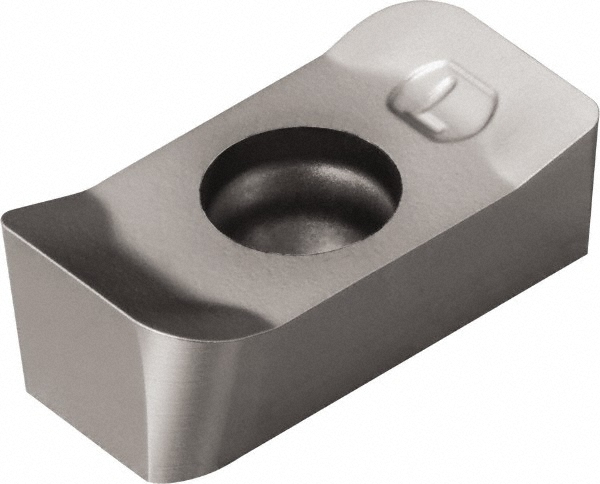

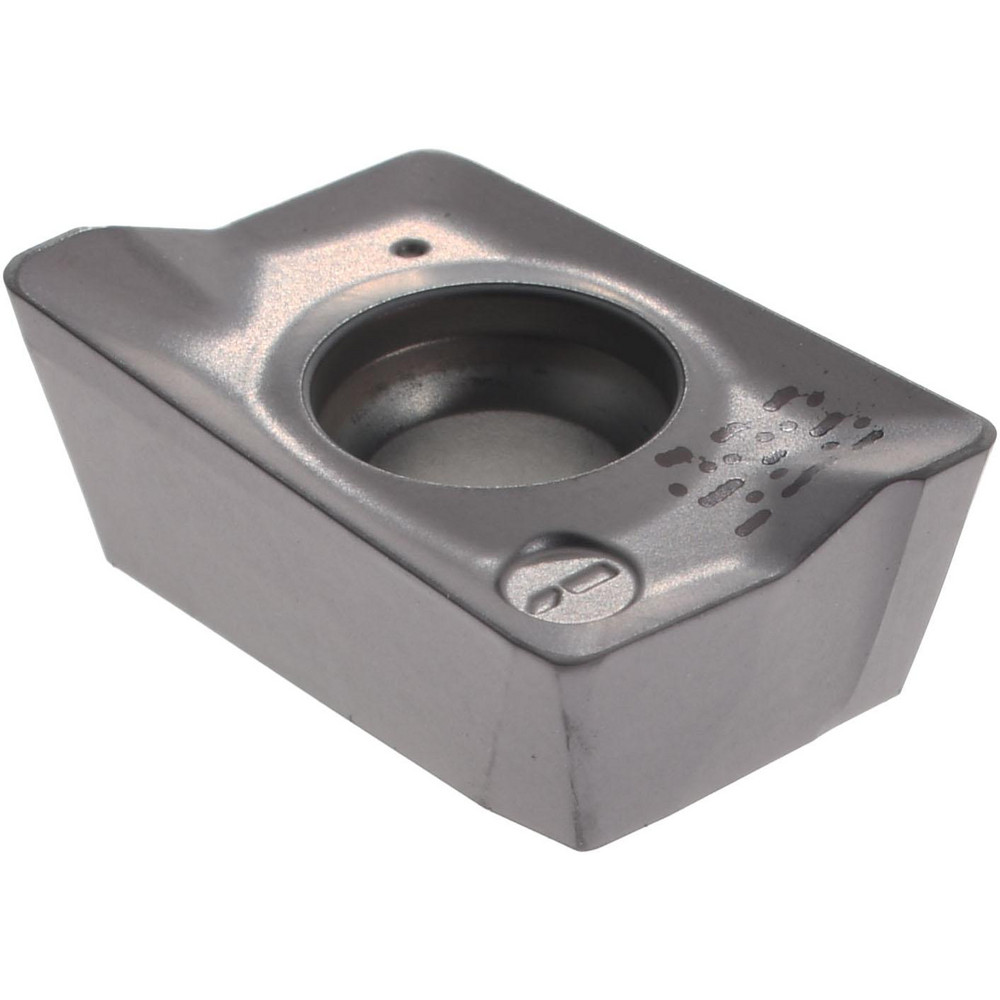

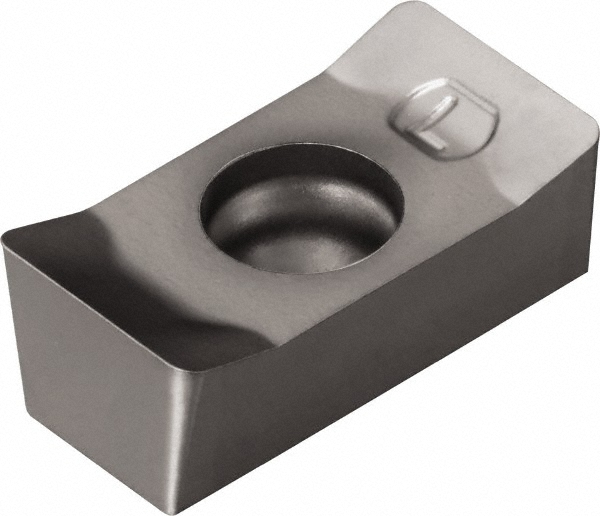

AlTiCrN Finish, 4.45 mm Thick, 9.50 mm Wide
| Insert Style | R331.1A |
|---|---|
| Insert Size | 05 |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | 1130 |
| Corner Radius (Decimal Inch) | 0.0598 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1752 |
| Thickness (mm) | 4.45 |
| Coating/Finish | AlTiCrN |
| Relief Angle | 0.00 |
| Insert Size Code | 054515 |
| Material Grade | M15; N15; P30 |
| Inscribed Circle (Decimal Inch) | 0.3740 |
| Thickness Range (Decimal Inch) | 0.1750 to 0.1850 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.0000 to 0.3200 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2244 |
| Series | R331.1A |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; M; N |
| Ansi Code | R331.1A-05 45 15H-WL1130 |
| Iso Code | R331.1A-05 45 15H-WL1130 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | R331.1A-05 45 15H-WL1130 |
| Cutter Series Compatibility | N331.32 |
| Chip Breaker | WL |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3740 |
| Width (mm - 2 Decimals) | 9.50 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.2244 |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 32328460 |
