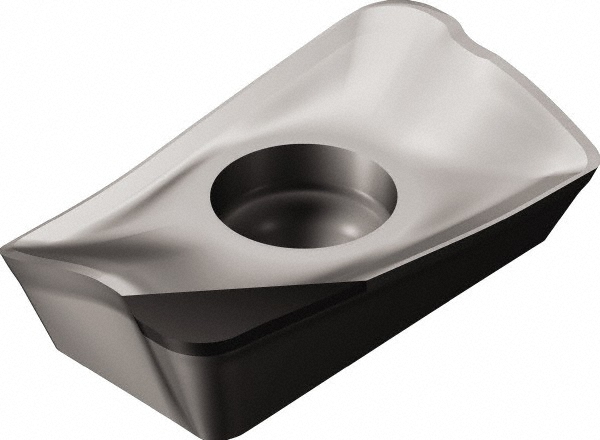

Bright/Uncoated Finish, 3.59 mm Thick, 6.80 mm Wide
| Insert Style | R390 |
|---|---|
| Insert Size | 11 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | H13A |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1413 |
| Thickness (mm) | 3.59 |
| Coating/Finish | Bright/Uncoated |
| Insert Size Code | 11T304 |
| Material Grade | S20; N15; K20 |
| Inscribed Circle (Decimal Inch) | 0.2677 |
| Inscribed Circle (mm) | 6.80 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Inch) | 1/64 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 10.00 |
| Series | R390 |
| Coating Process | Uncoated |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.11 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | R390-11 T3 04E-NL H13A |
| Iso Code | R390-11 T3 04E-NL H13A |
| Standards | ISO; ANSI |
| Rake Angle | 30 |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | R390-11 T3 04E-NL H13A |
| Cutter Series Compatibility | M-32; R390 |
| Chip Breaker | NL |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Length (mm) | 10.00 |
| Width (Decimal Inch - 4 Decimals) | 0.2677 |
| Width (mm - 2 Decimals) | 6.80 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3937 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 52064466 |
