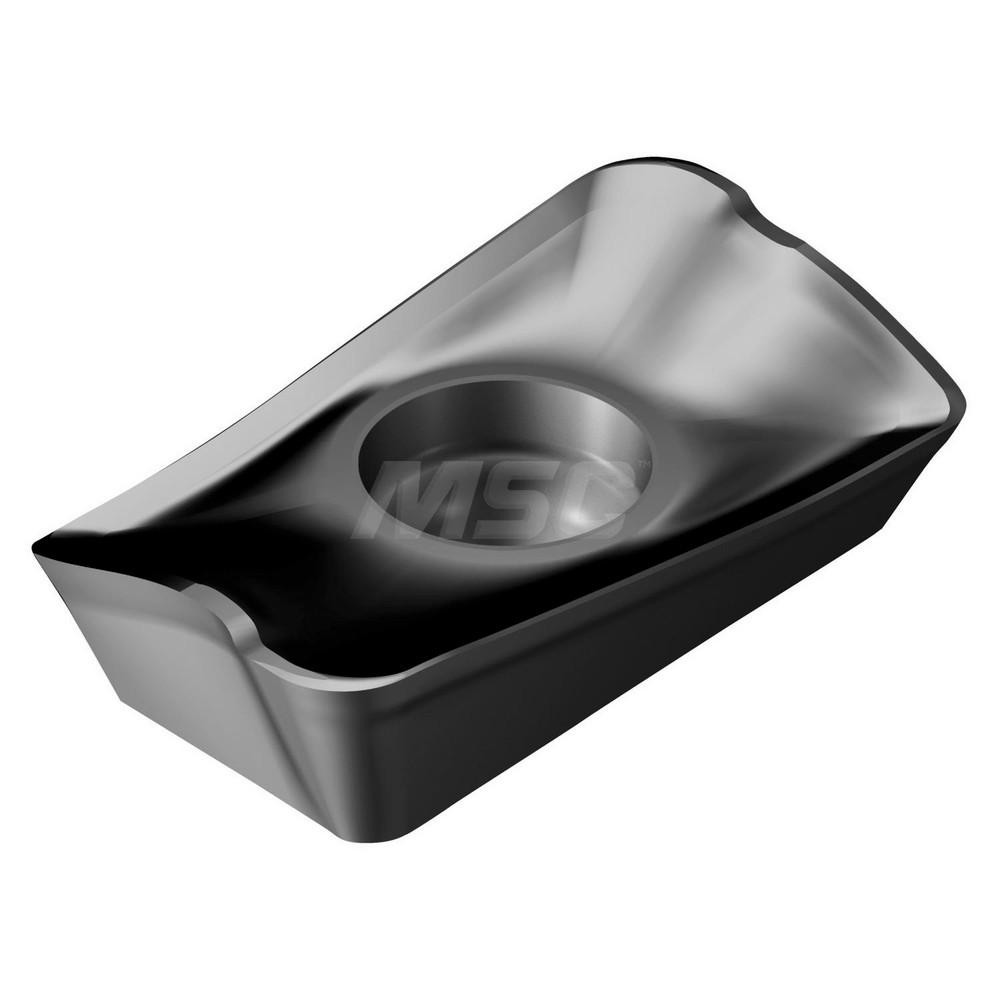

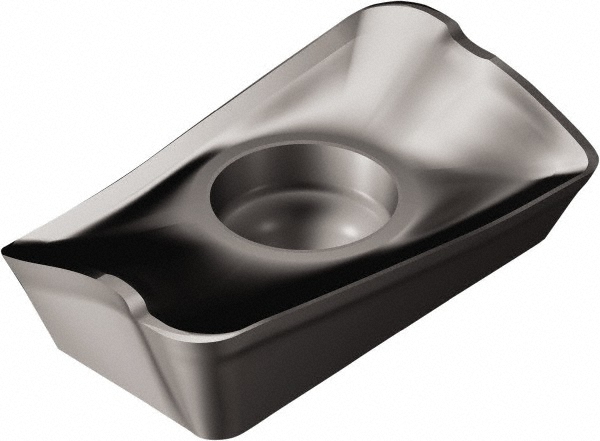

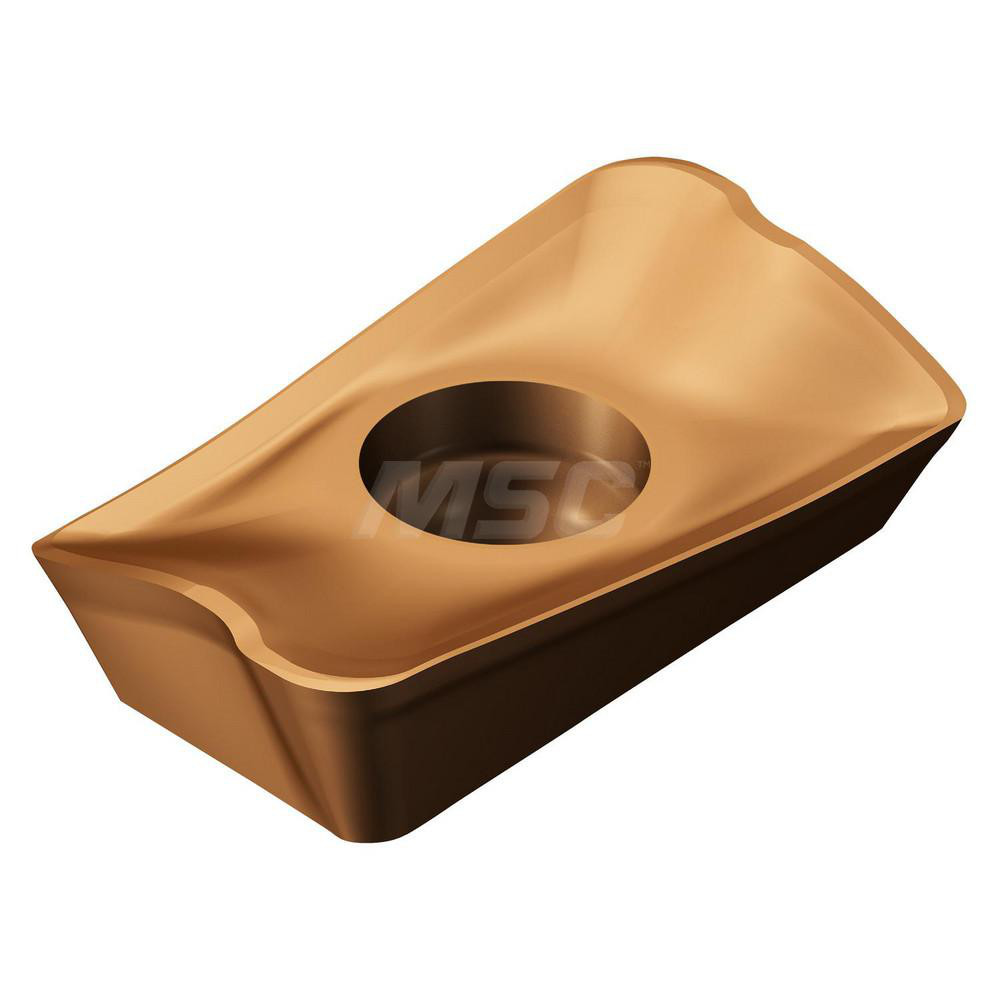

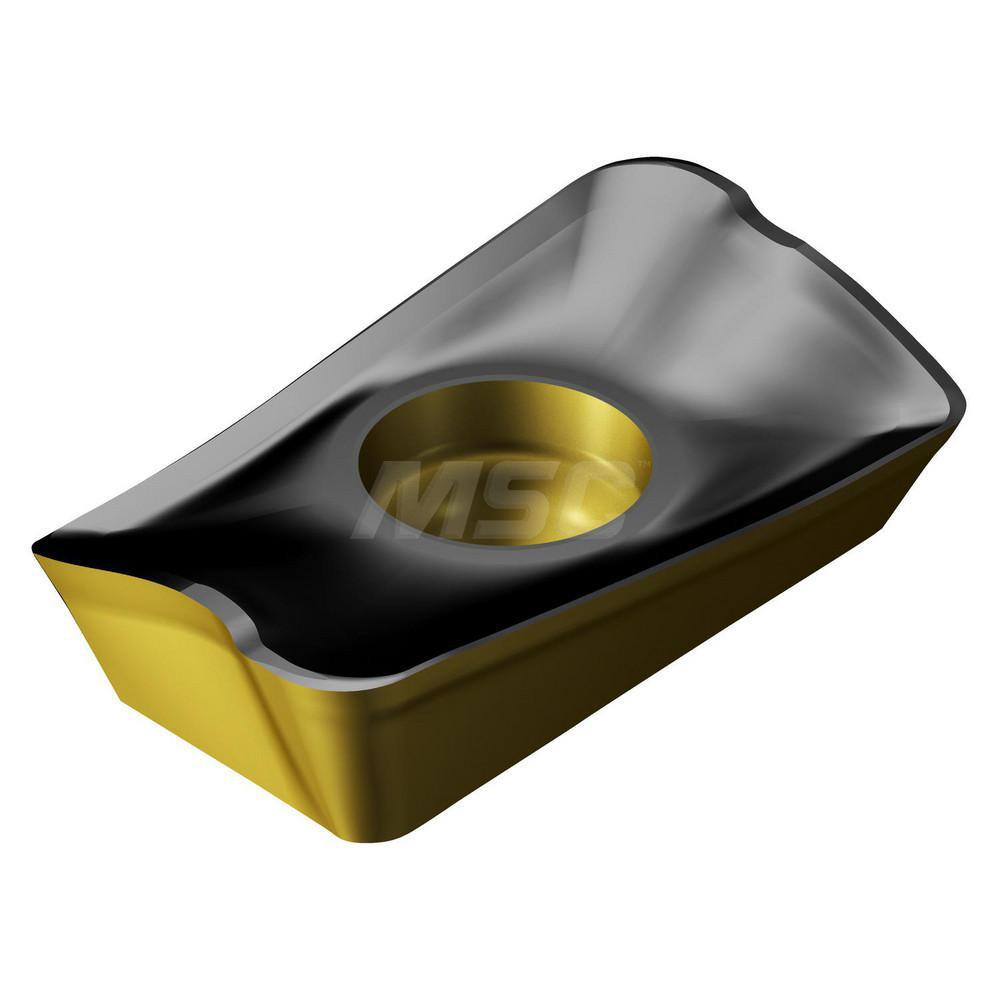

TiAlN Finish, 3.59 mm Thick, 6.80 mm Wide
| Insert Style | R390 |
|---|---|
| Insert Size | 11 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | S30T |

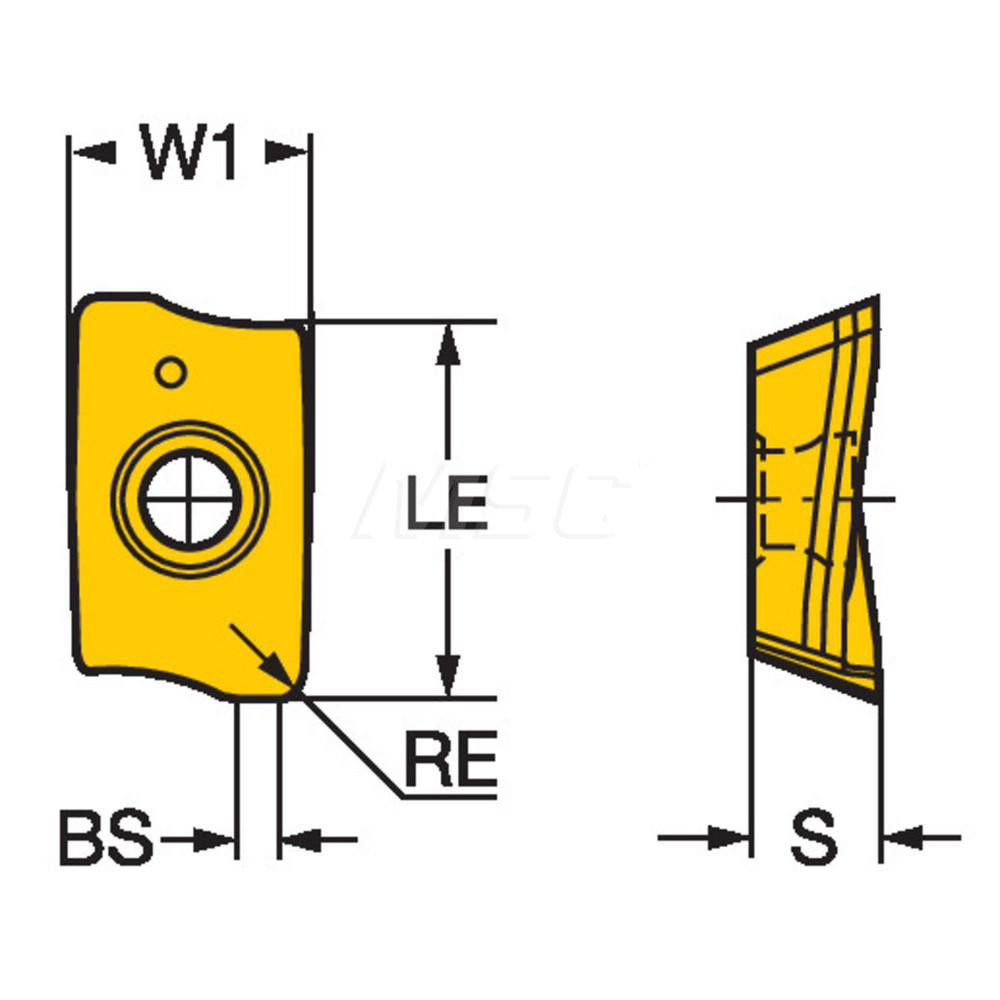

| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1413 |
| Thickness (mm) | 3.59 |
| Coating/Finish | TiAlN |
| Insert Size Code | 11T320 |
| Material Grade | M25; S25 |
| Inscribed Circle (Decimal Inch) | 0.2677 |
| Inscribed Circle (mm) | 6.80 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 10.00 |
| Series | R390 |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.11 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Ansi Code | R390-11 T3 20E-PM S30T |
| Iso Code | R390-11 T3 20E-PM S30T |
| Standards | ISO; ANSI |
| Rake Angle | 25 |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | R390-11 T3 20E-PM S30T |
| Cutter Series Compatibility | M-32; R390 |
| Chip Breaker | PM |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Length (mm) | 10.00 |
| Width (Decimal Inch - 4 Decimals) | 0.2677 |
| Width (mm - 2 Decimals) | 6.80 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3937 |
| Country of Origin | Sweden |
| MSC Number | MSC# 52061082 |
