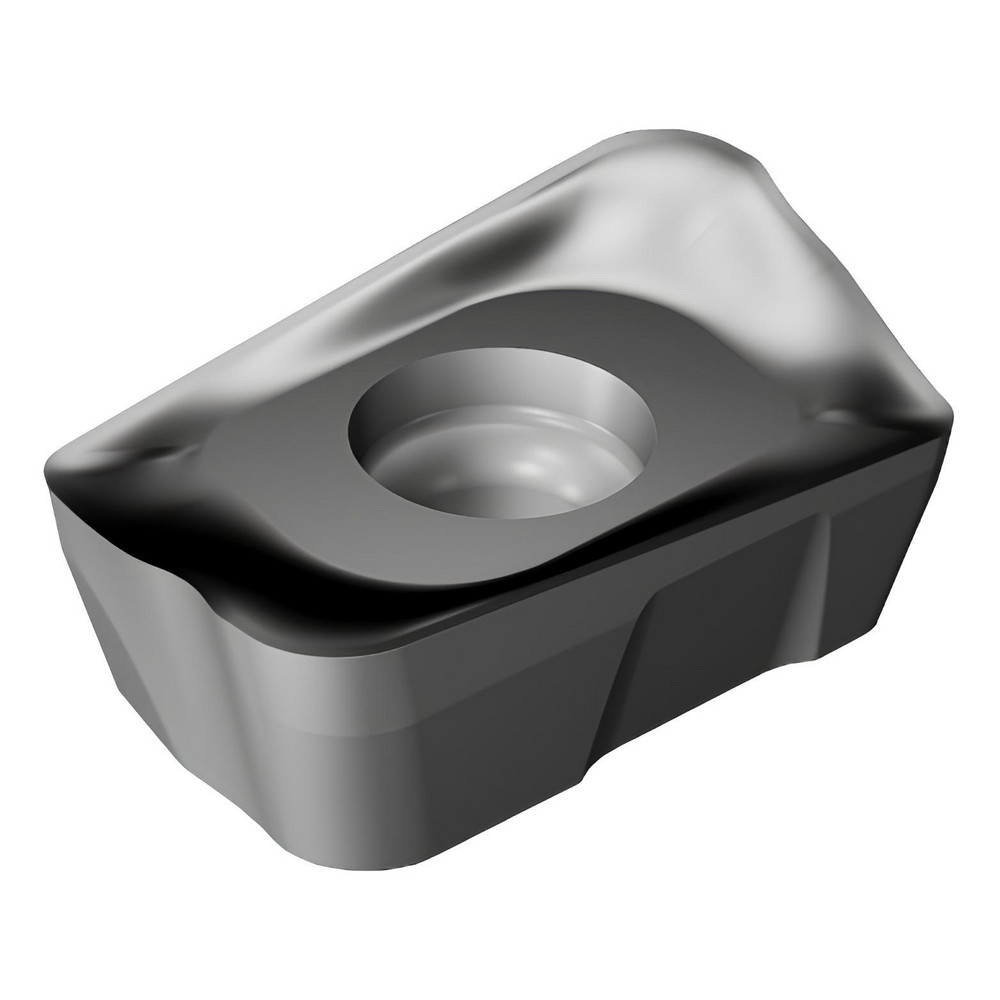

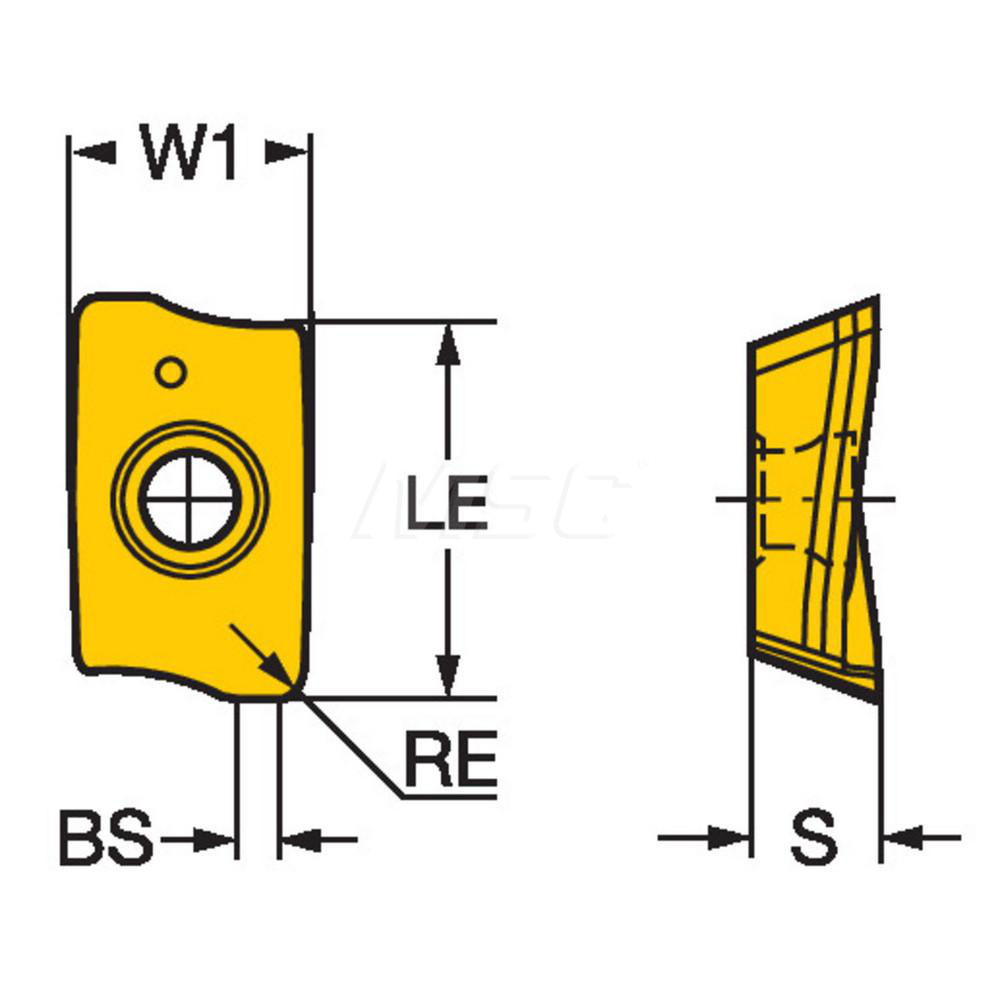

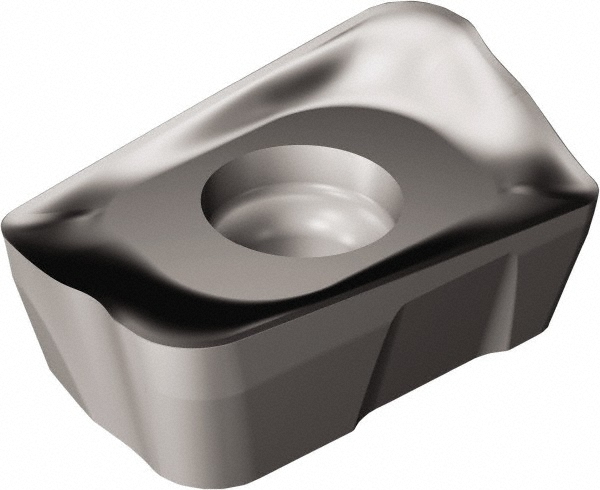

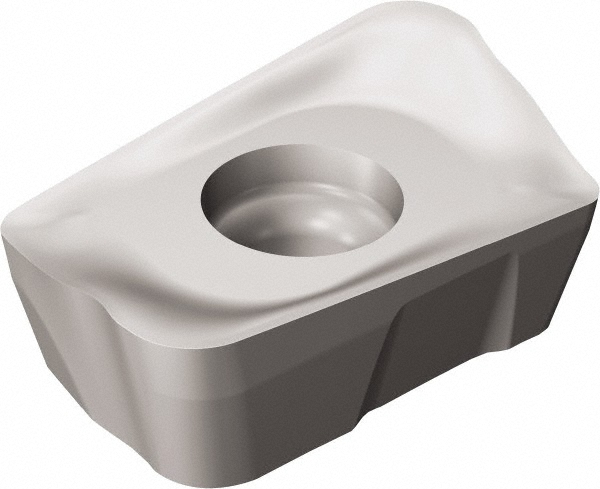

TiCrN, Al2O3 & TiN Finish, 6.33 mm Thick, 11.00 mm Wide
| Insert Style | R390 |
|---|---|
| Insert Size | 18 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | 2040 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2492 |
| Thickness (mm) | 6.33 |
| Coating/Finish | TiN; TiCrN; Al2O3 |
| Insert Size Code | 180608 |
| Material Grade | P45; S30; M40 |
| Inscribed Circle (Decimal Inch) | 0.4331 |
| Inscribed Circle (mm) | 11.00 |
| Thickness Range (Decimal Inch) | 0.2350 to 0.2500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6299 |
| Maximum Depth of Cut (mm) | 16.00 |
| Series | R390 |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.16 |
| Hole Diameter (Decimal Inch) | 0.1634 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | R390-18 06 08M-MM 2040 |
| Iso Code | R390-18 06 08M-MM 2040 |
| Standards | ISO; ANSI |
| Rake Angle | 5 |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | R390-18 06 08M-MM 2040 |
| Cutter Series Compatibility | R390; M-40 |
| Chip Breaker | MM |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Length (mm) | 15.40 |
| Width (Decimal Inch - 4 Decimals) | 0.4331 |
| Width (mm - 2 Decimals) | 11.00 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6063 |
| Country of Origin | Sweden |
