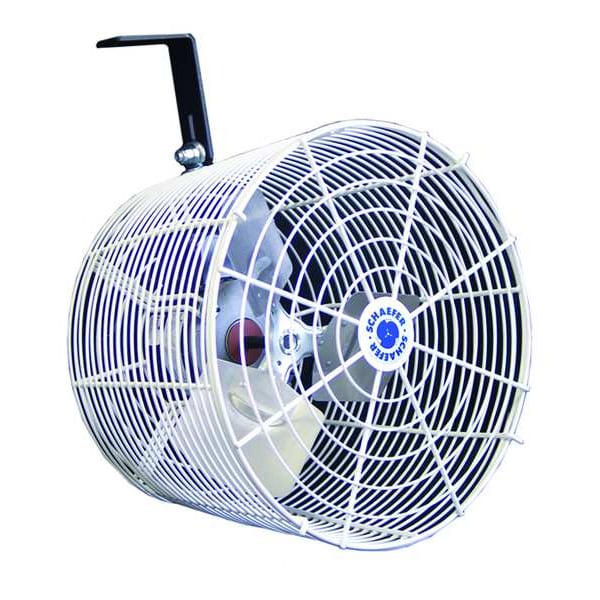

Standard Duty Industrial Fan, Wall Mount, 12 in Blade Dia, 115/230V, 1,470 cfm, Non-Oscillating
| Blade Diameter | 12 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 115/230V |
| Phase | 1 |
| Motor HP | 0.1 HP |
| Air Flow | 1,470 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Item | Industrial Fan |
| Guard Material | Galvanized Steel |
| Watts | 108 W |
| Fan Accessory Style | Standard |
| Environmental Applications | Industrial |
| Mobile/Stationary | Stationary |
| Fan Mounting Location | Wall |
| Number of Conductors | 3 |
| Motor RPM | 1,725 RPM |
| Hz | 60 |
| Max. Ambient Temp. | 104 deg F |
| Assembled | Yes |
| Outside Dia. | 15 in |
| Motor Enclosure | Totally Enclosed Air Over |
| Bearing Type | Ball |
| Includes | Wall Mount Bracket |
| Width | 15 in |
| Fan Style | Standard Duty |
| Motor Insulation | Class B |
| Shaft Dia. | 1/2 in |
| Motor Type | Permanent Split Capacitor |
| Housing Material | Steel |
| Number of Blades | 3 |
| Height | 15 in |
| Wire Guard Finish | Powder Coated |
| CFM High | 1,470 |
| Max. Depth | 14 in |
| NEMA Plug Configuration | 5-15p |
| Thermal Protection | Automatic |
| Application | Spot Cooling and People Cooling |
| Amps | 1.3/0.65 |
| Wheeled Base | Stationary |
| Depth | 14 in |
| Assembly Required | No |
| RPM | 1725 |
| Fan Housing Material | Steel |
| Fan Cord Length | 5 ft |
| Material | Steel |
| Color | White |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
