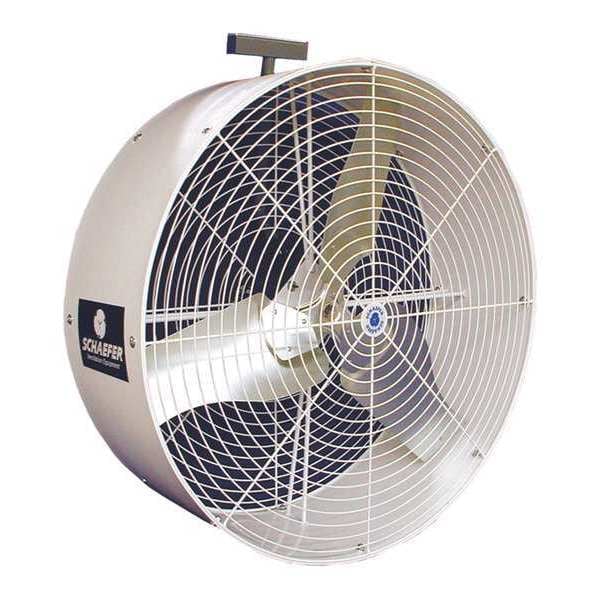

Standard Duty Industrial Fan, Wall Mount, 36 in Blade Dia, 230/460V, 11,380 cfm, Non-Oscillating
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Blade Diameter | 36 in |
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 230/460V |
| Phase | 3 |
| Motor HP | 0.5 HP |
| Air Flow | 11,380 cfm |
| Drive Type | Direct Drive |
| Blade Material | Galvanized Steel |
| Item | Industrial Fan |
| Max. Depth | 16-1/2 in |
| Outside Dia. | 37-1/2 in |
| Number of Blades | 3 |
| Hz | 60 |
| Housing Material | Polyethylene |
| Thermal Protection | Automatic |
| Assembled | Yes |
| Bearing Type | Ball |
| Fan Style | Standard Duty |
| Motor Type | Permanent Split Capacitor |
| Requires | Hard wire Installation |
| Width | 37-1/2 in |
| CFM High | 11,384 |
| Environmental Applications | Industrial |
| Watts | 364 W |
| Motor Enclosure | Totally Enclosed Air Over |
| Fan Accessory Style | Standard |
| Motor RPM | 825 RPM |
| Max. Ambient Temp. | 104 deg F |
| Motor Insulation | Class B |
| Wire Guard Finish | Powder Coated |
| Includes | Yoke Mount |
| Guard Material | Galvanized Steel |
| Mobile/Stationary | Stationary |
| Application | Spot Cooling and People Cooling |
| Fan Mounting Location | Wall |
| Shaft Dia. | 5/8 in |
| Height | 37-1/2 in |
| Depth | 16-1/2 in |
| Assembly Required | No |
| Amps | 2.3/1.2 |
| Fan Housing Material | Steel |
| Wheeled Base | Stationary |
| RPM | 825 |
| Material | Polyethylene |
| Color | White |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
