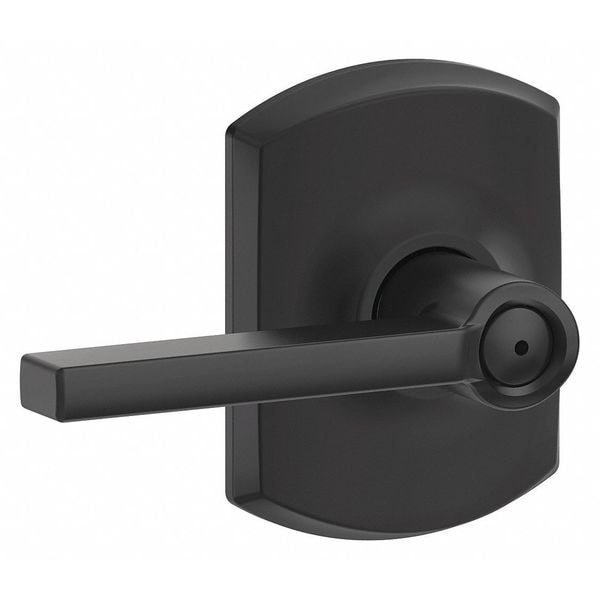

Lever Lockset, Black Powder Coat, Privacy
| Item | Door Lockset |
|---|---|
| Lockset Function | Privacy |
| Location Type | Multi-Family, Residential |
| Electrical/Mechanical | Mechanical |
| Series | F40 |
| Required Door Thickness | 1-3/8 to 1-3/4 in |
| Backset | 2 3/8 in |
| Strike Dim. | 1-1/4 in x 4-7/8 in |
| Includes | Pin Key |
| Strike Type | Full Lip, Round Corner |
| Ligature Resistant | No |
| Number of Pins | 5 |
| Mortise/Cylindrical | Cylindrical |
| Handle Material | Brass |
| Mortise / Cylindrical | Cylindrical |
| Lockset Finish | Black Powder Coat |
| Lockset Handle Type | Lever |
| Voltage | Not Applicable |
| Features | Lock and Finish Backed By Limited Lifetime Warranty (Oil-Rubbed Bronze Exempt from Finish Guarantee), Self-Aligning Screw Holes, Universal Latch |
| Key Material | Nickel Silver |
| Standards | ANSI/BHMA A156.2-2011, ANSI/BHMA A156.39-2015, UL Listed |
| Lockset Fire Rating | Not Rated |
| Cylinder Core Type | Conventional |
| Number of Keys | 2 |
| Key Type | Keyed Different |
| Style | Latitude/Greenwich |
| ADA Compliant | Yes |
| Lockset Performance Strength | Standard Duty |
| For Use With | Residential/Light Commercial Applications |
| Lockset Grade | 2 |
| Keyway Type | None |
| Visual Indicator Message | No Message |
| Door Thickness - Minimum | 1-3/8 in |
| Strike Plate Width | 1-1/4 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Visual Indicator Location | Not Applicable |
| Knob/Handle Material | Brass |
| ANSI/BHMA Finish | Flat Black Coated |
| Lockset Function ANSI Code | F76 |
| Strike Plate Height | 4-7/8 in |
| Door Thickness - Maximum | 1-3/4 in |
| Application | Multiple Family Residential |
| Hand Orientation | Non-Handed |
| Lockset Type | Mechanical |
| ANSI Grade | 2 |
| Lockset Style | Greenwich, Latitude |
| Fire Rating | 3 hr |
| Performance Grade | 2 |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
