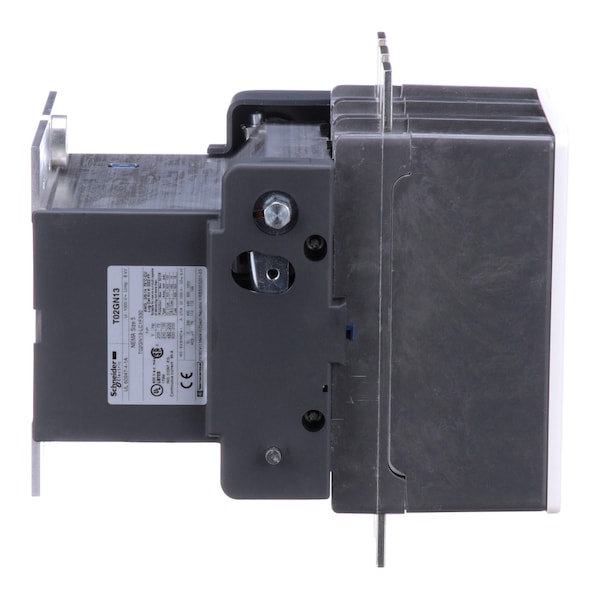

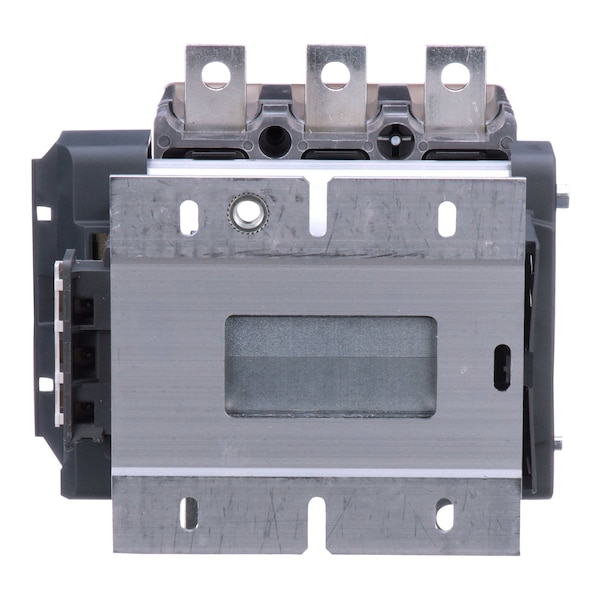

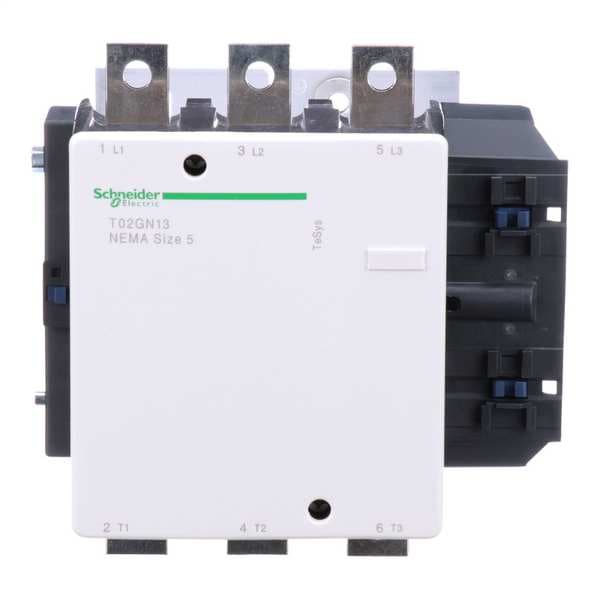

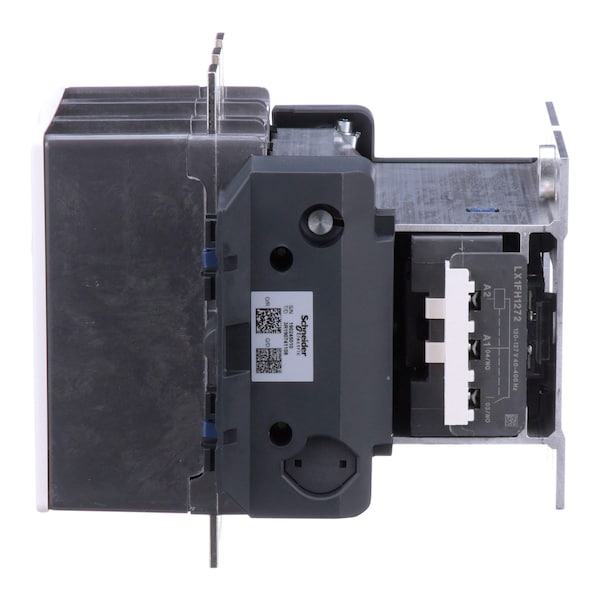

Contacto magnético no reversible de 120VAC, 3 polos, 270A, NEMA 5.
| Item | Magnetic Contactor |
|---|---|
| Full Load Amps | 270 A |
| Action | Non-Reversing |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| NEMA Contactor Size | 5 |
| Reversing | No |
| Height | 8.1 in |
| Width | 8.4 in |
| HP @ 3 Phase - 208V | 75 hp |
| HP @ 3 Phase - 240V | 100 hp |
| Depth | 8.6 in |
| HP @ 3 Phase - 575V | 200 hp |
| HP @ 3 Phase - 480V | 200 hp |
| Enclosure NEMA Rating | No Enclosure |
| NEMA Size | 5 |
| Hz | 40/400 |
| Frame / Series / Class / Code | TeSys |
| Standards | CSA, UL Listed |
| Series | TeSys N |
| Auxiliary Contact Form | 1NO |
| Poles Description | 3P |
| Nema Degree Of Protection | not rated (open device) |
| Phase | Three |
| Auxiliary Contact Composition | 1 NO |
| Contactor Application | non-reversing |
| Control Circuit | common control circuit |
| Product Certifications | UL Listed || CSA |
| Electrical Connection | lugs ordered separately |
| Product Or Component Type | Contactor |
| [Uc] Control Circuit Voltage | 120 V AC |
| Line Rated Current | 270 A |
| [Ue] Rated Operational Voltage | 600 V AC |
| Maximum Horse Power Rating | 75 hp 200 V AC || 100 hp 230 V AC || 200 hp 460 V AC || 200 hp 575 V AC |
| Horsepower @ Three Phase - 480V AC | 200 HP |
| Overall Height | 8.11 in |
| Frequency | 50/60 Hz |
| NEMA Enclosure Material | Not Applicable |
| Contactor Style | NEMA |
| Horsepower @ Three Phase - 240V AC | 100 HP |
| Reversing Capability | Non-Reversing |
| Embedded Surge Suppressor | No |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Three Phase - 208V AC | 75 HP |
| Overall Depth | 8.71 in |
| Horsepower @ Single Phase - 240V AC | 100 HP |
| Coil Voltage | 120V AC |
| Full Load Current - Inductive | 270 A |
| Horsepower @ Three Phase - 600V AC | 200 HP |
| Maximum Voltage Rating | 600 V AC |
| Includes Auxiliary Contacts | Yes |
| Terminal Connection Type | Screw Clamp Terminals |
| Overall Width | 8.39 in |
| Number of Auxillary Contacts | 1 |
| Package Quantity | 1 |
