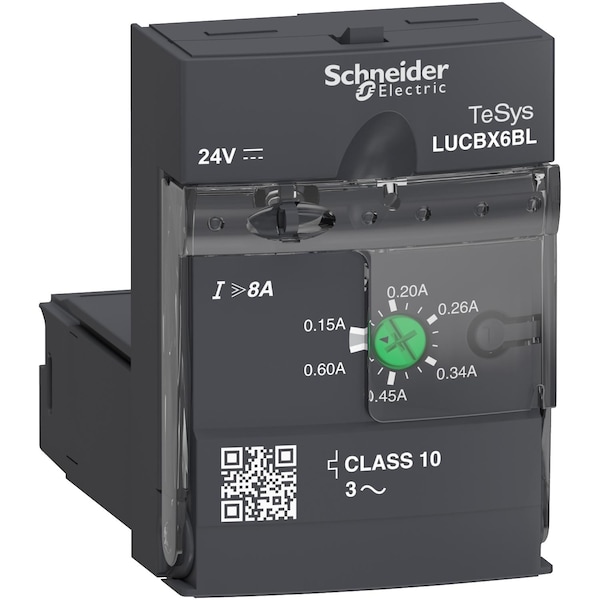

Unidad de control avanzado, TeSys Ultra, de 0.15A a 0.6A, para motores de 3 fases, protección y diagnóstico, clase 10, bobina de 24VDC.
| Item | Advcntrlunitcl103Ph 01506A 24Vdc |
|---|---|
| Overload Relay Amp Setting | 0.15 to 0.6 A |
| Coil Volts | 24V DC |
| Height | 66 mm |
| Features | Protection against overload and short-circuit; Protection against phase failure and phase imbalance; Earth fault protection; Manual reset; Free of Halogen, Mercury & Pvc; Resistance to Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration |
| Standards | EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1, with phase barrier, CSA C22.2 No 60947-4-1, with phase barrier |
| Hz | 40 to 60 Hz |
| Depth | 60 mm |
| Width | 45 mm |
| Operating Voltage | 690V AC |
| Protective Treatment | TH IEC 60068 |
| Typical Current Consumption | 130 mA 24 V DC I maximum while closing with LUB12, 220 mA 24 V DC I maximum while closing with LUB32, 220 mA 24 V DC I maximum while closing with LUB38, 60 mA 24 V DC I rms sealed with LUB12, 80 mA 24 V DC I rms sealed with LUB32, 80 mA 24 V DC I rms sealed with LUB38 |
| Product Specific Application | basic protection and advanced functions, communication |
| Resistance To Radiated Fields | 10 V/m 3 IEC 61000-4-3 |
| Product Name | TeSys Ultra |
| Operating Altitude | 6561.68 ft (2000 m) |
| Vibration Resistance | 2 gn 5-300 Hz power poles open IEC 60068-2-6, 4 gn 5-300 Hz power poles closed IEC 60068-2-6 |
| Range of Product | TeSys Ultra |
| Control Circuit Voltage Limits | 20...27 V DC 24 V in operation, 14.5 V DC 24 V drop-out |
| Tripping Threshold | 14.2 x Ir +/- 20 % |
| Thermal Overload Class | class 10 40-60 Hz -25-70°C IEC 60947-6-2, class 10 40-60 Hz -25-70°C UL 508 |
| Heat Dissipation | 2-2 W control circuit with LUB12, 3-3 W control circuit with LUB32, 3-3 W control circuit with LUB38 |
| Compatibility Code | LUCB |
| Ambient Air Temperature For Storage | -40-85°C |
| Motor Power Kw | 0.09 kW 400 to 440 V AC 50/60 Hz |
| Network Frequency | 40...60 Hz |
| Pvc Free | Yes |
| Range | TeSys |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-6-2 |
| Device Application | motor control, motor protection |
| Utilisation Category | AC-41, AC-43, AC-44 |
| Shock Resistance | 10 gn power poles open IEC 60068-2-27, 15 gn power poles closed IEC 60068-2-27 |
| Device Short Name | LUCB |
| Reset | manual reset |
| [Uc] Control Circuit Voltage | 24 V DC |
| Product or Component Type | Advanced control unit |
| Resistance To Fast Transients | 2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4 |
| Load Type | 3-phase motor self-cooled |
| Immunity To Radioelectric Fields | 10 V IEC 61000-4-6 |
| Fire Resistance | 960°C parts supporting live components IEC 60695-2-12, 650°C IEC 60695-2-12 |
| Resistance To Electrostatic Discharge | 8 kV 3 in open air IEC 61000-4-2, 8 kV 4 on contact IEC 61000-4-2 |
| Immunity To Microbreaks | 3 msec |
| Fixing Mode | plug-in |
| Operating Time | 35 ms opening with LUB12 control circuit, 35 ms opening with LUB32 control circuit, 35 ms opening with LUB38 control circuit, 70 ms closing with LUB12 control circuit, 70 ms closing with LUB32 control circuit, 70 ms closing with LUB38 control circuit |
| Safe Separation of Circuit | 400 V SELV between the control and auxiliary circuits IEC 60947-1; 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 |
| Product Compatibility | power base LUB12, power base LUB32, power base LUB38, power base LUB120, power base LUB320, power base LUB380, reversing contactor breaker LU2B12BL, reversing contactor breaker LU2B32BL, reversing contactor breaker LU2B38BL |
| Immunity To Voltage Dips | 70 % / 500 ms IEC 61000-4-11 |
| Ambient Air Temperature For Operation | -25-70°C |
| Function Available | protection against overload and short-circuit, protection against phase failure and phase imbalance, earth fault protection, manual reset |
| [Ui] Rated Insulation Voltage | 690 V IEC 60947-6-2, 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1 |
| Ip Degree of Protection | IP20 front panel and wired terminals IEC 60947-1; IP20 other faces IEC 60947-1; IP40 front panel outside connection zone IEC 60947-1 |
| [Ue] Rated Operational Voltage | 690 V AC |
| Thermal Protection Adjustment Range | 0.15 to 0.6 A |
| Rated Insulation Voltage | 690 V IEC 60947-6-2; 600 V UL 60947-4-1; 600 V CSA C22.2 No 60947-4-1 |
| Main Function Available | Protection against overload and short-circuit; Protection against phase failure and phase imbalance; Earth fault protection; Manual reset |
| Rated Operational Voltage | 690 V AC |
| Product Certifications | CCC, CSA, EAC, UL, ASEFA, ATEX, CE, Marine |
| Phase Failure Sensitivity | Yes |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947-6-2 |
| Control Circuit Voltage | 24 V DC |
| Package Quantity | 1 |
