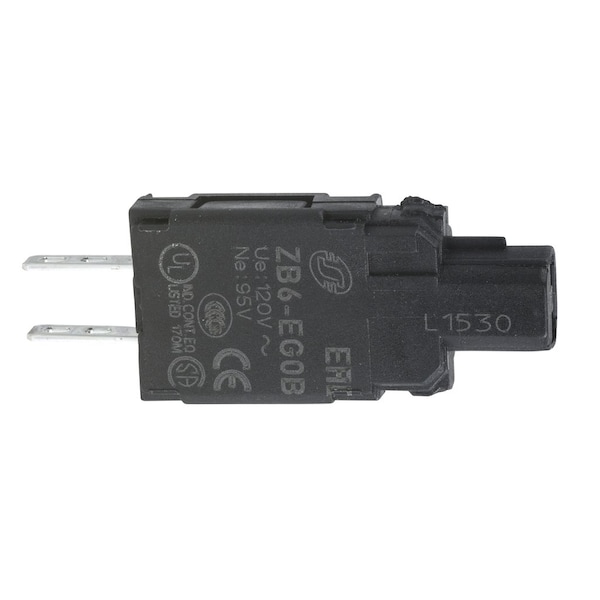

Cuerpo completo para luces piloto, Harmony XB6, bloque de luz con cuerpo/collar de fijación y bombilla de neón de 230 V.
| Item | Light block with body/fixing collar for |
|---|---|
| Standards | EN/IEC 60947-5-1, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-5, UL 508, JIS C 4520, JIS C 852 |
| Ambient Air Temperature For Storage | -40-70°C |
| Protective Treatment | TC |
| Operating Position | any position |
| Product or Component Type | complete body |
| Terminals Description Iso N°1 | PL |
| [Us] Rated Supply Voltage | 230 V AC |
| Ambient Air Temperature For Operation | -25-70°C |
| Light Block Supply | with resistor |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Electrical Shock Protection Class | class II IEC 61140 |
| Bulb Base | BA 9s |
| Connections - Terminals | Faston connectors 2.8 x 0.5 mm |
| Range of Product | Harmony XB6 |
| Light Source | neon |
| [Ui] Rated Insulation Voltage | 250 V 2)EN/IEC 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN 60947-1 |
| Device Short Name | ZB6 |
| Vibration Resistance | +/- 3 mm 2-500 Hz)IEC 60068-2-6, 5 gn 2-500 Hz)IEC 60068-2-6 |
| Signalling Type | steady |
| Product Certifications | GOST || UL || CSA || CCC |
| Package Quantity | 1 |
