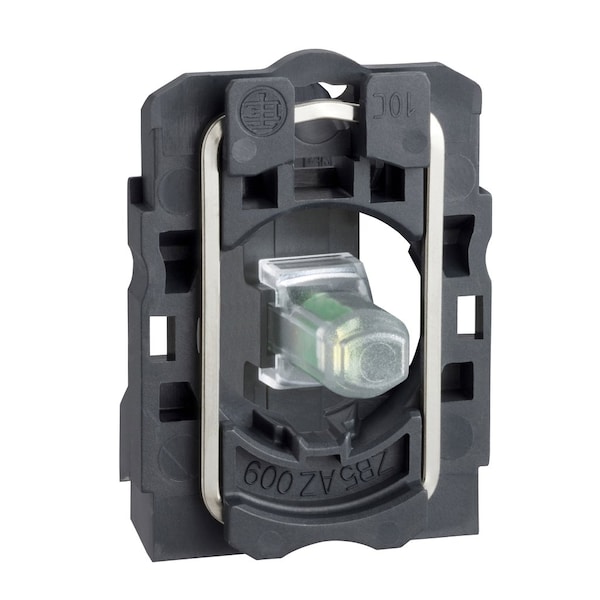

Ensamble completo de bloque de luz para cuerpo, Harmony XB5, plástico, LED universal, collar de fijación de cuerpo, 230...240V AC.
| Item | White light block with body/fixing colla |
|---|---|
| Standards | JIS C8201-5-1, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-4, IEC 60947-5-1, UL 508, JIS C8201-1 |
| Width | 30 mm |
| Height | 42 mm |
| Current Consumption | 14 mA |
| Terminals Description Iso N°1 | PL |
| Device Presentation | basic sub-assemblies |
| Shape of Screw Head | cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Supply Voltage Limits | 195-264 V AC |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| Electrical Shock Protection Class | class II IEC 60536 |
| Ambient Air Temperature For Storage | -40-70°C |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-2-6, 8 kV in free air (in insulating parts) IEC 61000-2-6 |
| Range of Product | Harmony XB5 |
| Protective Treatment | TH |
| Signalling Type | steady |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Light Source | LED |
| [Us] Rated Supply Voltage | 230...240 V AC 50/60 Hz |
| Product or Component Type | complete body/light block assembly |
| Fixing Collar Material | plastic |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Bulb Base | integral LED |
| Electromagnetic Emission | class B IEC 55011 |
| Ambient Air Temperature For Operation | -40-70°C |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Service Life | 100000 h at rated voltage and 25°C |
| Light Source Colour | white |
| Device Short Name | ZB5 |
| Product Certifications | BV || DNV || LROS (Lloyds register of shipping) || CSA || GL || UL Listed |
| Cad Overall Depth | 32 mm |
| Cad Overall Height | 42 mm |
| Cad Overall Width | 30 mm |
| Package Quantity | 1 |
