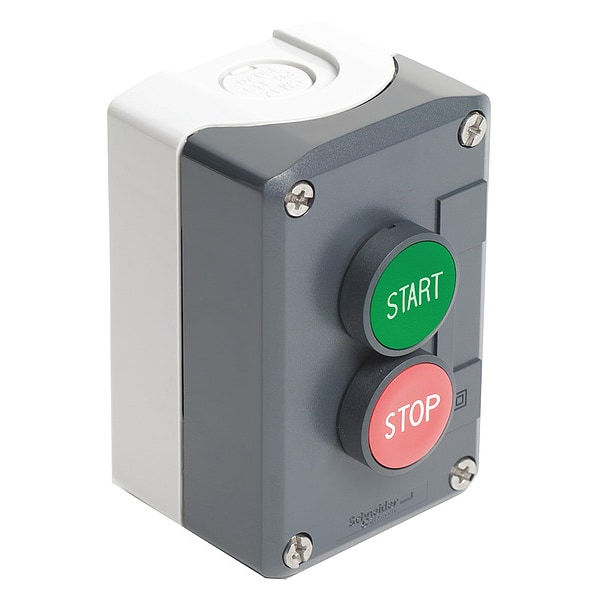

Estación de control completa, Harmony XALD, XALK, gris oscuro, botones pulsadores empotrados de 22mm, inicio verde 1NA y paro rojo 1NC, retorno por resorte.
| Item | 2 Push Buttons Cont Box |
|---|---|
| Material | polycarbonate |
| Cable Entry | 2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm |
| Standards | EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-5-5 || JIS C8201-1 |
| [Ie] Rated Operational Current | 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 |
| Tightening Torque | 0.8-1.2 N.m EN/IEC 60947-1 |
| Operator Profile | 2 flush push-buttons |
| Marking Location | marking on push-button |
| Ik Degree Of Protection | IK03 EN 50102 |
| Positive Opening | IEC, with EN 60947-5-1 appendix K |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Control Station Application | Start-Stop function |
| Overvoltage Category | class II IEC 60536 |
| Contacts Material | silver alloy (Ag/Ni) |
| Operating Travel | 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel) |
| [Ui] Rated Insulation Voltage | 600 V 3)EN/IEC 60947-1 |
| Protective Treatment | TH |
| Mechanical Durability | 5,000,000 cycle |
| Product Certifications | CSA || UL Listed |
| Colour Of Cover | dark grey RAL 7016 |
| Control Station Composition | 1 flush push-button, green 1 NO START || 1 flush push-button, red 1 NC STOP |
| Device Short Name | XALD |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1 |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Colour Of Marking | black marking when white caps || white marking when green, red or black caps |
| Operating Force | 3.5 N NC changing electrical state || 3.8 N NO changing electrical state |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Product Or Component Type | control station |
| Operators Description | green ''START'' 1 NO - red ''STOP'' 1 NC |
| Ambient Air Temperature For Operation | -40-70°C |
| Shape Of Screw Head | cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Ambient Air Temperature For Storage | -40-70°C |
| Vibration Resistance | 5 gn 12-500 Hz)IEC 60068-2-6 |
| Colour Of Base Of Enclosure | light grey RAL 7035 |
| Product Destination | for XB5 Ø 22 mm control and signalling units |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-1 |
| Electrical Reliability | λ < 10exp(-6) 5 V, 1 mA EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA EN/IEC 60947-5-4 |
| Contact Operation | slow-break |
| Range of Product | Harmony XALD |
| Package Quantity | 1 |
