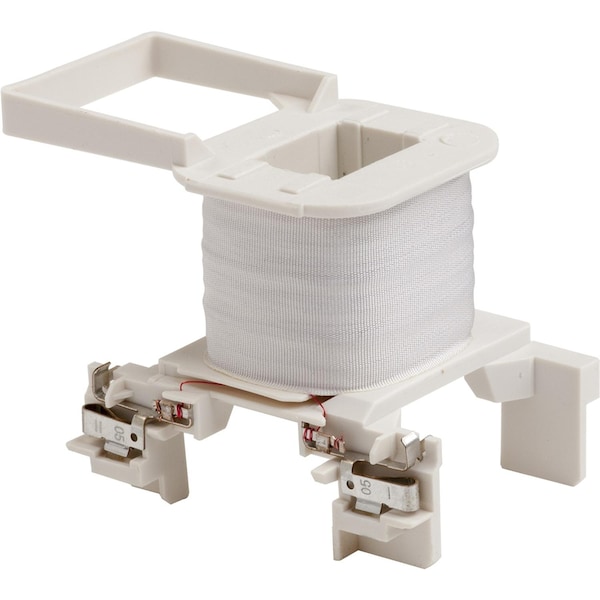

Bobina de contactor, TeSys Deca, LXD3, 220V CA 50/60Hz para contactor de 40...65A.
| Item - Relay | coil |
|---|---|
| Input or Control Voltage | 220 V AC |
| Power Consumption - Relay | 15-15 VA 0.3 20 A Deg C || 15-15 VA 0.3 20 A Deg C |
| Item | D40A To D65A Replace Coil 220 Vac 50/60 |
| Hz - Electrical | 50/60 Hz |
| Coil Technology | without built-in suppressor module |
| [Uc] Control Circuit Voltage | 220 V AC 50/60 Hz |
| Inductance of Closed Circuit | 10 H |
| Ambient Air Temperature For Operation | -5-60°C |
| Control Circuit Voltage Limits | drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60°C), operational: 0.8...1.1 Uc at 50 Hz (at <60°C), operational: 0.85...1.1 Uc at 60 Hz (at <60°C) |
| Product Compatibility | LC1D40A...D65A, LC1DT80A, LC1DT60A |
| Range | TeSys |
| Mechanical Durability | 6 Mcycles |
| Maximum Operating Rate | 3600 cyc/h 60°C |
| Product or Component Type | contactor coil |
| Inrush Power In Va | 160 VA 60 Hz cos phi 0.75 (at 68°F (20°C)); 160 VA 50 Hz cos phi 0.75 (at 68°F (20°C)) |
| Heat Dissipation | 4-5 W 50/60 Hz |
| Average Resistance | 182 Ohm 20°C |
| Control Circuit Type | AC 50/60 Hz |
| Hold-In Power Consumption In Va | 15 VA 60 Hz cos phi 0.3 (at 68°F (20°C)); 15 VA 50 Hz cos phi 0.3 (at 68°F (20°C)) |
| Device Short Name | LXD3 |
| Control Circuit Voltage | 220 V AC 50/60 Hz |
| Package Quantity | 1 |
