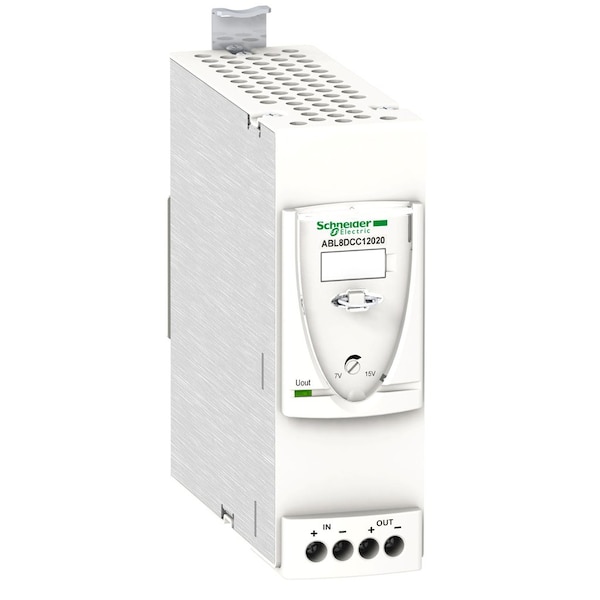

DC to DC Converter, 24-28.8V DC to 12V DC, 24VA, 271 Hz, DIN Rail
| Item | DC to DC Converter |
|---|---|
| Converts | 24-28.8V DC to 12V DC |
| VA Rating | 24 VA |
| Mounting | DIN Rail |
| Frequency | 271 Hz |
| Phase | Not Applicable |
| Output Voltage | 12 V DC |
| Ripple Volts Regulation | Less Than or Equal To 100mV |
| IP Rating | IP20 |
| Features | Mercury Free, PVC Free |
| Protection | Reverse Polarity; Overload Automatic Reset; Overvoltage Tripping if U Greater Than 7.8V, Automatic Reset; Short-Circuits Automatic Reset |
| Output Amps | 0.083 A |
| Line Regulation | 1 to 3% |
| Connection | Screw Terminal |
| Temp. Range | -25-60 °C |
| Input Voltage | 24...28.8 V DC |
| Load Regulation | 1 to 3 % |
| Standards | RCM, EAC, cCSAus, UL |
| Status Indicator | For Output Voltage LED Green |
| Ambient Air Temperature For Storage | -40-85°C |
| Ip Degree of Protection | IP20 conforming to IEC 60529 |
| Relative Humidity | 0-90 % during operation, 0-95 % during storage |
| Dielectric Strength | 500 V between input and ground, 500 V between input and output, 500 V between output and ground |
| Line And Load Regulation | 1...3 % |
| Kw Rating | 24 W |
| Pvc Free | Yes |
| Output Voltage Limits | 7...15 V |
| Power Dissipation In W | 4 W |
| Input Voltage Limits | 22...30 V |
| Fixing Mode | by clips 35 mm symmetrical DIN rail horizontal, by clips 35 mm symmetrical DIN rail vertical |
| Input Protection Type | against reverse polarity |
| Range of Product | Phaseo Universal |
| Residual Ripple | <= 100 mV |
| Local Signalling | for output voltage (> 6 V) 1 LED (green) |
| Efficiency | 0.82 |
| Overvoltage Category | class 3 |
| Product or Component Type | converter module |
| Power Supply Output Current | 2 A |
| Output Protection Type | against overload automatic reset, against overvoltage tripping if U > 7.8 V, automatic reset, against short-circuits automatic reset |
| Operating Altitude | 6561.68 ft (2000 m) |
| Vibration Resistance | 2 gn 11.9-150 Hz)IEC 61131-2, 3.5 mm 3-11.9 Hz)IEC 61131-2 |
| Connections - Terminals | input connection screw type terminals 2 x 0.5...2 x 4 mm² AWG 24...AWG 10, output connection screw type terminals 2 x 0.5...2 x 4 mm² AWG 24...AWG 10 |
| Ambient Air Temperature For Operation | -25-60°C |
| Environmental Characteristic | EMC EN 50081-1, EMC IEC 61000-6-3, EMC IEC 61000-6-2, safety IEC 60950-1, safety IEC 61204 |
| Package Quantity | 1 |
