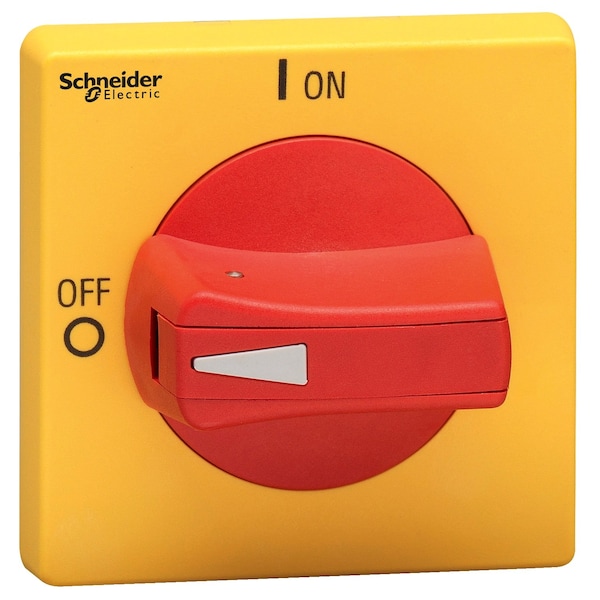

Interruptor de desconexión, TeSys VLS, mango rotativo sobresaliente, montaje en orificio, 65x65mm, mango rojo, eje de 5mm, desactivable.
| Item | Rotary handle |
|---|---|
| Width | 2.56 in |
| Standards | EU RoHS Directive, RoHS exemption information, RoHS exemption information |
| NEMA Enclosure Type | 1, 12, 12K, 2, 3R, 4, 4X |
| Depth | 2.8 in |
| Height | 2.56 in |
| IP Rating | 65 |
| Range Compatibility | TeSys (TeSys VARIO LS) VLS3P |
| Fixing Mode | hole 22.5 mm |
| Marking | 0 - 1 |
| Base Dimension | 65 mm x 65 mm |
| Device Short Name | VLSH |
| Handle Colour | red |
| Tightening Torque | 2.3 N.m |
| Rotary Handle Padlocking | 1 to 3 padlocks 4-8 mm |
| Nema Degree Of Protection | NEMA 1 || NEMA 2 UL 508 || NEMA 3R UL 508 || NEMA 4 UL 508 || NEMA 4X UL 508 || NEMA 12 UL 508 || NEMA 12K UL 508 |
| Product Or Component Type | rotary handle |
| Ip Degree Of Protection | IP65 |
| Handle Front Plate Colour | yellow |
| Range | TeSys |
| Package Quantity | 1 |
