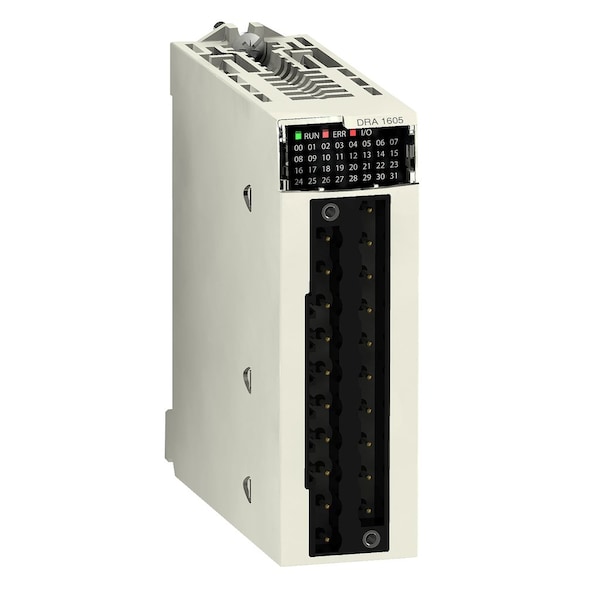

Módulo de salida discreta, Modicon X80, 16 salidas de relé NC, 24 a 240V AC, 24 a 48V DC.
| Item | Discrete output module X80 - 16 outputs |
|---|---|
| Width | 4.4 in |
| Height | 2.1 in |
| Length | 4.6" |
| Output Overload Protection | use 1 fast blow fuse per channel or group of channel |
| Status Led | 1 LED (Green) RUN, 1 LED per channel (Green) channel diagnostic, 1 LED (Red) ERR, 1 LED (Red) I/O |
| Electrical Durability | AC-15 100000 cycles 240 VA 200 V 0.7 ), AC-15 100000 cycles 120 VA 200 V 0.35 ), AC-12 100000 cycles 200 VA 100 V, AC-12 100000 cycles 80 VA 48 V, AC-12 100000 cycles 50 VA 24 V, AC-15 100000 cycles 120 VA 100 V, AC-15 100000 cycles 120 VA 24 V, AC-15 100000 cycles 120 VA 48 V, DC-12 100000 cycles 24 W 24 V, DC-13 100000 cycles 10 W 24 V, DC-13 100000 cycles 10 W 48 V, AC-15 300000 cycles 72 VA 200 V 0.7 ), AC-15 300000 cycles 36 VA 200 V 0.35 ), AC-12 300000 cycles 200 VA 200 V, AC-12 300000 cycles 80 VA 100 V, AC-12 300000 cycles 50 VA 48 V, AC-15 300000 cycles 36 VA 100 V, AC-15 300000 cycles 72 VA 100 V, AC-15 300000 cycles 36 VA 48 V, AC-15 300000 cycles 72 VA 48 V, AC-15 300000 cycles 36 VA 24 V, AC-15 300000 cycles 72 VA 24 V, DC-13 300000 cycles 3 W 24 V, DC-13 300000 cycles 3 W 48 V, DC-13 7000 cycles 24 W 24 V, DC-13 7000 cycles 24 W 48 V, DC-12 50000 cycles 24 W 48 V |
| Ambient Air Temperature For Storage | -40-85°C |
| Ambient Air Temperature For Operation | 0-60°C |
| Discrete Output Number | 16 EN/IEC 61131-2 |
| Output Short-Circuit Protection | use 1 fast blow fuse per channel or group of channel |
| [Ith] Conventional Free Air Thermal Current | 2 A |
| Discrete Output Voltage | 24...48 V 19...60 V DC, 24...240 V 19...264 V AC |
| Typical Current Consumption | 100 mA 3.3 V DC, 95 mA 24 V DC |
| Power Dissipation In W | 3 W |
| Mtbf Reliability | 2,100,000 H |
| Ip Degree of Protection | IP20 |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| Response Time On Output | < 8 ms activation, < 10 ms deactivation |
| Minimum Switching Current | 1 mA 5 V DC |
| Output Overvoltage Protection | use discharge diode on each output DC, use RC circuit on each output AC, use ZNO surge limiter on each output AC |
| Dielectric Strength | 2000 V AC 50/60 Hz 1 min |
| Product or Component Type | output module |
| Insulation Resistance | > 10 MOhm 500 V DC |
| Operating Altitude | 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor |
| Discrete Output Type | relay |
| Range of Product | Modicon X80 |
| Relative Humidity | 5-95 % 55-55°C without condensation |
| Package Quantity | 1 |
