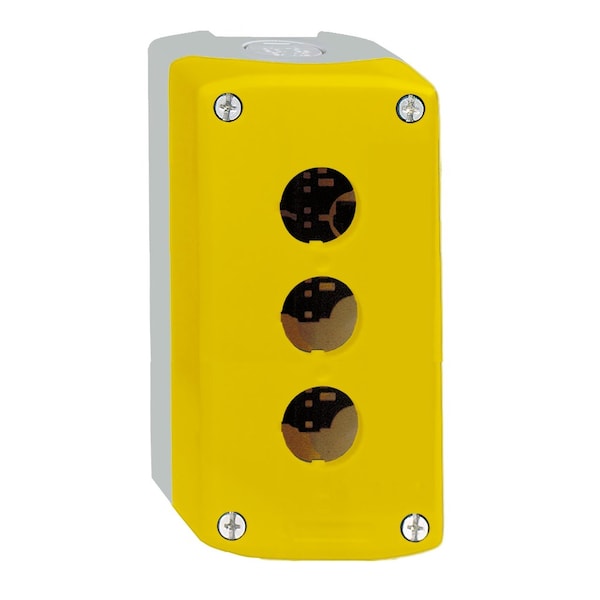

Estación de control vacía, Harmony XALD, XALK, plástico, amarillo, 3 recortes, sin marcas, 2 conexiones para entrada de cable, certificado por UL/CSA.
| Item | Yellow empty enclosure lid with light gr |
|---|---|
| Material | polycarbonate |
| Cable Entry | 2 knock-outs for cable entry 14-14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm |
| Standards | JIS C8201-5-1, EN/IEC 60947-5-1, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1 |
| Number of Vertical Rows | 3 |
| Ip Degree of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Ik Degree of Protection | IK03 EN 50102 |
| Group of Product | standard yellow |
| Protective Treatment | TH |
| Ambient Air Temperature For Storage | -40-70°C |
| Device Short Name | XALK |
| Number of Cut-Out | 3 cut-outs |
| Main Group | 3 cut-outs |
| Colour of Cover | yellow RAL 1021 |
| Control Station Application | emergency stop function, emergency switching off function |
| Product or Component Type | control station, empty station |
| Number of Horizontal Rows | 1 |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Colour of Base of Enclosure | light grey RAL 7035 |
| Range of Product | Harmony XALK |
| Mounting of Block | front mounting || rear mounting |
| Ambient Air Temperature For Operation | -40-70°C |
| Nema Degree of Protection | NEMA 13 || NEMA 4X |
| Overvoltage Category | class II IEC 60536 |
| Product Destination | for XB5 Ø 22 mm control and signalling units |
| Package Quantity | 1 |
