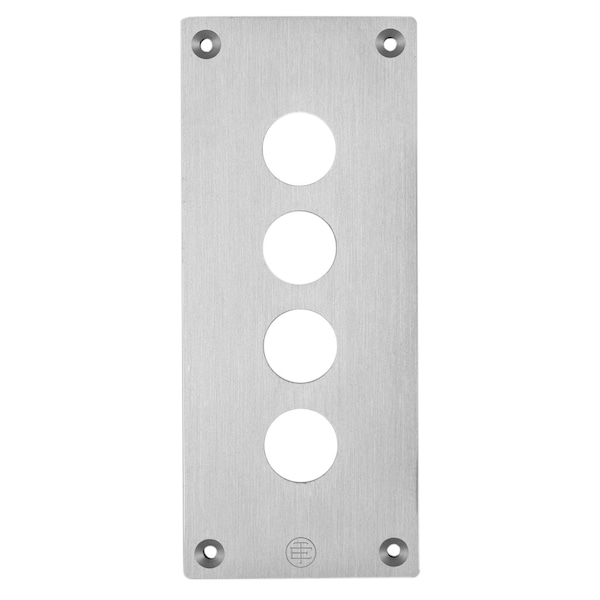

Placa frontal con tornillos de fijación, Harmony XAP, metal, 4 recortes, 22mm, 72 x 171 mm.
| Item | Drilled front plate - XAP-E - metal - 4 |
|---|---|
| Material | anodised aluminium |
| Product Destination | for Ø 22 mm control and signalling units |
| Overvoltage Category | class I IEC 60536, class I NF C 20-030 |
| Resistance To Chemical Agents | good resistant to acetone, good resistant to alcohols, good resistant to chloride and fluoride solvents, good resistant to diluted mineral acids, good resistant to oils and petrol, good resistant to organic acids, good resistant to salts |
| Protective Treatment | TH, TC |
| Ambient Air Temperature For Storage | -40-70°C |
| Device Mounting | flush |
| Number of Cut-Out | 4 cut-outs |
| Ambient Air Temperature For Operation | -25-70°C |
| Product Front Plate Size | 72 mm x 171 mm |
| Product or Component Type | front plate with fixing screws |
| Device Short Name | XAPE |
| Range of Product | Harmony |
| Ip Degree of Protection | IP65 IEC 60529 || IP657 NF C 20-010 |
| Package Quantity | 1 |
