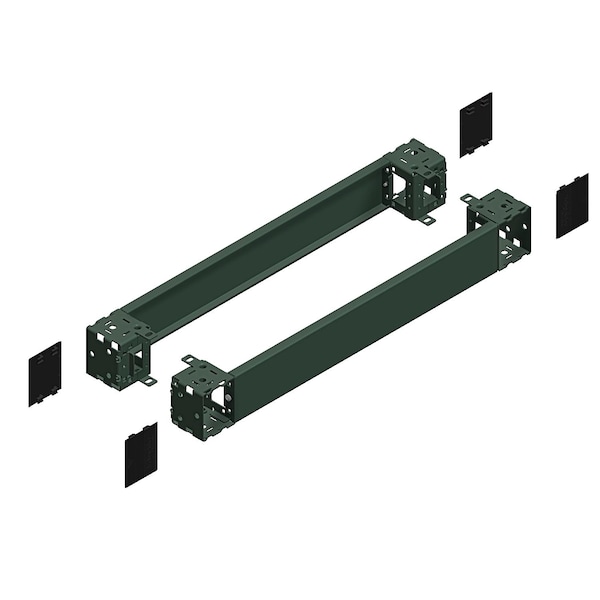

Front & rear plinth, PanelSeT SFN, Spacial SF, for electrical enclosure W400mm, plinth H100mm
| Item | Front Plinth |
|---|---|
| Dimension | 100 mm. H x 400 mm. W |
| Height | 100 mm |
| Width | 400 mm |
| Color | Gray |
| Finish | Polyester Powder |
| Device Composition | fixing elements, 4 corner cover, 1 front panel, 1 rear panel, 4 corner |
| Range | Spacial |
| Ip Degree of Protection | IP20 complete plinth |
| Permanent Permissible Load | 1300 kg |
| Fixing Mode | by fixing element - on structure |
| Range Compatibility | Spacial Spacial SF, Spacial Spacial SM |
| Device Application | multi-purpose |
| Ik Degree of Protection | IK10 |
| Mounting Support | plinth side panels |
| Package Quantity | 1 |
