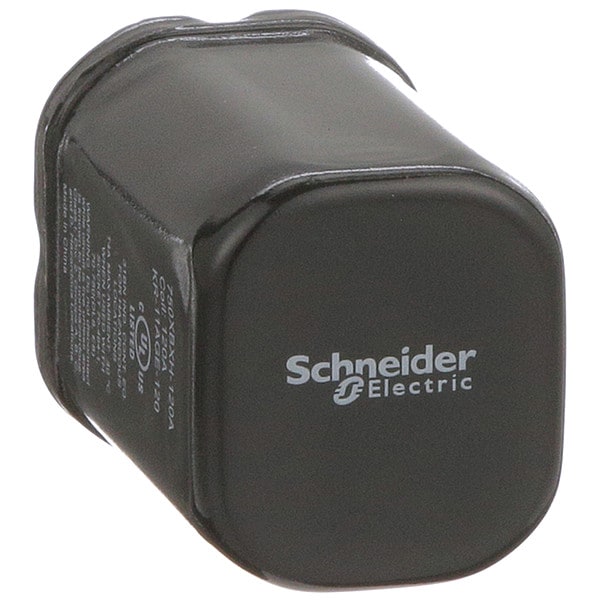

Relé herméticamente sellado, 120V AC para la bobina, octal, 8 pines, DPDT.
| Item - Relay | Hermetically Sealed Relay |
|---|---|
| Item | Hermetically Sealed Relay |
| Coil Volts | 120V AC |
| AC Contact Rating - Relay | 12A @ 240V |
| DC Contact Rating - Relay | 12 A @ 28 V |
| Base Type - Plug In Relay | Octal |
| Number of Pins - Relay | 8 |
| Contact Form - Relay | DPDT |
| Mounting - Relay | Plug In |
| HP @ 120V | 1/3 hp |
| Power Consumption - Relay | 2 VA |
| Contact Material | Silver Alloy |
| Body Height - Relay | 2.1 in |
| Body Width - Relay | 1.44 in |
| Body Depth - Relay | 1.61 in |
| Overall Height - Relay | 2.1 in |
| Standards | CSA Certified, UL Listed |
| HP @ 240V | 1/2 hp |
| Socket Code | A |
| Contact Rating | 12A @ 240VAC/28VDC |
| Contact Form | DPDT |
| Base Type | Octal |
| Push To Test | No |
| Pins | 8 |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Status Indicator | None |
| Socket | Mfr. No. 70-464-1, 70-750E8-1 |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Coil Resistance | 1,700 ohms |
| Sealing | Enclosed |
| Weight | 4.59 oz |
| Coil Voltage | 120 V AC |
| Overall Depth | 2.07 in |
| Contact Rating (AC) | 12 A @ 120V, 12 A @ 240V |
| Response Time | 20 msec |
| Series | 750H Haz Location Series |
| Minimum Switching Current | 100 mA |
| Power Consumption | 1.2 W, 2.75 VA |
| Maximum Switching Voltage | 300 V |
| Input Voltage | 120 V AC |
| Pin Shape | Round |
| Minimum Operating Temperature | -40 deg F |
| Motor Rated | Yes |
| Contact Rating (DC) | 12 A @ 28 V |
| Body Depth | 2.07 in |
| Horsepower @ 120V AC | 1/3 hp |
| Current Rating | 12 A |
| Flat Pin Width | Not Applicable |
| Body Height | 1.62 in |
| Number of Pins | 8 |
| Push-To-Test Method | No Button |
| Horsepower @ 240V AC | 0.5 HP |
| Mounting Style | Socket |
| Dielectric Strength | 1,500V AC Between Open Contacts, 1,600V AC Between Coil and Contact, 1,600V AC Between Poles |
| Electrical Connection | 8-Pin Terminal |
| Mechanical Operating Durability | 10,000,000 |
| Maximum Operating Temperature | 131 deg F |
| IP Rating | IP67 |
| Base Shape | Octal |
| Operating Current | 12 A at 120V AC (Conforming to UL), 12 A at 240V AC (Conforming to UL), 12 A at 28V DC (Conforming to UL) |
| Electrical Operating Durability | 100,000 |
| Body Width | 1.44 in |
| Depth | 1.62 in |
| Width | 1.44 in |
| Contacts Material | Silver alloy |
| Height | 2.07 in |
| Ambient Air Temperature for Storage | -40 to 185°F |
| Rated Operational Current | 12 A at 120 V AC conforming to UL; 12 A at 240 V AC conforming to UL; 12 A at 28 V DC conforming to UL |
| Power consumption in W | 1.2 W DC |
| Motor Power HP | 0.5 hp 240 V AC 50/60 Hz; 0.33 hp 120 V AC 50/60 Hz |
| Electrical Durability | 100000 cycles resistive |
| Contact Composition | 2 NC + 2 NO |
| Ambient Air Temperature for Operation | -40 to 131°F |
| Operating Time | 20 msec |
| Product Type | Relay |
| Mechanical Durability | 10,000,000 cycle |
| Shock Resistance | 10 gn |
| Drop-out Voltage Threshold | >= 0.15 Uc AC; >= 0.1 Uc DC |
| Power consumption in VA | 2.75 VA AC |
| Connections Terminals | octal terminal 8 pins) |
| Vibration Resistance | 3 gn 35 to 150 Hz)operating; +/- 1 mm 10 to 35 Hz)operating; 6 gn 35 to 150 Hz)not operating; +/- 1 mm 10 to 35 Hz)not operating |
| Product Certifications | CSA, UL |
| Voltage Range | 0.85...1.1 Un AC/DC |
| Package Quantity | 1 |
