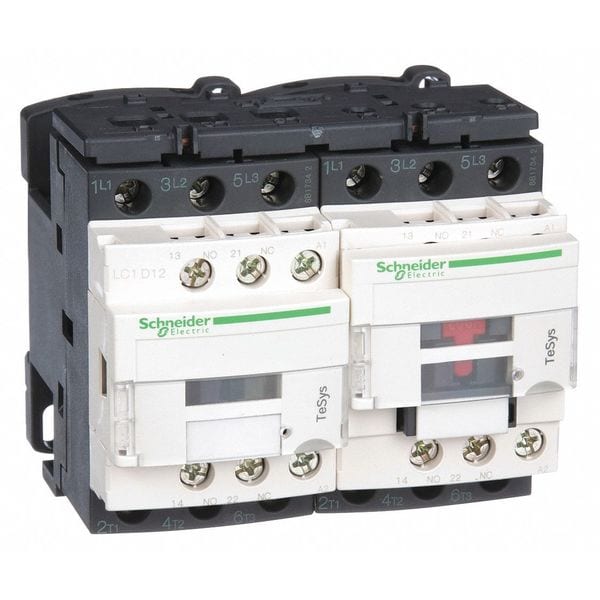

Contacto magnético IEC, 3 polos, 120 V CA, 12 A, Reversión: Sí
| Full Load Amps-Inductive | 12 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Action | Reversing |
| Full Load Amps-Resistive | 25 A |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 1 hp |
| Height | 3.03 in |
| HP @ 1 Phase - 240V | 2 hp |
| HP @ 3 Phase - 208V | 3 hp |
| Width | 3.54 in |
| Depth | 3.39 in |
| HP @ 3 Phase - 240V | 3 hp |
| HP @ 3 Phase - 575V | 10 hp |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 7 1/2 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 |
| NEMA Size | Not Applicable |
| Standards | BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed |
| Auxiliary Contact Form | 1NO/1NC |
| Frame / Series / Class / Code | TeSys |
| Series | TeSys Deca |
| Operating Speed | 3600 cycles per hr |
| Watts Loss | 2 to 3W |
| Fuse Amps | 10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit) |
| Impulse Withstand Voltage | 6 kV |
| Switching Current | 5 mA (Signalling Circuit) |
| Electrical Connection | Screw Clamp Terminals |
| Application | Motor Control, Resistive Load |
| Includes Protective Cover | Yes |
| Mounts On | Plate, Rail |
| Inrush VA | 70 VA |
| Non-Overlap Time | 1.5 msec |
| Hold VA | 7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C) |
| Max. Operating Watts | 3 kW (at 220 to 230V AC 50 Hz), 5.5 kW (at 380 to 400V AC 50 Hz), 5.5 kW (at 415 to 440V AC 50 Hz), 7.5 kW (at 500V AC 50 Hz), 7.5 kW (at 660 to 690V AC 50 Hz) |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Working Height | Up to 9,842.52 ft |
| Impedance | 2.5 mOhm |
| Mechanical Durability | 15 Mcycles |
| Max. Temperature | 850°C |
| Overvoltage Category | CAT III |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Tightening Torque | 1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit) |
| Electrical Durability | 2 Mcycles (12 A, AC-3, Less than 440 V); 0.8 Mcycles (25 A, AC-1, Less than 440 V) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit) |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Rated Voltage | 690V AC, 300V DC |
| Rated Insulation Volts | 600/690V |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Fire Rating | UL 94 V1 |
| Rated Short-Time Withstand Current | 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Operating Time | 12 to 22 ms (Closing), 4 to 19 ms (Opening) |
| Control Circuit Voltage Limits | Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz) |
| Features | Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar |
| IP Rating | IP20 |
| Rated Breaking Capacity | 250 A @ 440V |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Rated Making Capacity | 250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit) |
| Net Weight | 0.697 kg |
| Maximum Voltage Rating | 690 V AC |
| Terminal Connection Type | Screw Clamp Terminals |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Electrical Operating Durability | 2,000,000, 800,000 |
| Contactor Style | IEC |
| Horsepower @ Three Phase - 480V AC | 7.5 HP |
| Reversing Capability | Reversing |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Horsepower @ Single Phase - 240V AC | 2 HP |
| Horsepower @ Three Phase - 208V AC | 3 HP |
| Maximum Operating Temperature | 140 deg F |
| Coil Voltage | 120V AC |
| NEMA Enclosure Rating | No Enclosure |
| Full Load Current - Resistive | 25 A |
| Embedded Surge Suppressor | No |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| Number of Auxillary Contacts | 2 |
| Overall Height | 3.03 in |
| Number of Normally Open Main Contacts | 3 |
| NEMA Enclosure Material | Not Applicable |
| Full Load Current - Inductive | 12 A |
| Minimum Operating Temperature | -40 deg F |
| Includes Auxiliary Contacts | Yes |
| Overall Depth | 3.39 in |
| Mechanical Operating Durability | 15,000,000 |
| Overall Width | 3.54 in |
| Mounting Style | DIN Rail, Plate |
| Horsepower @ Three Phase - 600V AC | 10 HP |
| Frequency | 50/60 Hz |
| Poles Description | 3P |
| Power Dissipation Per Pole | 1.56 W AC-1; 0.36 W AC-3; 0.36 W AC-3e |
| Rated Operational Current | 25 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 12 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 12 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit |
| Control Circuit Voltage | 120 V AC 50/60 Hz |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1; 40 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 25 A gG at Less than or Equal to 690 V coordination type 2 for power circuit |
| Motor Power HP | 1 hp at 115 V AC 60 Hz for 1 phase motors; 2 hp at 230/240 V AC 60 Hz for 1 phase motors; 3 hp at 200/208 V AC 60 Hz for 3 phase motors; 3 hp at 230/240 V AC 60 Hz for 3 phase motors; 7.5 hp at 460/480 V AC 60 Hz for 3 phase motors; 10 hp at 575/600 V AC 60 Hz for 3 phase motors |
| Insulation Resistance | Greater than 10 MOhm for signalling circuit |
| Product Certifications | DNV; CSA; CCC; UL; GL; LROS (Lloyds register of shipping); BV; RINA; GOST; UKCA |
| Rated Short Time Withstand Current | 30 A 104°F (40°C) - 10 min for power circuit; 61 A 104°F (40°C) - 1 min for power circuit; 105 A 104°F (40°C) - 10 s for power circuit; 210 A 104°F (40°C) - 1 s for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit |
| Device Presentation | Preassembled with reversing power busbar |
| Pollution Degree | 3 |
| Rated Operational Voltage | Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC |
| Mechanical Robustness | Vibrations contactor open2 Gn, 5 to 300 Hz; Vibrations contactor closed4 Gn, 5 to 300 Hz; Shocks contactor open10 Gn for 11 ms; Shocks contactor closed15 Gn for 11 ms |
| Motor Power KW | 3 kW at 220 to 230 V AC 50 Hz; 5.5 kW at 380 to 400 V AC 50 Hz; 5.5 kW at 415 V AC 50 Hz; 5.5 kW at 440 V AC 50 Hz; 7.5 kW at 500 V AC 50 Hz; 7.5 kW at 660 to 690 V AC 50 Hz |
| Front Cover | With |
| Power Pole Contact Composition | 3 NO |
| Protective Treatment | THIEC 60068-2-30 |
| Product Or Component Type | Reversing contactor |
| Contactor Application | Resistive load |
| Ambient Air Temperature For Storage | -76 to 176°F |
| IP Degree Of Protection | IP20 front face IEC 60529 |
| Climatic Withstand | IACS E10; IEC 60947-1 Annex Q category D |
| Mounting Support | Rail |
| Inrush Power in VA | 70 VA 60 Hz cos phi 0.75 (at 68°F (20°C)); 70 VA 50 Hz cos phi 0.75 (at 68°F (20°C)) |
| Conventional Free Air Thermal Current | 10 A (at 140°F (60°C)) for signalling circuit; 25 A (at 140°F (60°C)) for power circuit |
| Control Circuit Type | AC 50/60 Hz |
| Hold-In Power Consumption in VA | 7.5 VA 60 Hz cos phi 0.3 (at 68°F (20°C)); 7 VA 50 Hz cos phi 0.3 (at 68°F (20°C)) |
| Maximum Operating Rate | 3600 cyc/h 140°F (60°C) |
| Interlocking Type | Mechanical |
| IRMS Rated Making Capacity | 250 A at 440 V for power circuit conforming to IEC 60947; 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1 |
| Connections - Terminals | Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Power circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible with cable end; Power circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²)flexible with cable end; Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)solid; Power circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)solid; Control circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Control circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Control circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible with cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²)flexible with cable end; Control circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)solid; Control circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)solid |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Utilisation Category | AC-3; AC-1; AC-3e |
| Coil Technology | Without built-in suppressor module |
| Minimum Switching Current | 5 mA (for signalling circuit) |
| Auxiliary Contacts Type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1 |
| Flame Retardance | V1 conforming to UL 94 |
| Operating Altitude | 0 to 9842.52 ft (0 to 3000 m) |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Heat Dissipation | 2 to 3 W 50/60 Hz |
| Product Name | TeSys Deca |
| Fire Resistance | 1562°F IEC 60695-2-1 |
| Ambient Air Temperature For Operation | -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating |
| Rated Insulation Voltage | Power circuit 690 V IEC 60947-4-1; Power circuit 600 V CSA; Power circuit 600 V UL; Signalling circuit 690 V IEC 60947-1; Signalling circuit 600 V CSA; Signalling circuit 600 V UL |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Average Impedance | 2.5 mOhm - Ith 25 A 50 Hz for power circuit |
| Package Quantity | 1 |
