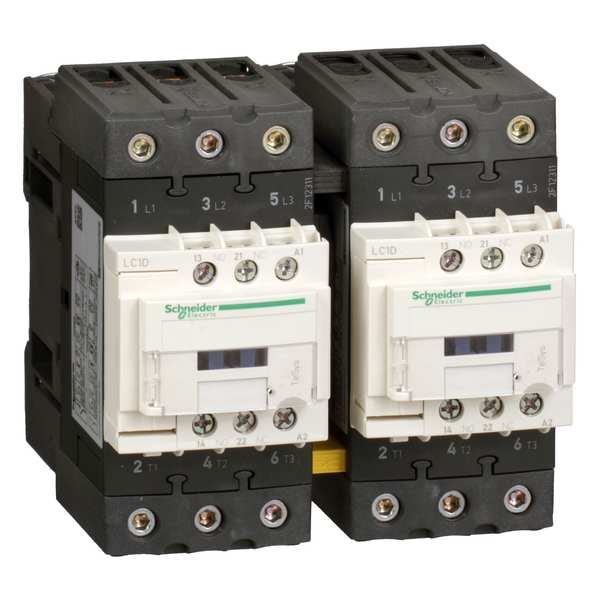

Contactores magnéticos IEC, 3 polos, 120 V CA, 40 A, reversionando: Sí
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 40 A |
| Action | Reversing |
| Full Load Amps-Resistive | 60 A |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 3 hp |
| HP @ 1 Phase - 240V | 5 hp |
| Height | 4.8 in |
| HP @ 3 Phase - 208V | 10 hp |
| Width | 4.69 in |
| HP @ 3 Phase - 240V | 10 hp |
| Depth | 4.72 in |
| HP @ 3 Phase - 575V | 30 hp |
| HP @ 3 Phase - 480V | 30 hp |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | None |
| Hz | 50/60 |
| Standards | BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed |
| Frame / Series / Class / Code | TeSys |
| Auxiliary Contact Form | 1NO/1NC |
| Series | TeSys Deca |
| NEMA Size | Not Applicable |
| Features | Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar |
| Overall Width | 4.69 in |
| Overall Height | 4.8 in |
| Application | Motor Control, Resistive Load |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Fuse Amps | 10 A (Signalling Circuit), 80 A (Type 1 Power Circuit), 80 A (Type 2 Power Circuit) |
| Mounts On | Plate, Rail |
| Electrical Connection | Control Circuit: Screw Clamp Terminals, Power Circuit: EverLink BTR Screw Connectors |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Control Circuit Voltage Limits | Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 60 Hz) , Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 60 Hz) |
| Operating Speed | 3600 cycles per hr |
| Switching Current | 5 mA (Signalling Circuit) |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 60 A (at 60°C Power Circuit) |
| Watts Loss | 4 to 5W |
| Tightening Torque | 1.7 Nm (Control Circuit), 2.5 to 8 Nm (Power Circuit) |
| Net Weight | 1.87 kg |
| Rated Insulation Volts | 600/690V |
| Hold VA | 13 VA |
| Inrush VA | 140 VA |
| Rated Voltage | 690V AC, 300V DC |
| Rated Short-Time Withstand Current | 72 A (at 40°C for 10 min Power Circuit), 165 A (at 40°C for 1 min Power Circuit), 320 A (at 40°C for 10 s Power Circuit), 720 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| IP Rating | IP20 |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Rated Breaking Capacity | 800 A @ 440V |
| Overvoltage Category | CAT III |
| Switching Voltage | 17 V (Signalling Circuit) |
| Max. Operating Watts | 18.5 kW (at 380 to 400V AC 50 Hz), 11 kW (at 220 to 230V AC 50 Hz), 22 kW (at 415 to 440V AC 50 Hz), 22 kW (at 500V AC 50 Hz), 30 kW (at 660 to 690V AC 50 Hz) |
| Impulse Withstand Voltage | 6 kV |
| Impedance | 1.5 mOhm |
| Working Height | Up to 9,842.52 ft |
| Operating Time | 4 to 19 ms (Opening), 12 to 26 ms (Closing) |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Mechanical Durability | 6 Mcycles |
| Non-Overlap Time | 1.5 msec |
| Includes Protective Cover | Yes |
| Electrical Durability | 1.5 Mcycles (40 A, AC-3, Less than 440 V); 1.4 Mcycles (60 A, AC-1, Less than 440 V) |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 800 A @ 440V (Power Circuit) |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Fire Rating | UL 94 V1 |
| Max. Temperature | 850°C |
| Horsepower @ Three Phase - 600V AC | 30 HP |
| Number of Normally Open Main Contacts | 3 |
| Full Load Current - Inductive | 40 A |
| Reversing Capability | Reversing |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Electrical Operating Durability | 1,400,000, 1,500,000 |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Mounting Style | DIN Rail, Plate |
| Includes Auxiliary Contacts | Yes |
| Full Load Current - Resistive | 60 A |
| Frequency | 60 Hz |
| Minimum Operating Temperature | -40 deg F |
| Horsepower @ Three Phase - 240V AC | 10 HP |
| Maximum Operating Temperature | 140 deg F |
| Maximum Voltage Rating | 690 V AC |
| NEMA Enclosure Rating | No Enclosure |
| Overall Depth | 4.72 in |
| NEMA Enclosure Material | Not Applicable |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Coil Voltage | 120V AC |
| Terminal Connection Type | Screw Clamp Terminals |
| Mechanical Operating Durability | 6,000,000 |
| Embedded Surge Suppressor | No |
| Number of Auxillary Contacts | 2 |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Horsepower @ Three Phase - 480V AC | 30 HP |
| Contactor Style | IEC |
| Insulation Resistance | Greater than 10 MOhm for signalling circuit |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Product Name | TeSys, TeSys D Deca |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Ambient Air Temperature For Operation | -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating |
| Product Certifications | UL; CSA; RINA; GOST; CCC; DNV; LROS (Lloyds register of shipping); GL; BV; UKCA |
| Heat Dissipation | 4 to 5 W 60 Hz |
| Ambient Air Temperature For Storage | -76 to 176°F |
| Auxiliary Contacts Type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1 |
| Mechanical Robustness | Vibrations contactor open2 Gn, 5 to 300 Hz; Vibrations contactor closed4 Gn, 5 to 300 Hz; Shocks contactor open10 Gn for 11 ms; Shocks contactor closed15 Gn for 11 ms |
| Average Impedance | 1.5 mOhm - Ith 60 A 50 Hz for power circuit |
| Maximum Operating Rate | 3600 cyc/h 140°F (60°C) |
| Conventional Free Air Thermal Current | 10 A (at 140°F (60°C)) for signalling circuit; 60 A (at 140°F (60°C)) for power circuit |
| Rated Operational Voltage | Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC |
| Rated Insulation Voltage | Power circuit 690 V IEC 60947-4-1; Power circuit 600 V CSA; Power circuit 600 V UL; Signalling circuit 690 V IEC 60947-1; Signalling circuit 600 V CSA; Signalling circuit 600 V UL |
| Front Cover | With |
| Rated Short Time Withstand Current | 72 A 104°F (40°C) - 10 min for power circuit; 165 A 104°F (40°C) - 1 min for power circuit; 320 A 104°F (40°C) - 10 s for power circuit; 720 A 104°F (40°C) - 1 s for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit |
| Utilisation Category | AC-3; AC-1; AC-3e |
| Operating Altitude | 0 to 9842.52 ft (0 to 3000 m) |
| Flame Retardance | V1 conforming to UL 94 |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| IP Degree Of Protection | IP20 front face IEC 60529 |
| Control Circuit Type | AC 60 Hz |
| Protective Treatment | THIEC 60068-2-30 |
| Control Circuit Voltage | 120 V AC 60 Hz |
| Interlocking Type | Mechanical |
| Power Pole Contact Composition | 3 NO |
| Mounting Support | Rail, Plate |
| Rated Operational Current | 40 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 60 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 40 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit |
| Motor Power KW | 11 kW at 220 to 230 V AC 50-60 Hz; 18.5 kW at 380 to 400 V AC 50-60 Hz; 22 kW at 415 V AC 50-60 Hz; 22 kW at 440 V AC 50-60 Hz; 22 kW at 500 V AC 50-60 Hz; 30 kW at 660 to 690 V AC 50-60 Hz |
| Poles Description | 3P |
| Pollution Degree | 3 |
| Contactor Application | Motor control Resistive load |
| Coil Technology | Without built-in suppressor module |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Device Presentation | Preassembled with reversing power busbar |
| Hold-In Power Consumption in VA | 13 VA 60 Hz cos phi 0.3 (at 68°F (20°C)) |
| Fire Resistance | 1562°F IEC 60695-2-1 |
| Minimum Switching Current | 5 mA (for signalling circuit) |
| Motor Power HP | 5 hp at 230/240 V AC 60 Hz for 1 phase motors; 10 hp at 230/240 V AC 60 Hz for 3 phase motors; 30 hp at 575/600 V AC 60 Hz for 3 phase motors; 10 hp at 200/208 V AC 60 Hz for 3 phase motors; 3 hp at 115 V AC 60 Hz for 1 phase motors; 30 hp at 460/480 V AC 60 Hz for 3 phase motors |
| IRMS Rated Making Capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 800 A at 440 V for power circuit conforming to IEC 60947 |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1; 80 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 80 A gG at Less than or Equal to 690 V coordination type 2 for power circuit |
| Climatic Withstand | IACS E10; IEC 60947-1 Annex Q category D |
| Inrush Power in VA | 140 VA 60 Hz cos phi 0.75 (at 68°F (20°C)) |
| Power Dissipation Per Pole | 2.4 W AC-3; 5.4 W AC-1; 2.4 W AC-3e |
| Product Or Component Type | Reversing contactor |
| Connections - Terminals | Control circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Control circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Control circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible with cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²)flexible with cable end; Control circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)solid; Control circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)solid; Power circuit EverLink BTR screw connectors 1 0.00 to 0.05 in² (1 to 35 mm²)flexible without cable end; Power circuit EverLink BTR screw connectors 2 0.00 to 0.04 in² (1 to 25 mm²)flexible without cable end; Power circuit EverLink BTR screw connectors 1 0.00 to 0.05 in² (1 to 35 mm²)flexible with cable end; Power circuit EverLink BTR screw connectors 2 0.00 to 0.04 in² (1 to 25 mm²)flexible with cable end; Power circuit EverLink BTR screw connectors 1 0.00 to 0.05 in² (1 to 35 mm²)solid; Power circuit EverLink BTR screw connectors 2 0.00 to 0.04 in² (1 to 25 mm²)solid |
| Package Quantity | 1 |
