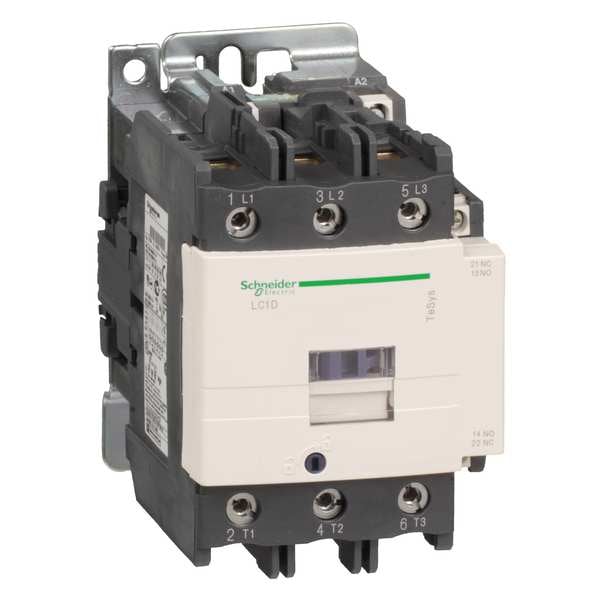

Contactador Magnético IEC, 3 Polos, 120 V CA, 95 A, Reversión: No
| Full Load Amps-Inductive | 95 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 125 A |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| Reversing | No |
| HP @ 1 Phase - 120V | 7 1/2 hp |
| Height | 5 in |
| HP @ 1 Phase - 240V | 15 hp |
| Width | 3.35 in |
| HP @ 3 Phase - 208V | 25 hp |
| HP @ 3 Phase - 240V | 30 hp |
| HP @ 3 Phase - 575V | 60 hp |
| Depth | 5.12 in |
| HP @ 3 Phase - 480V | 60 hp |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 |
| Auxiliary Contact Form | 1NO/1NC |
| Standards | BV, CCC, CSA, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, DNV-GL, EAC, EN/IEC 60947-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, IECEE CB Scheme, LROS, RINA, UL 60947-5-1, UL Listed, UL 60947-4-1 |
| Frame / Series / Class / Code | TeSys |
| Series | TeSys Deca |
| NEMA Size | Not Applicable |
| Rated Voltage | 690V AC |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Overvoltage Category | CAT III |
| Control Circuit Voltage Limits | Operational AC: 0.8 to 1.1 Uc (at -40 to 55°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 55°C 60 Hz), 1 to 1.1 Uc (at 55 to 70°C 50/60 Hz); Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz) |
| Working Height | Up to 9,842.52 ft |
| Non-Overlap Time | 1.5 msec |
| Impedance | 0.8 mOhm |
| Hold VA | 26 VA |
| Includes Protective Cover | Yes |
| IP Rating | IP20 |
| Mounts On | Plate, Rail |
| Max. Temperature | 850°C |
| Tightening Torque | 1.2 Nm (Control Circuit), 12 Nm (Power Circuit) |
| Watts Loss | 6 to 10W |
| Fuse Amps | 10 A (Signalling Circuit), 200 A (Type 1 Power Circuit), 160 A (Type 2 Power Circuit) |
| Rated Breaking Capacity | 1100 A @ 440V |
| Rated Short-Time Withstand Current | 1100 A (at 40°C for 1 s Power Circuit), 800 A (at 40°C for 10 s Power Circuit), 400 A (at 40°C for 1 min Power Circuit), 135 A (at 40°C for 10 min Power Circuit), 140 A (For 100 ms Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 100 A (For 1 s Signalling Circuit) |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Switching Current | 5 mA (Signalling Circuit) |
| Shock Resistance | 10 G for 11 ms (Contactor Closed), 8 G for 11 ms (Contactor Open) |
| Operating Time | 20 to 35 ms (Closing), 6 to 20 ms (Opening) |
| Rated Insulation Volts | 600/690V, 600/1000V |
| Vibration Resistance | 3 G (Contactor Closed), 2 G (Contactor Open) |
| Fire Rating | UL 94 V1 |
| Impulse Withstand Voltage | 8 kV |
| Features | Without Built-In Suppressor Module |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 125 A (at 60°C Power Circuit) |
| Rated Making Capacity | 1100 A @ 440V AC (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit) |
| Inrush VA | 245 VA |
| Operating Speed | 3600 cycles per hr |
| Max. Operating Watts | 25 kW (at 220 to 230V AC 50 Hz AC-3), 45 kW (at 380 to 400V AC 50 Hz AC-3), 45 kW (at 415 to 440V AC 50 Hz AC-3), 55 kW (at 500V AC 50 Hz AC-3), 45 kW (at 660 to 690V AC 50 Hz AC-3), 15 kW (at 400V AC 50 Hz AC-4), 25 kW (at 220 to 230V AC 50 Hz AC-3e), 45 kW (at 380 to 400V AC 50 Hz AC-3e), 45 kW (at 415 to 440V AC 50 Hz AC-3e), 55 kW (at 500V AC 50 Hz AC-3e), 45 kW (at 660 to 690V AC 50 Hz AC-3e) |
| Net Weight | 1.61 kg |
| Mechanical Durability | 4 Mcycles |
| Electrical Durability | 1.2 Mcycles (95 A AC-3, 1.3 Mcycles (125 A AC-1, 1.2 Mcycles (95 A AC-3e |
| Switching Voltage | 17 V (Signalling Circuit) |
| Application | Motor Control, Resistive Load |
| Electrical Connection | Screw Clamp Terminals |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Overall Width | 3.35 in |
| Number of Normally Open Main Contacts | 3 |
| Electrical Operating Durability | 1,200,000, 1,300,000 |
| Full Load Current - Resistive | 125 A |
| NEMA Enclosure Material | Not Applicable |
| Coil Voltage | 120V AC |
| Horsepower @ Three Phase - 600V AC | 60 HP |
| Reversing Capability | Non-Reversing |
| Horsepower @ Three Phase - 240V AC | 30 HP |
| Maximum Operating Temperature | 140 deg F |
| Full Load Current - Inductive | 95 A |
| Phase | Three |
| Horsepower @ Single Phase - 240V AC | 15 HP |
| Minimum Operating Temperature | -40 deg F |
| Overall Height | 5 in |
| Overall Depth | 5.12 in |
| Number of Auxillary Contacts | 2 |
| Contactor Style | IEC |
| Horsepower @ Three Phase - 480V AC | 60 HP |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Maximum Voltage Rating | 1,000 V AC |
| Mounting Style | DIN Rail, Plate |
| Includes Auxiliary Contacts | Yes |
| Frequency | 50/60 Hz |
| Terminal Connection Type | Screw Clamp Terminals |
| Horsepower @ Single Phase - 120V AC | 7.5 HP |
| Mechanical Operating Durability | 4,000,000 |
| Embedded Surge Suppressor | No |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Three Phase - 208V AC | 30 HP |
| Package Quantity | 1 |
