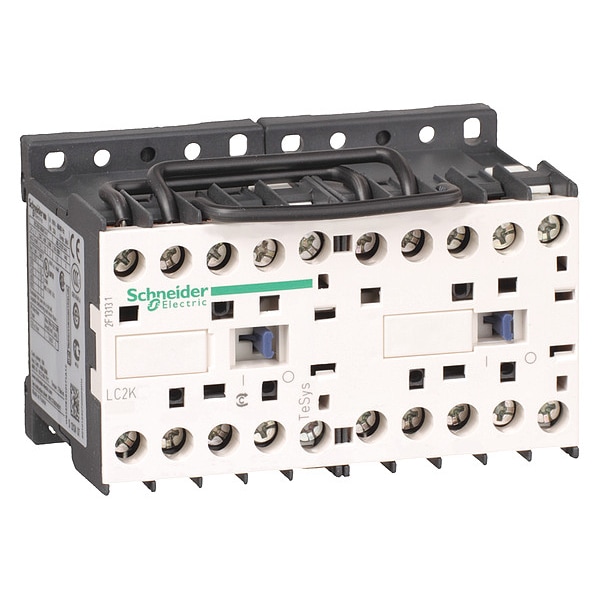

Contacto magnético IEC, 3 polos, 24 V CA, 9 A, Reversión: Sí
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 9 A |
| Action | Reversing |
| Full Load Amps-Resistive | 20 A |
| Number of Poles | 3 |
| Coil Volts | 24 V AC |
| Reversing | Yes |
| Height | 2.28 in |
| Width | 3.54 in |
| Depth | 2.24 in |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | None |
| Hz | 50/60 |
| Auxiliary Contact Form | 1NO |
| Series | TeSys K |
| NEMA Size | Not Applicable |
| Standards | BS 5424, CSA, IEC 60947, NF C 63-110, UKCA, UL Listed, VDE 0660 |
| Frame / Series / Class / Code | TeSys |
| Fuse Amps | 25 A (Power Circuit), 10 A (Signalling Circuit) |
| Max. Operating Watts | 2.2 kW (at 220 to 230V AC 50/60 Hz), 4 kW (at 380 to 415VAC 50/60 Hz), 4 kW (at 440V AC 50/60 Hz), 4 kW (at 480V AC 50/60 Hz), 4 kW (at 500 to 600V AC 50/60 Hz), 4 kW (at 660 to 690V AC 50/60 Hz) |
| Electrical Connection | Screw Clamp Terminals |
| Fire Rating | UL 94 V1, NF F 16-101, NF F 16-102 |
| Switching Voltage | 17 V (Signalling Circuit) |
| Electrical Durability | 0.18 Mcycles (20 A, AC-1, Less than 440 V); 1.3 Mcycles (9 A, AC-3, Less than 440 V); 1.3 Mcycles (9 A, AC-3e, Less than 440 V) |
| Operating Speed | 3600 cycles per hr |
| Rated Voltage | 690V AC |
| Operating Time | 10 to 20 ms (Coil Energisation and NO Closing), 10 to 20 ms (Coil De-Energisation and NO Opening) |
| Features | Preassembled with Reversing Power Busbar |
| Switching Current | 5 mA (Signalling Circuit) |
| Hold VA | 4.5 VA |
| Inrush VA | 30 VA |
| Rated Short-Time Withstand Current | 90 A (at 50°C for 1 s Power Circuit), 85 A (at 50°C for 5 s Power Circuit), 80 A (at 50°C for 10 s Power Circuit), 60 A (at 50°C for 30 s Power Circuit), 45 A (at 50°C for 1 min Power Circuit), 40 A (at 50°C for 3 min Power Circuit), 80 A (For 1 s Signalling Circuit), 90 A (For 500 ms Signalling Circuit), 110 A (For 100 ms Signalling Circuit), 20 A (at 50°C for 15 min Power Circuit) |
| Impedance | 3 mOhm |
| Thermal Amperage | 20 A (at 50°C Power Circuit), 10 A (at 50°C Signalling Circuit) |
| Control Circuit Voltage Limits | Operational: 0.8 to 1.15 Uc (at 50°C), Drop-Out: 0.2 to 0.75 Uc (at 50°C) |
| Overvoltage Category | CAT III |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Rated Insulation Volts | 600/690V |
| Shock Resistance | 10 G for 11 ms (on X axis with Contactor Closed), 15 G for 11 ms (on Y and Z axis with Contactor Closed), 6 G for 11 ms (on X axis with Contactor Open), 10 G for 11 ms (on Y and Z axis with Contactor Open) |
| IP Rating | IP20 |
| Watts Loss | 1.3W |
| Tightening Torque | 0.8 to 1.3 Nm |
| Mechanical Durability | 5 Mcycles |
| Environmental Attributes | Mercury Free, Toxic Heavy Metal Free |
| Rated Breaking Capacity | 110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V |
| Mounts On | Plate, Rail |
| Net Weight | 0.39 kg |
| Application | Motor Control, Resistive Load |
| Signalling Circuit Frequency | Less Than 400 Hz |
| Working Height | 6,561.68 ft |
| Rated Making Capacity | 110 A |
| Impulse Withstand Voltage | 8 kV |
| Overall Height | 2.28 in |
| NEMA Enclosure Rating | No Enclosure |
| Terminal Connection Type | Screw Clamp Terminals |
| Overall Depth | 2.24 in |
| NEMA Enclosure Material | Not Applicable |
| Resistance Properties | Insulation Resistant |
| Maximum Voltage Rating | 690 V AC |
| Full Load Current - Resistive | 20 A |
| Mechanical Operating Durability | 5,000,000 |
| Maximum Operating Temperature | 122 deg F |
| Reversing Capability | Reversing |
| Mounting Style | DIN Rail, Plate |
| Overall Width | 3.54 in |
| Full Load Current - Inductive | 9 A |
| Includes Auxiliary Contacts | Yes |
| Embedded Surge Suppressor | No |
| Electrical Operating Durability | 1,300,000, 180,000 |
| Minimum Operating Temperature | -13 deg F |
| Number of Auxillary Contacts | 1 |
| Contactor Style | IEC |
| Frequency | 50/60 Hz |
| Number of Normally Open Main Contacts | 3 |
| Coil Voltage | 24V AC |
| Heat Dissipation | 1.3 W |
| Ambient Air Temperature For Operation | -13 to 122°F (-25 to 50°C) |
| Control Circuit Type | AC 50/60 Hz |
| Mechanical Robustness | Shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27; Shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27; Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27; Shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27; Shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27; Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27; Vibrations contactor closed4 Gn, 5 to 300 Hz IEC 60068-2-6; Vibrations contactor opened2 Gn, 5 to 300 Hz IEC 60068-2-6 |
| Auxiliary Contact Composition | 1 NO |
| Motor Power KW | 2.2 kW 220 to 230 V AC 50/60 Hz; 4 kW 380 to 415 V AC 50/60 Hz; 4 kW 440/690 V AC 50/60 Hz |
| Insulation Resistance | Greater than 10 MOhm for signalling circuit |
| Flame Retardance | V1 conforming to UL 94; Requirement 2 conforming to NF F 16-101; Requirement 2 conforming to NF F 16-102 |
| Rated Short Time Withstand Current | 90 A 122°F (50°C) - 1 s for power circuit; 85 A 122°F (50°C) - 5 s for power circuit; 80 A 122°F (50°C) - 10 s for power circuit; 60 A 122°F (50°C) - 30 s for power circuit; 45 A 122°F (50°C) - 1 min for power circuit; 40 A 122°F (50°C) - 3 min for power circuit; 20 A 122°F (50°C) - Greater than or Equal to 15 min for power circuit; 80 A - 1 s for signalling circuit; 90 A - 500 ms for signalling circuit; 110 A - 100 ms for signalling circuit |
| Auxiliary Contacts Type | Instantaneous 1 NO |
| IP Degree Of Protection | IP20 VDE 0106 |
| Mounting Support | Rail |
| Minimum Switching Current | 5 mA (for signalling circuit) |
| IRMS Rated Making Capacity | 110 A AC for power circuit conforming to IEC 60947; 110 A AC for signalling circuit conforming to IEC 60947 |
| Utilisation Category | AC-3; AC-3e; AC-4; AC-1 |
| Conventional Free Air Thermal Current | 20 A (at 140°F (60°C)) for power circuit; 10 A (at 122°F (50°C)) for signalling circuit |
| Connections - Terminals | screw clamp terminals 1 0.00 to 0.01 in² (1.5 to 4 mm²)solid; screw clamp terminals 1 0.00 to 0.01 in² (0.75 to 4 mm²)flexible without cable end; screw clamp terminals 1 0.00 to 0.00 in² (0.34 to 2.5 mm²)flexible with cable end; screw clamp terminals 2 0.00 to 0.01 in² (1.5 to 4 mm²)solid; screw clamp terminals 2 0.00 to 0.01 in² (0.75 to 4 mm²)flexible without cable end; screw clamp terminals 2 0.00 to 0.00 in² (0.34 to 1.5 mm²)flexible with cable end |
| Control Circuit Voltage | 24 V AC 50/60 Hz |
| Operating Altitude | 6561.68 ft (2000 m) without derating |
| Maximum Operating Rate | 3600 cyc/h |
| Product Certifications | CB Scheme; CCC; UL; CSA; EAC; CE; UKCA |
| Rated Operational Current | 9 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 9 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit; 20 A (at Less than 140°F (60°C)) at Less than or Equal to 690 V AC AC-1 for power circuit |
| Product Or Component Type | Reversing contactor |
| Inrush Power in VA | 30 VA (at 68°F (20°C)) |
| Ambient Air Temperature For Storage | -58 to 176°F |
| Device Application | Control |
| Rated Operational Voltage | Power circuit 690 V AC 50/60 Hz; Signalling circuit Less than or Equal to 690 V AC 50/60 Hz |
| Non Overlap Distance | 0.02 in |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Poles Description | 3P |
| Interlocking Type | Mechanical |
| Protective Treatment | TC IEC 60068 TC DIN 50016 |
| Hold-In Power Consumption in VA | 4.5 VA (at 68°F (20°C)) |
| Average Impedance | 3 mOhm - Ith 20 A 50 Hz for power circuit |
| Contactor Application | Motor control Resistive load |
| Associated Fuse Rating | 25 A gG at Less than or Equal to 440 V for power circuit; 25 A aM for power circuit; 10 A gG for signalling circuit conforming to IEC 60947; 10 A gG for signalling circuit conforming to VDE 0660 |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Power Pole Contact Composition | 3 NO |
| Rated Insulation Voltage | Power circuit 600 V UL 508; Power circuit 690 V IEC 60947-4-1; Signalling circuit 690 V IEC 60947-4-1; Signalling circuit 690 V IEC 60947-5-1; Signalling circuit 600 V UL 508; Power circuit 600 V CSA C22.2 No 14; Signalling circuit 600 V CSA C22.2 No 14 |
| Package Quantity | 1 |
